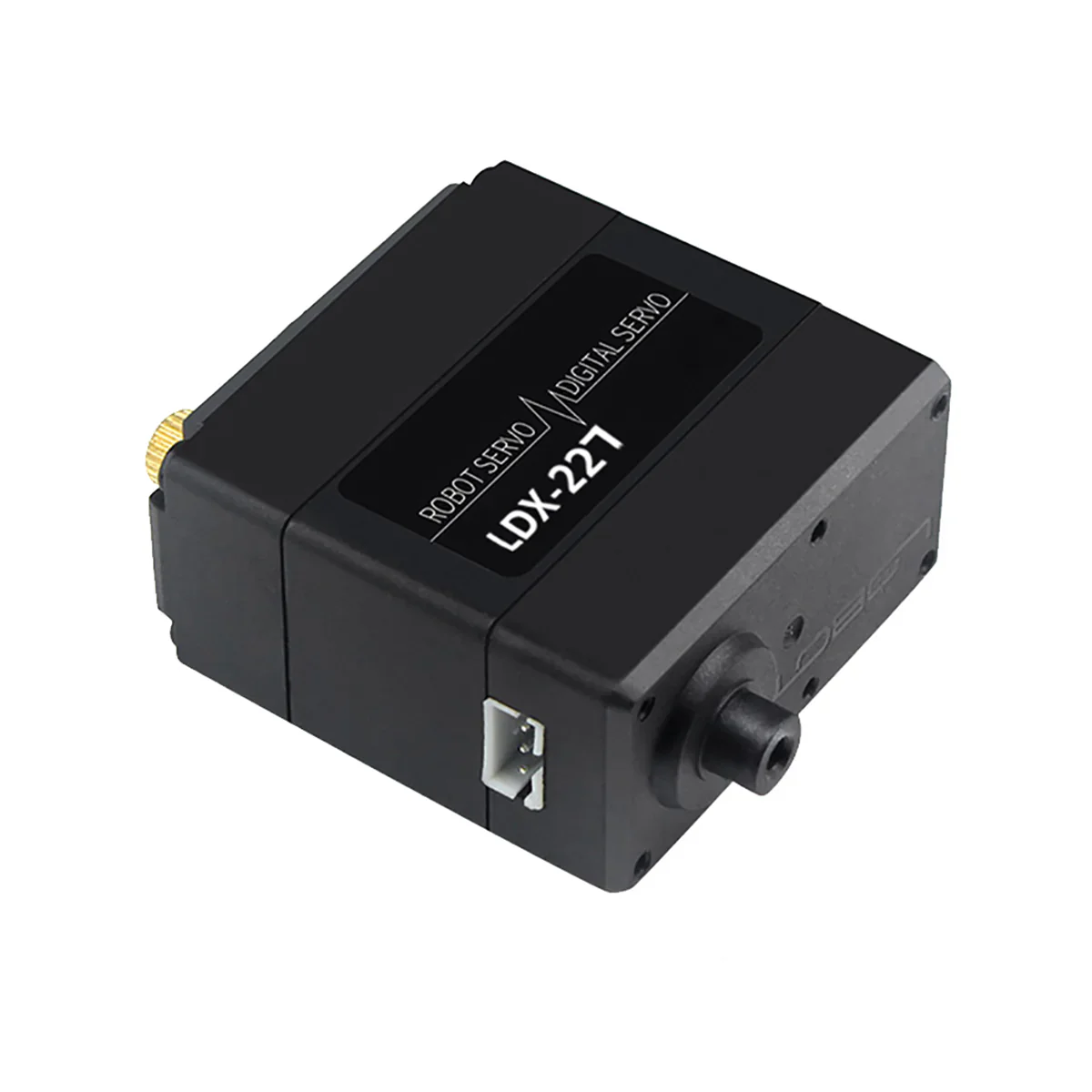

Hiwonder LDX-227 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot(Control Angle 270)

Hiwonder LDX-227 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot (Control Angle 270)

Hiwonder LDX-227 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing for the robot. The control angle is 270 degrees.





Feature

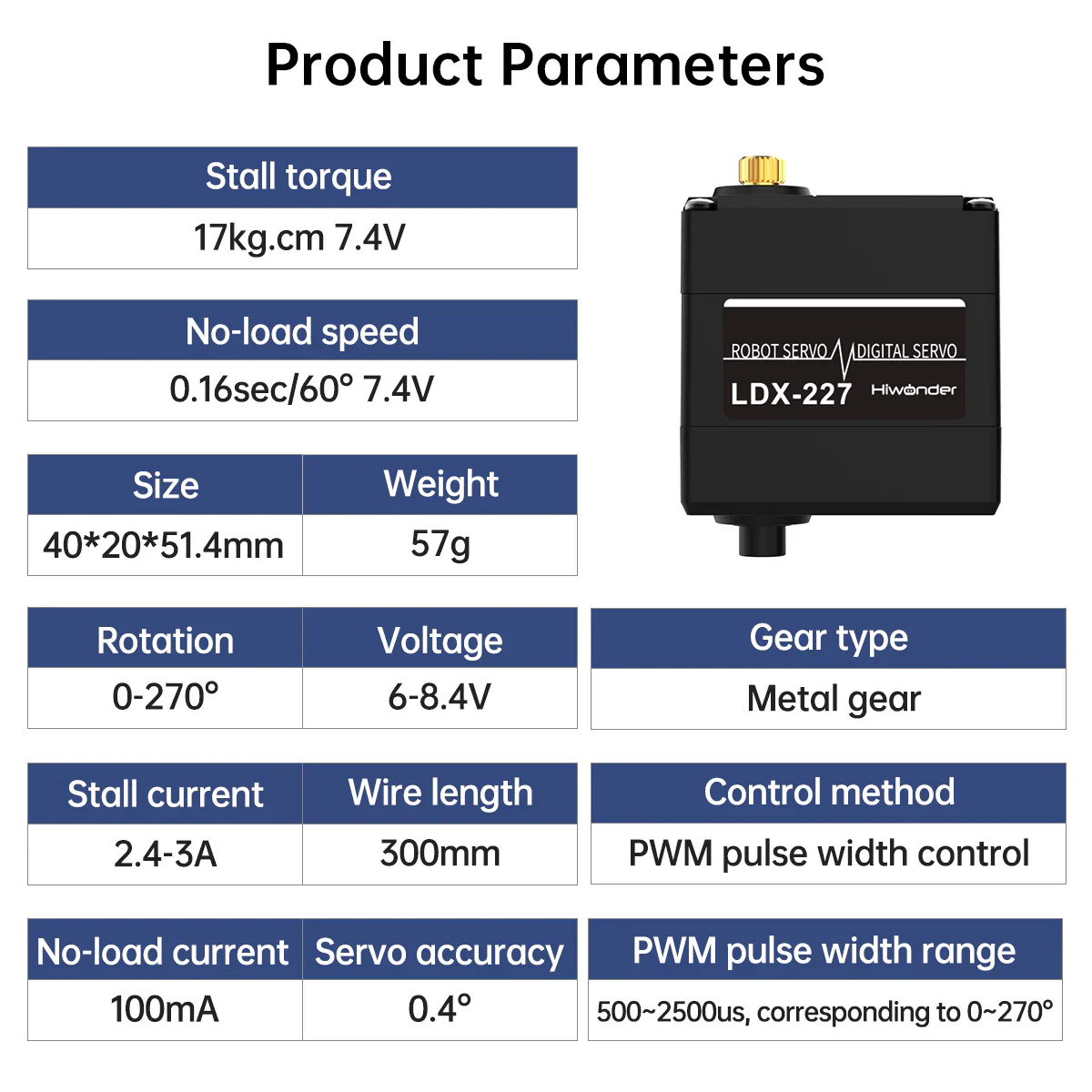

> 17kg large torque. 15 kg·cm 6V; 17 kg·cm 7.4V

> Use high-precision potentiometer in a new design

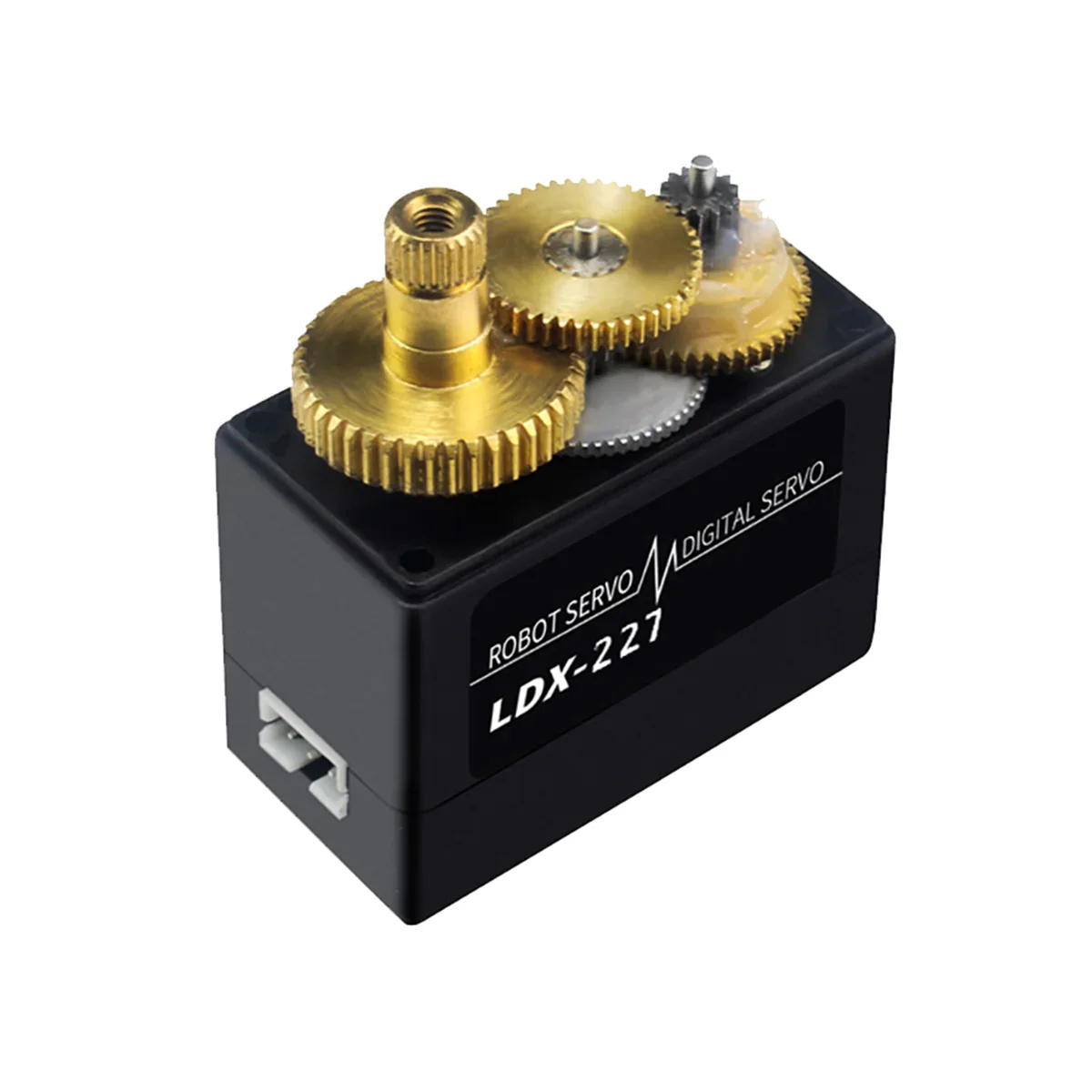

> Full metal gear significantly improves servo’s accuracy and extends its service time

> Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing

> Accuracy and linearity have been greatly improved Accurate movement can help you build up robots

> Convenient plug-in wire. It is very convenient for you to replace the servo, and the wiring will become much easier

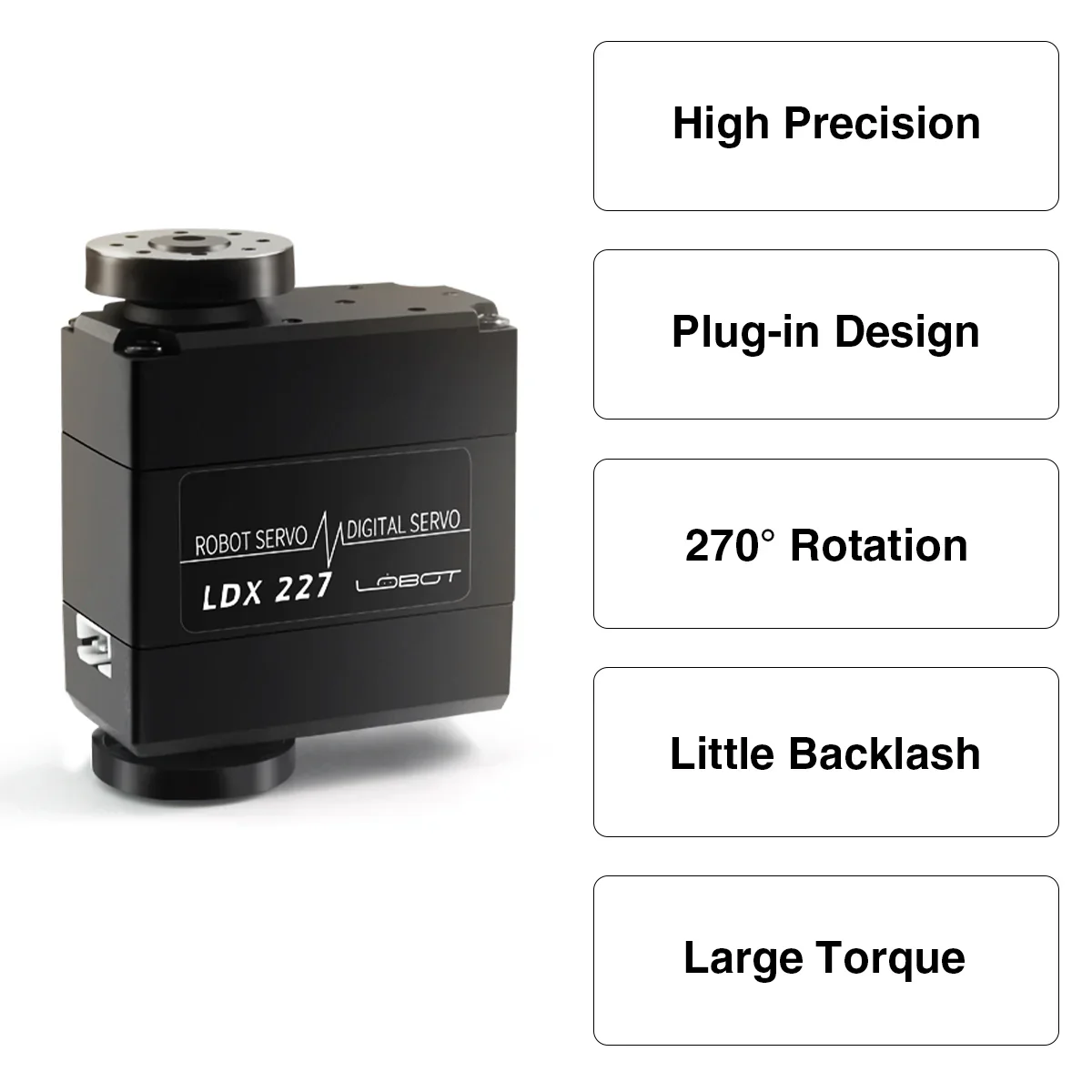

High Precision Digital Servo

Simple Wiring



270° Rotation

17kg Large Torque

All Metal Gear

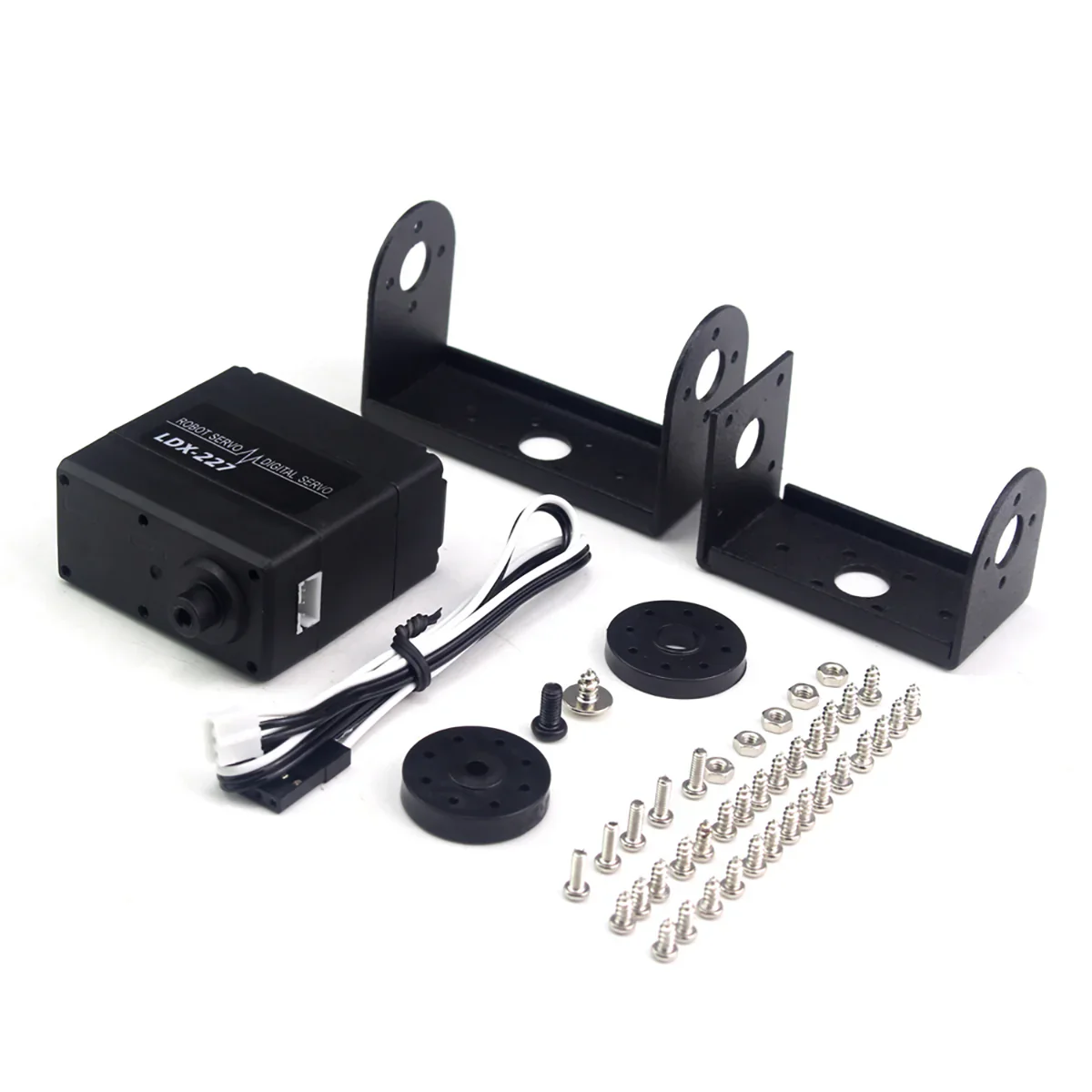

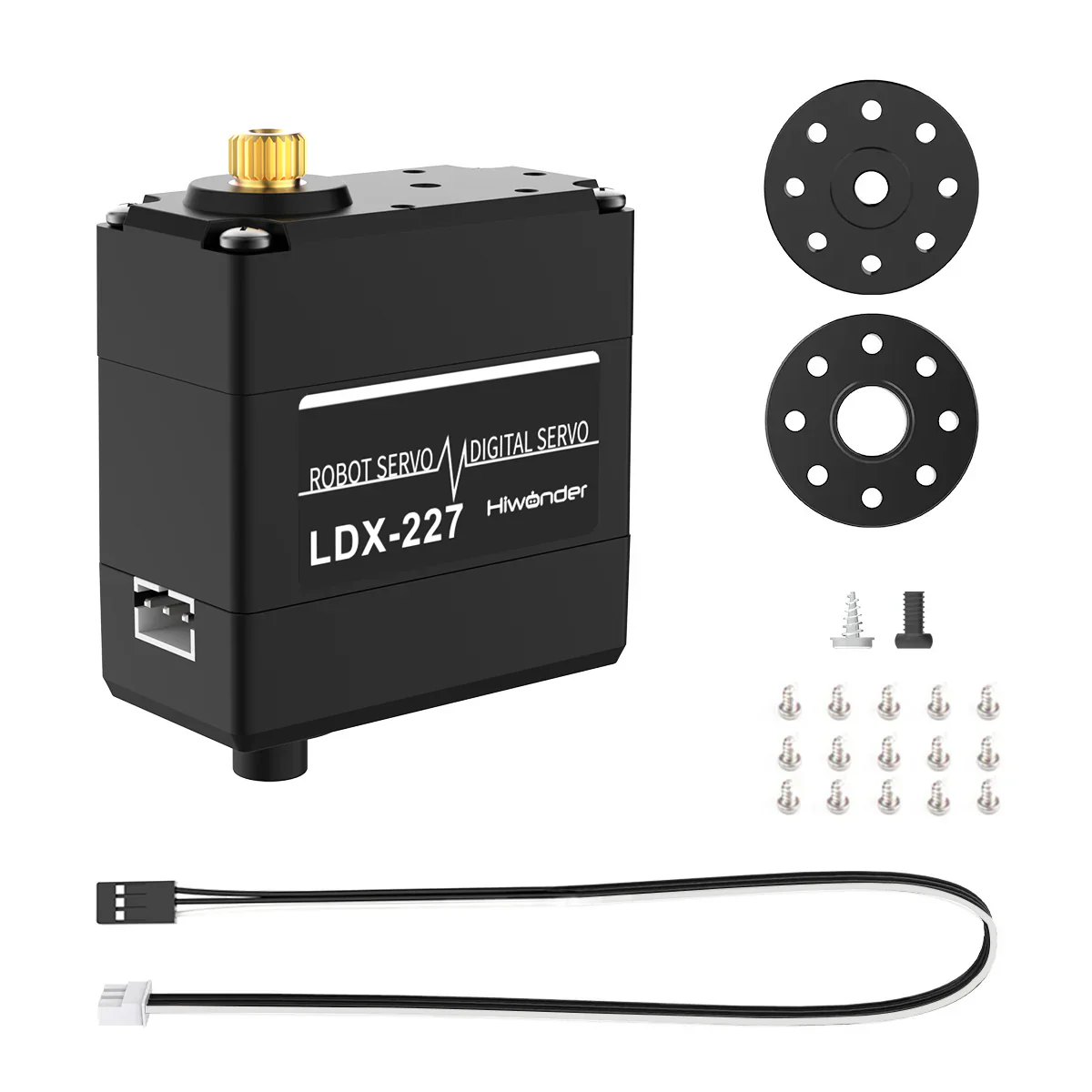

Packing List

1* Digital servo
1* 30cm servo wire
1* primary servo horn (4mm/0.157in thick)
1* Assistant servo horn (2mm/0.078in thick)
15* M2*5 self-tapping screws

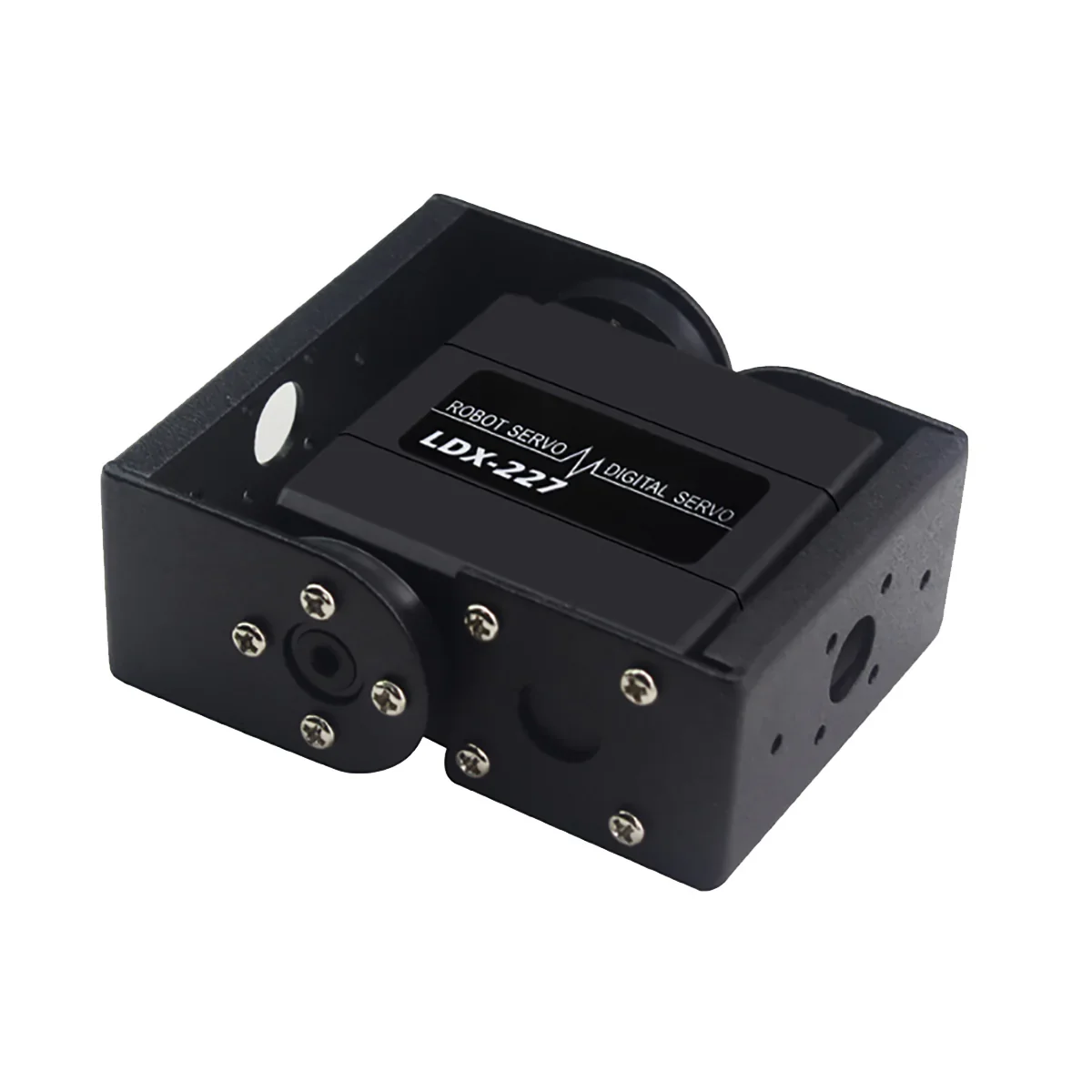

2* Bracket





Video
