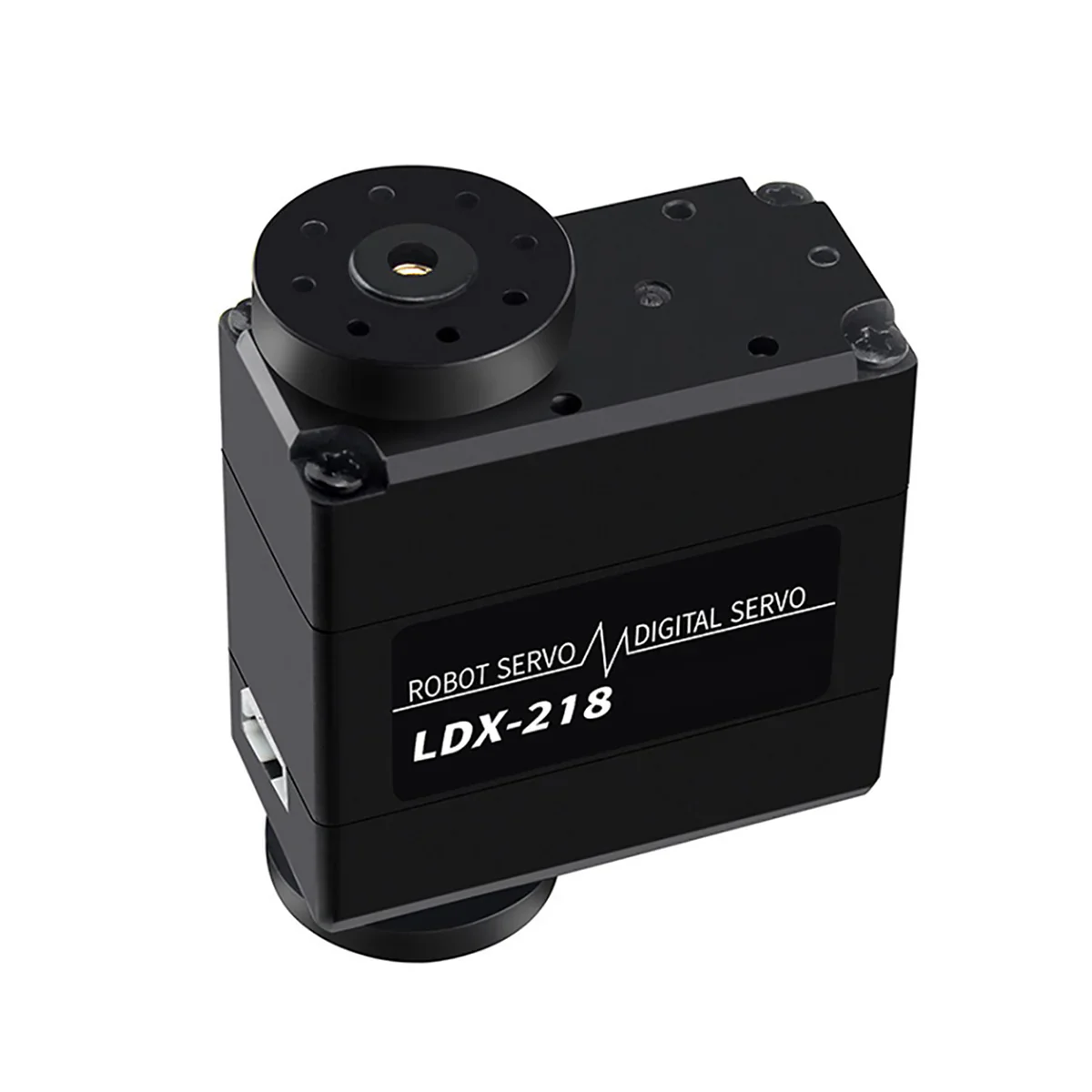

Hiwonder LDX-218 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot

Hiwonder LDX-218 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot (Control Angle 180)

Hiwonder LDX-218 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing for the robot. The control angle is 180 degrees.

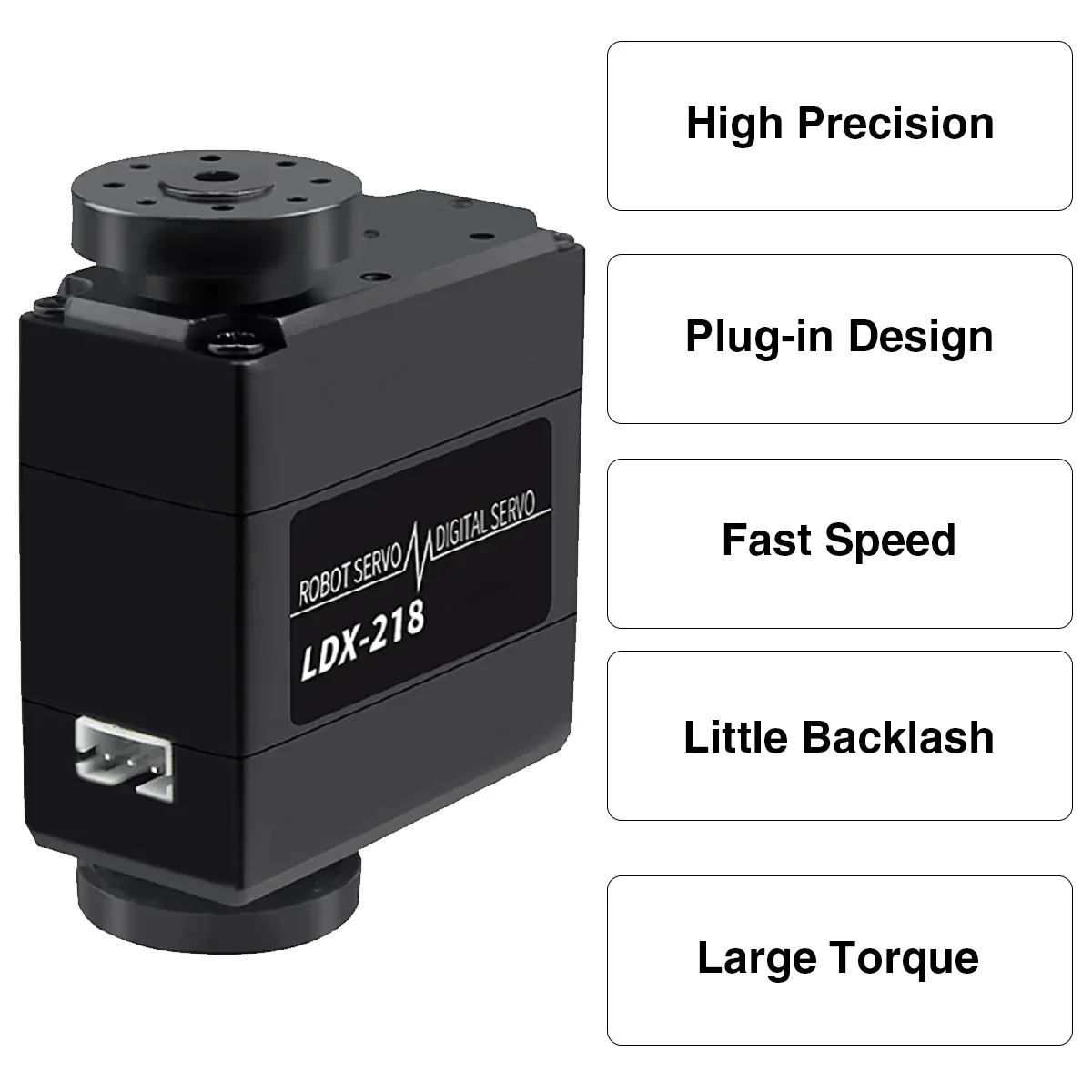

Feature

> 20kg large torque.

> Full metal gear significantly improves servo’s accuracy and extends its service time

> Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing (support role)

> Convenient plug-in wire. In robots making the process, it is very convenient for you to replace the servo, and the wiring will become much easier

> Use high-precision potentiometer with a new design. Accuracy and linearity have been greatly improved! Accurate movement can help you build up robots



Imported Potentiometer

Simple Wiring





180° Rotation

17kg Large Torque

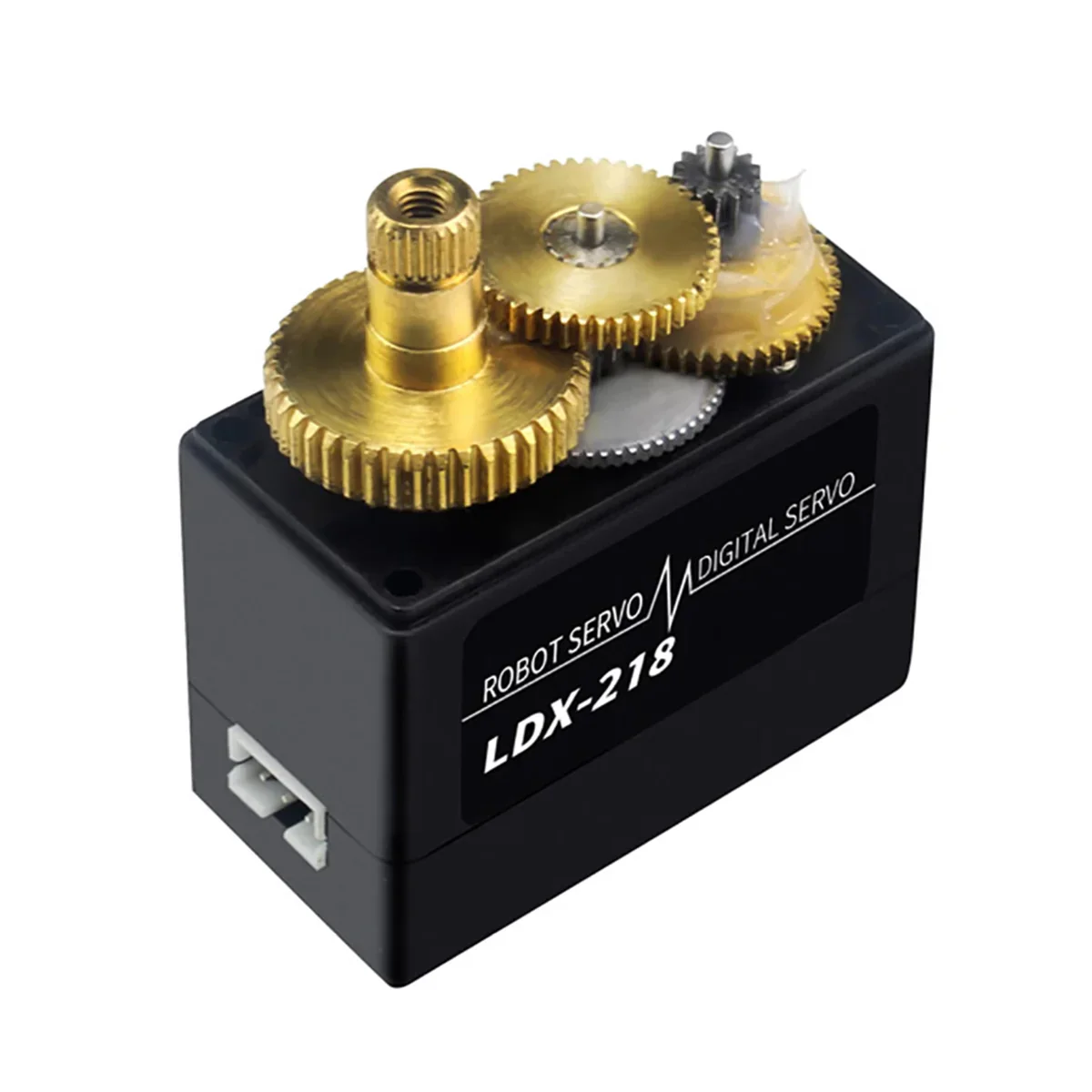

All Metal Gear

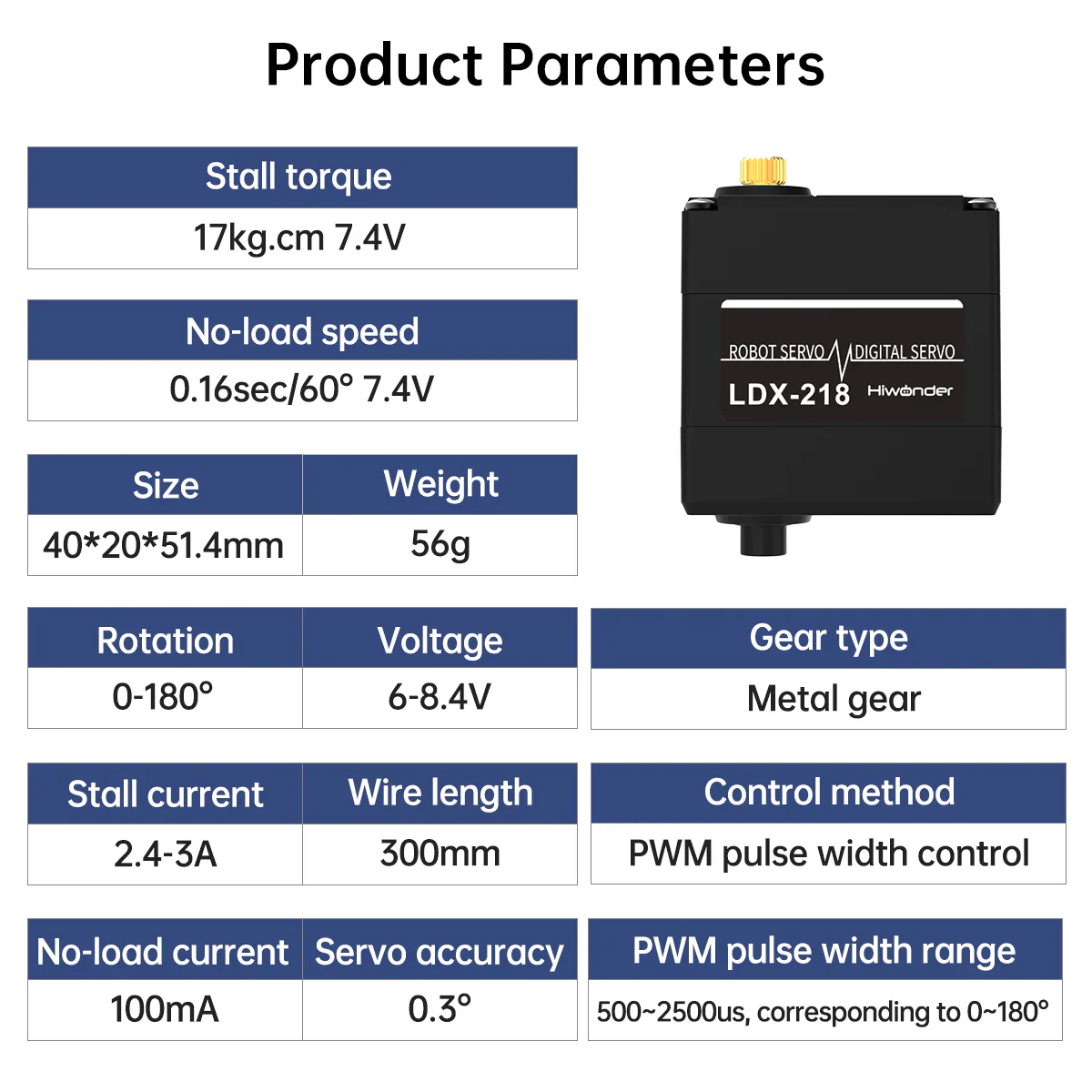

Specifications

LDX-218 Specifications
Weight	56g (1.97OZ)

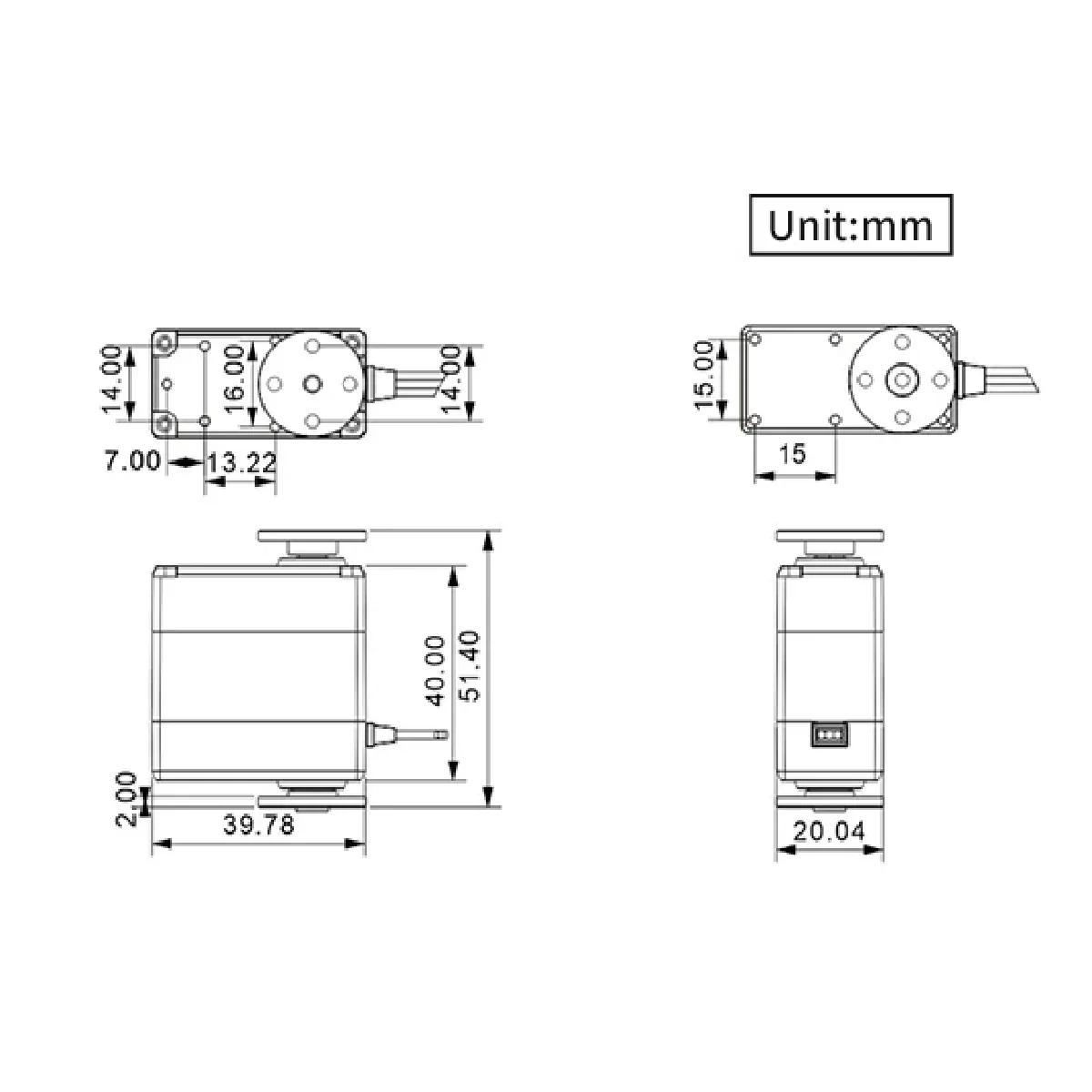

Dimension	40mm × 20mm × 51.4mm (1.57in × 0.78in × 2.02in)
Speed	0.16sec/60° (7.4V)
Accuracy	0.3°
Torque	15 kg·cm (208 oz·in) @6V; 17 kg·cm (236 oz·in) @7.4V
Working Voltage	6–8.4V
Min Working Current	1A
No-load Current	100mA
Spline	25T (6mm diameter)

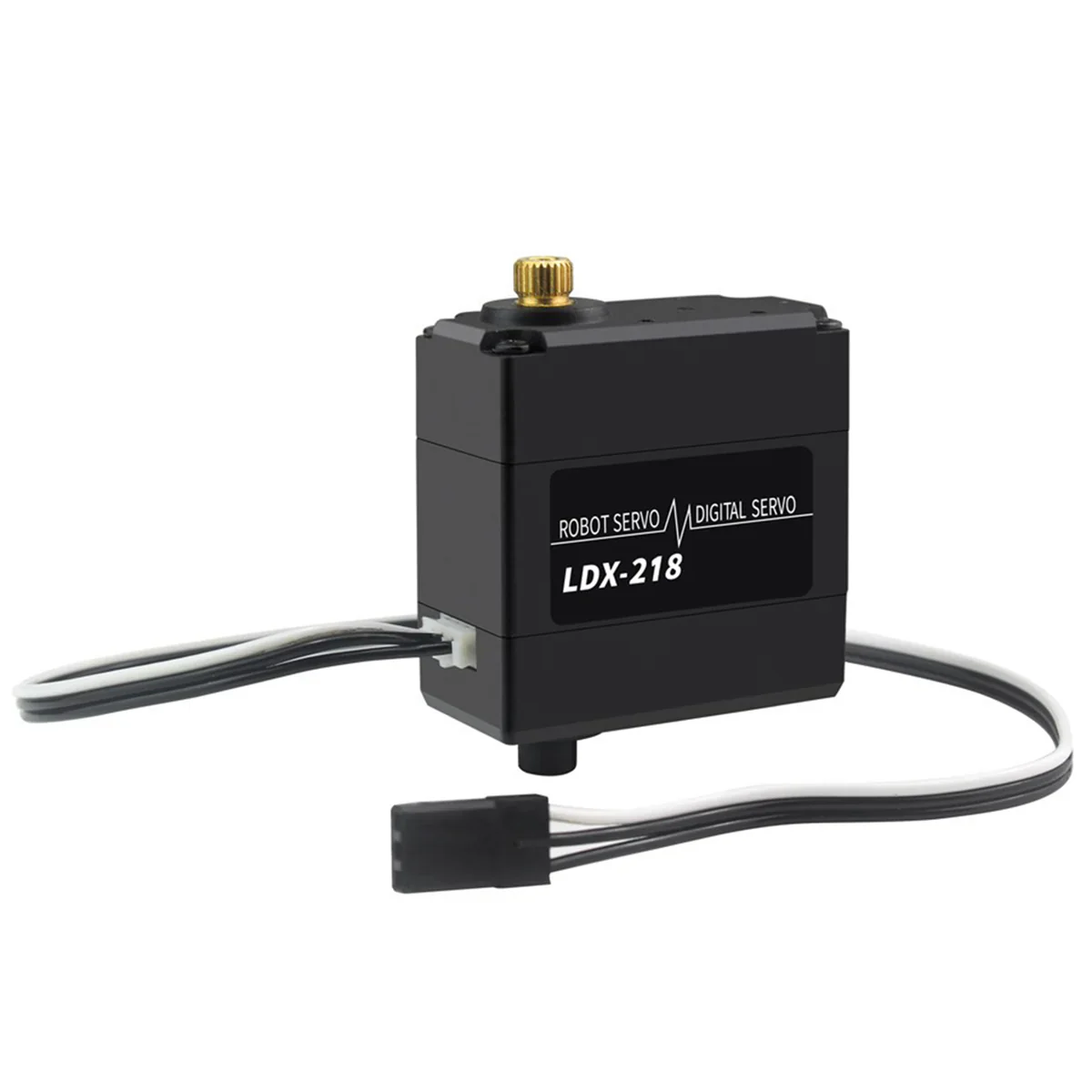

Default Wire	30cm (13.78 inch) in length
Control Method	PWM
Pulse Width	500~2500µs to (0~180°)
Pulse Period	20ms
Package List	1× Digital Servo 1× 30cm Servo Wire 1× Primary Servo Horn (4mm / 0.157in thick) 1× Assistant Servo Horn (2mm / 0.078in thick) 15× M2×5 Self-Tapping Screws 2× Bracket

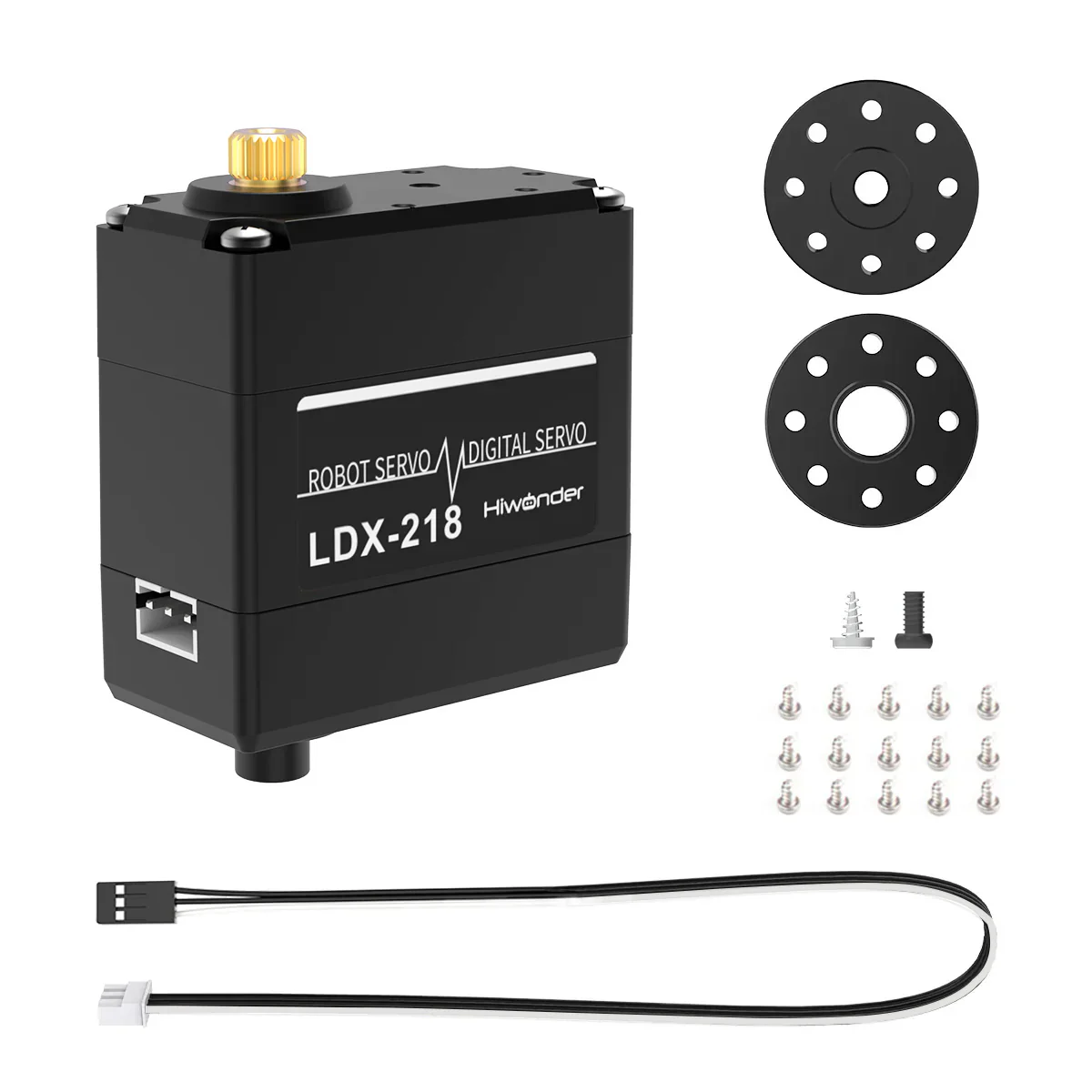

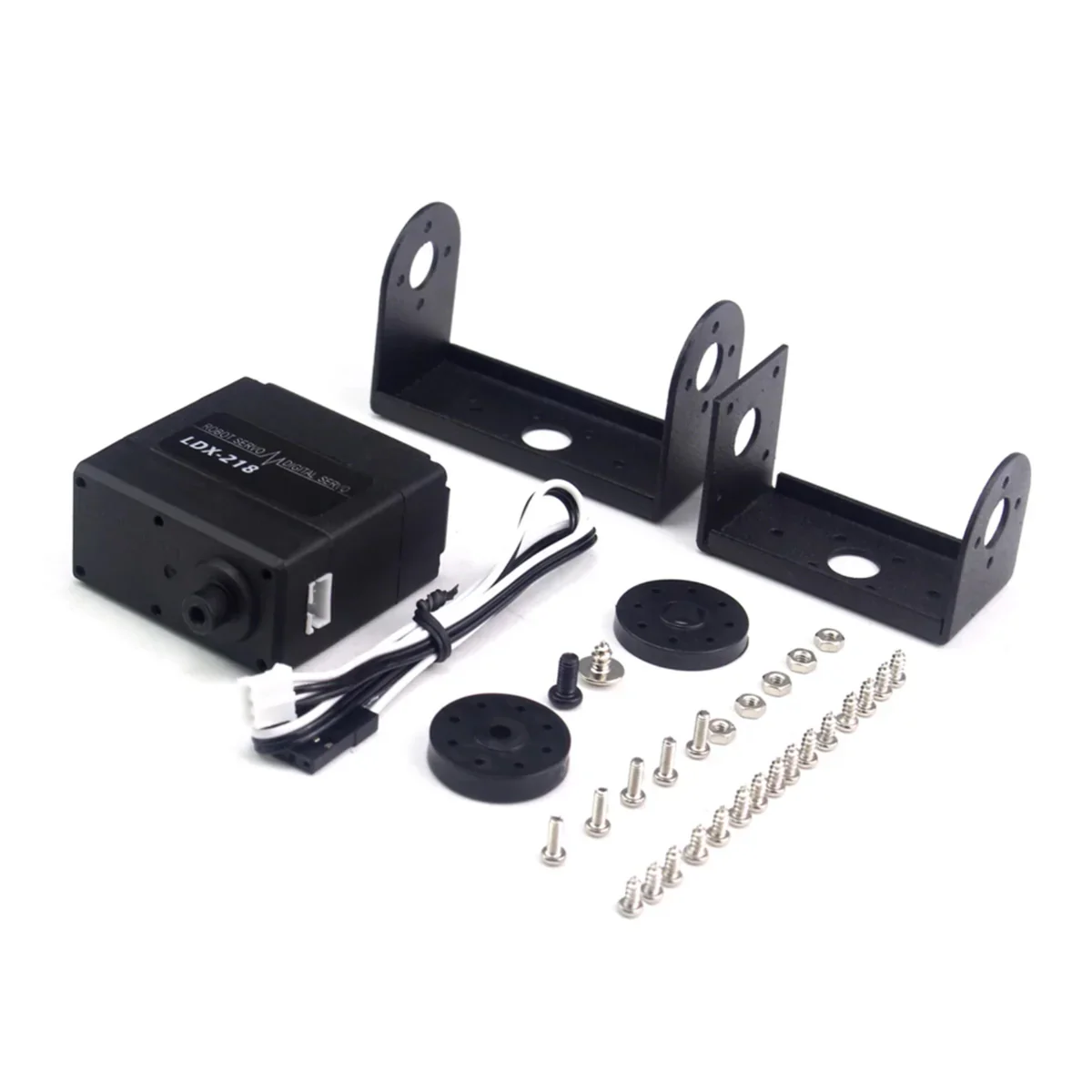

Packing List

1* digital servo
1* 30cm servo wire
1* primary servo horn (4mm/0.157in thick)
1* assistant servo horn (2mm/0.078in thick)
15* M2*5 self-tapping screws

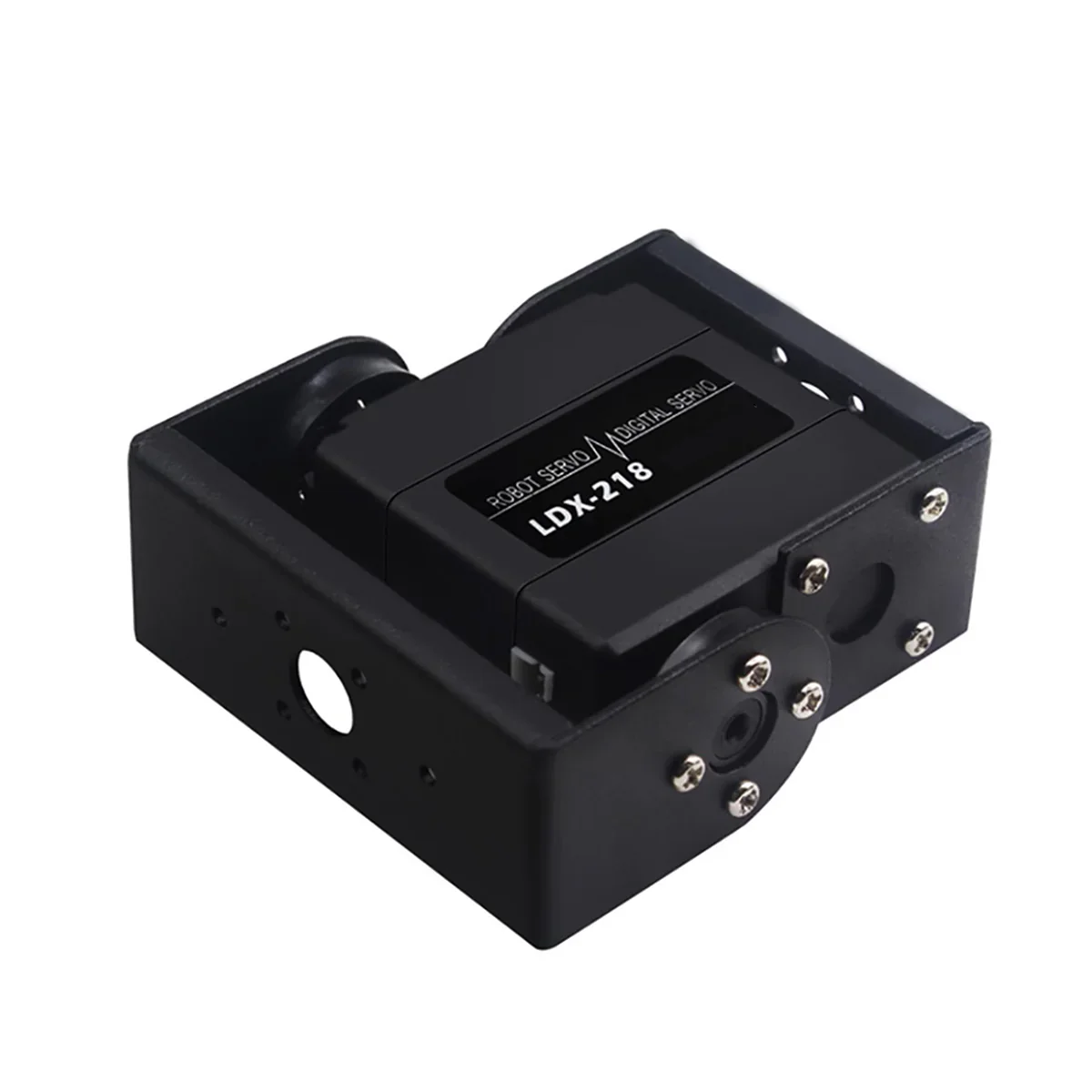

2* servo bracket
