High Precision Industrial Robot Arm with Planetary Stepper Motors

This is a high precision Industrial Robot Arm with 500g load capacity. This desktop robot arm only weighs 3.6 Kgs, and has planetary stepper motors with high precision optical encoders, that enable unprecedented accuracy of movement.

The on-board controller provides reverse voltage protection, overcurrent protection, short-circuit protection, and CAN operation. With 4-way LV8731V stepper motor driver, you can expand the robot arms capabilities as per your need.

Features:

Mechanical arm

• All aluminum alloy manipulator body
• MS36 planetary deceleration stepper motor
• 500 line AB phase photoelectric encoder
• Aluminum alloy coupling
• Bearings

Electric control

• STM32F405RG controller (integrated IMU, CAN, etc.)
• Four-channel LV8731V drive module
• power transfer
• OLED display
• 12V5A Power Supply
• Data Cable

Manipulator

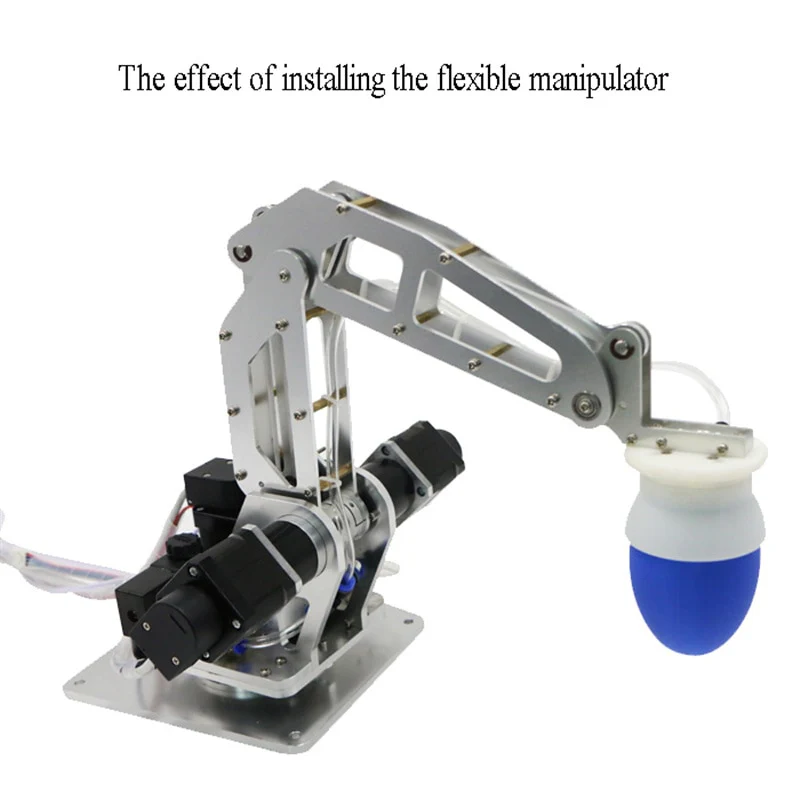

• Flexible manipulator

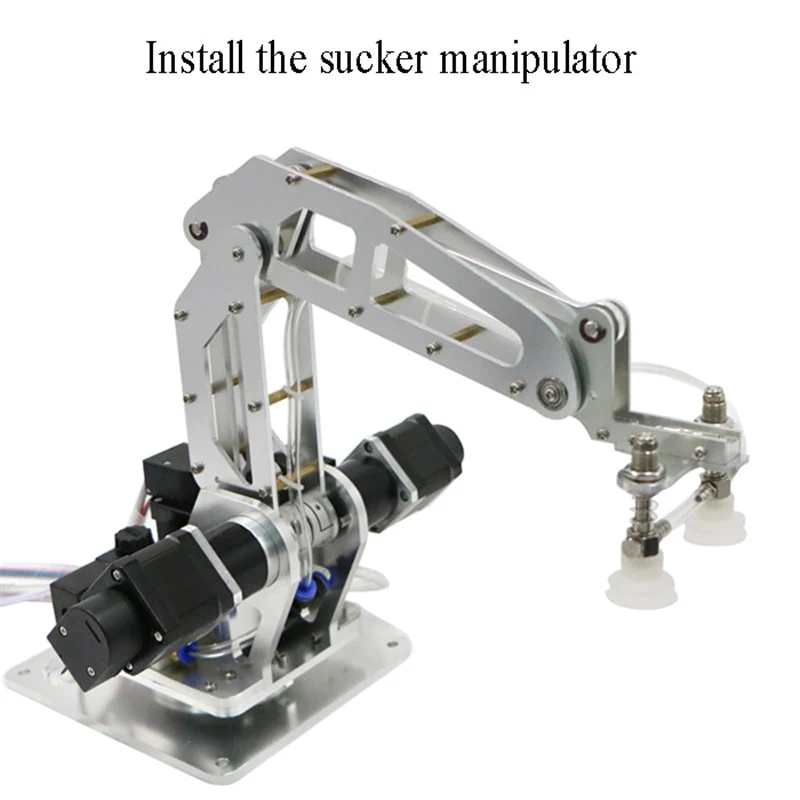

• or double suction disc manipulator
• or three finger manipulator
• air pump
• Electromagnetic valve
• Connectors
