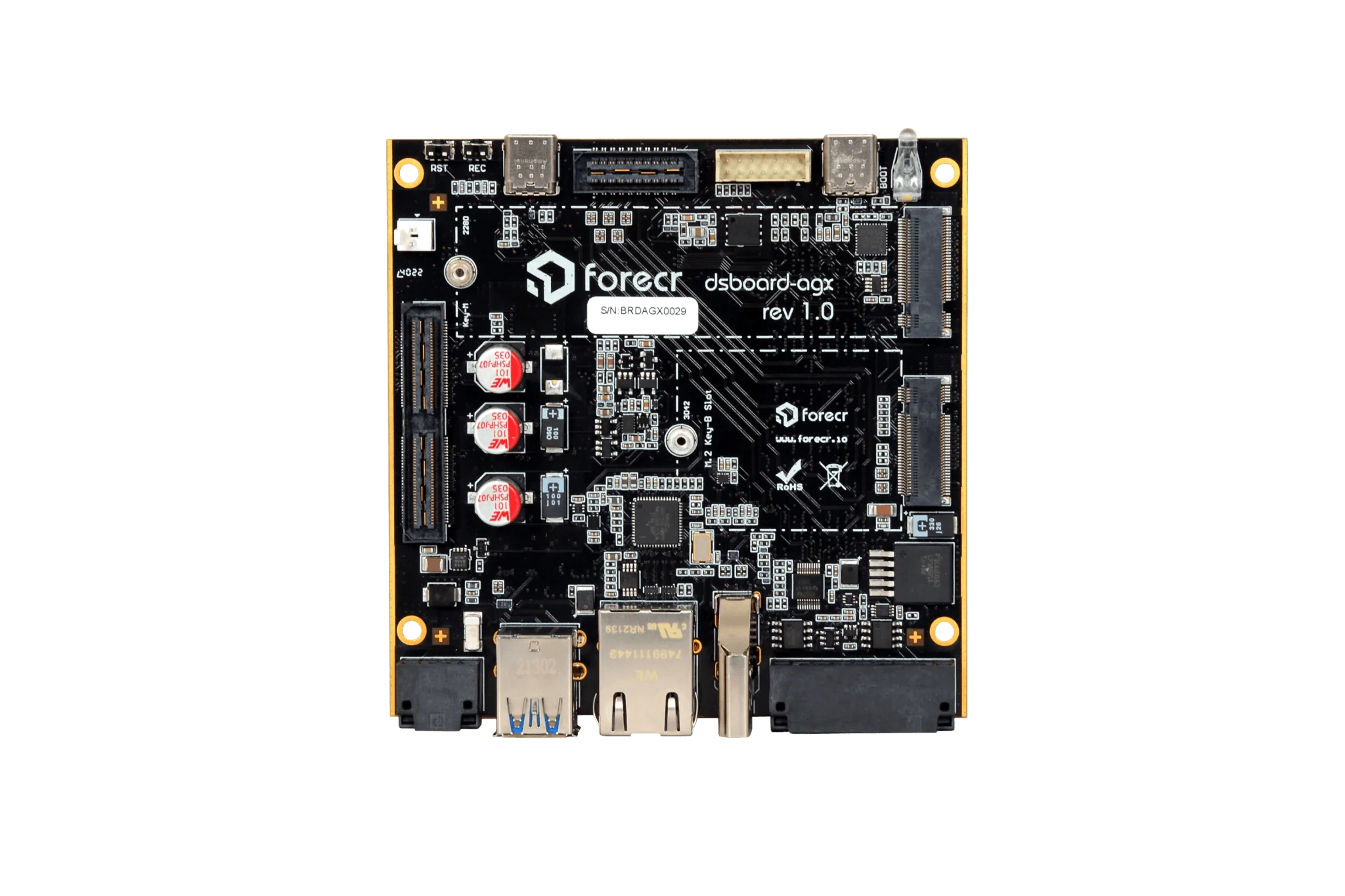

Forecr NVIDIA Jetson AGX Orin Carrier Board - DSBOARD-AGX
Industrial Grade Carrier Board for NVIDIA Jetson AGX Orin
DSBOARD-AGX
Robust carrier board for supercomputer level edge Edge AI applications with multiple MIPI CSI-2 camera requirements
Important References:
-
Datasheet
- Installation Instructions
- Getting Started Guide
- Package Includes - Carrier Board.
- AGX ORIN Module is NOT INCLUDED.
TOP PERFORMANCE ON AI DEPLOYMENTS
DSBOARD-AGX is a high-performance industrial level carrier board for NVIDIA® Jetson™ AGX ORIN Xavier™ processor.
The NVIDIA® Jetson AGX Orin™ modules deliver up to 275 TOPS of AI performance with power configurable between 15W and 60W. This gives you up to 8X the performance of Jetson AGX Xavier™ in the same compact form factor for robotics and other autonomous machine use cases.
Technical Specifications
| SUPPORTED MODULES |
NVIDIA Jetson AGX Orin 32GB NVIDIA Jetson AGX Orin 64G |
| MEMORY | 32GB/64GB 256-bit LPDDR4x |
| GRAPHIC INTERFACES | 1x HDMI 2.0 (max resolution 3840x2160) |
| INTERFACES |
1x Gigabit Ethernet 3x USB 3.1 1x CAN Bus 1x RS232/422/485 2xDigital In/3x Digital Out 1x USB 2.0 (Debug UART) |
| WIRELESS COMMUNICATION | Optional M.2 Key-E Cards |
| POWER SUPPLY | 18-32 VDC |
|
INTERNAL EXTENSION SOCKETS |
1x M.2 Key M (PCIe Gen4 x4) |
| INTERNAL MASS STORAGE |
32GB/64GB eMMC 5.1 Flash 1x MicroSD Card |
| AMBIENT CONDITIONS | -40°C … +85°C |
| FORM FACTOR / DIMENSIONS | 100 mm x 100 mm |
| OPERATING SYSTEMS | Ubuntu Linux 20.04 |
Original: $677.31
-70%$677.31
$203.19
Description
Industrial Grade Carrier Board for NVIDIA Jetson AGX Orin
DSBOARD-AGX
Robust carrier board for supercomputer level edge Edge AI applications with multiple MIPI CSI-2 camera requirements
Important References:
-
Datasheet
- Installation Instructions
- Getting Started Guide
- Package Includes - Carrier Board.
- AGX ORIN Module is NOT INCLUDED.
TOP PERFORMANCE ON AI DEPLOYMENTS
DSBOARD-AGX is a high-performance industrial level carrier board for NVIDIA® Jetson™ AGX ORIN Xavier™ processor.
The NVIDIA® Jetson AGX Orin™ modules deliver up to 275 TOPS of AI performance with power configurable between 15W and 60W. This gives you up to 8X the performance of Jetson AGX Xavier™ in the same compact form factor for robotics and other autonomous machine use cases.
Technical Specifications
| SUPPORTED MODULES |
NVIDIA Jetson AGX Orin 32GB NVIDIA Jetson AGX Orin 64G |
| MEMORY | 32GB/64GB 256-bit LPDDR4x |
| GRAPHIC INTERFACES | 1x HDMI 2.0 (max resolution 3840x2160) |
| INTERFACES |
1x Gigabit Ethernet 3x USB 3.1 1x CAN Bus 1x RS232/422/485 2xDigital In/3x Digital Out 1x USB 2.0 (Debug UART) |
| WIRELESS COMMUNICATION | Optional M.2 Key-E Cards |
| POWER SUPPLY | 18-32 VDC |
|
INTERNAL EXTENSION SOCKETS |
1x M.2 Key M (PCIe Gen4 x4) |
| INTERNAL MASS STORAGE |
32GB/64GB eMMC 5.1 Flash 1x MicroSD Card |
| AMBIENT CONDITIONS | -40°C … +85°C |
| FORM FACTOR / DIMENSIONS | 100 mm x 100 mm |
| OPERATING SYSTEMS | Ubuntu Linux 20.04 |
