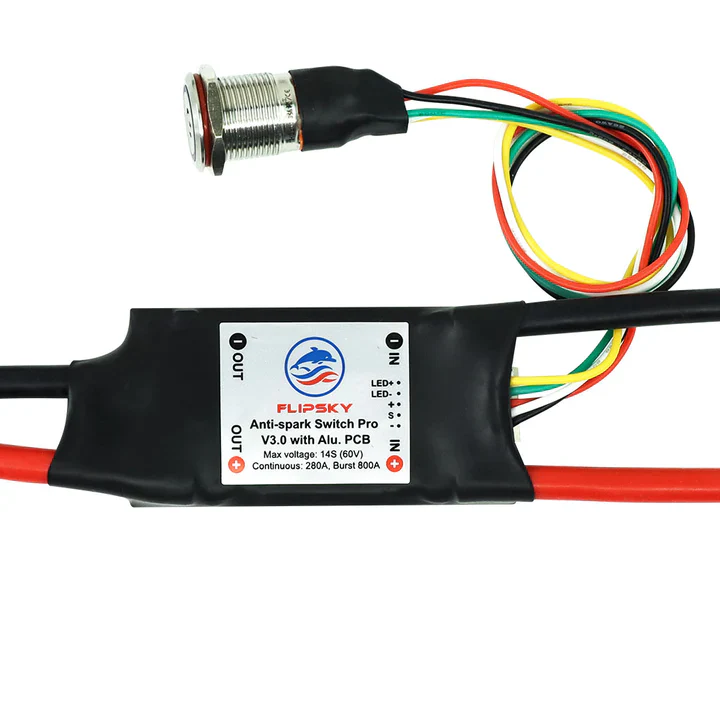

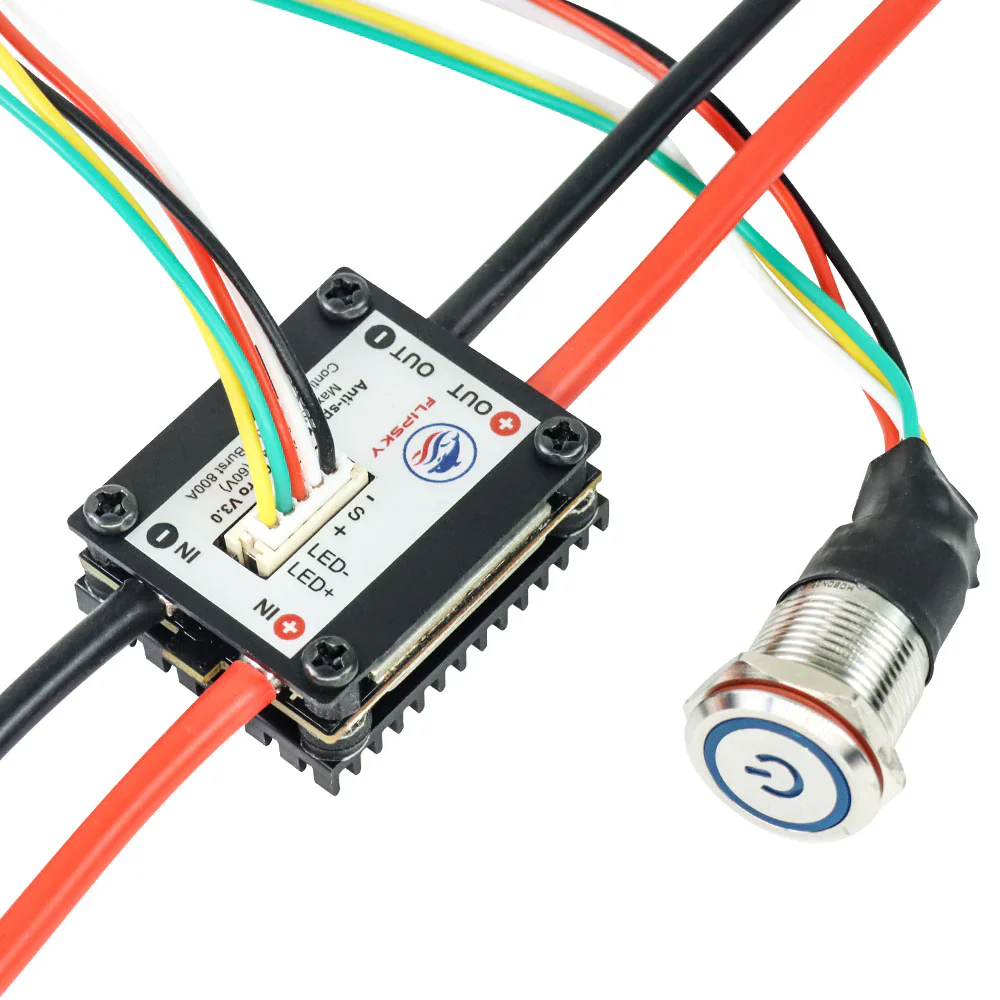

Flipsky Antispark Switch Pro V3.0 280A
- V3.0
- Mosfets:HYG015N10NS1TA
- LED button diameter: 16mm
- Voltage range:3S-14S (12V-60V)
- Max current:280A
- Continuous current:80A
- Burst current 800A(theoretical current)
- PCB thickness: 6 layer*3oz copper=18oz copper

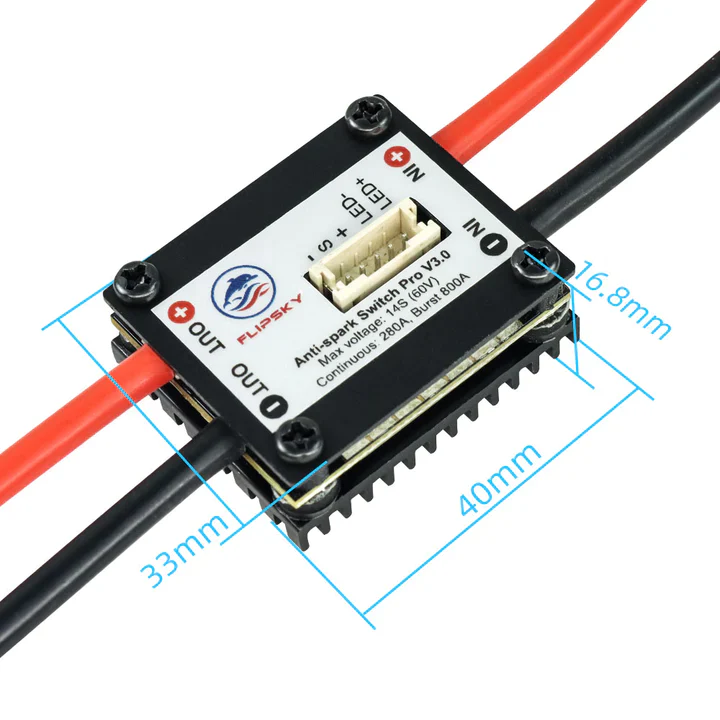

- Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm

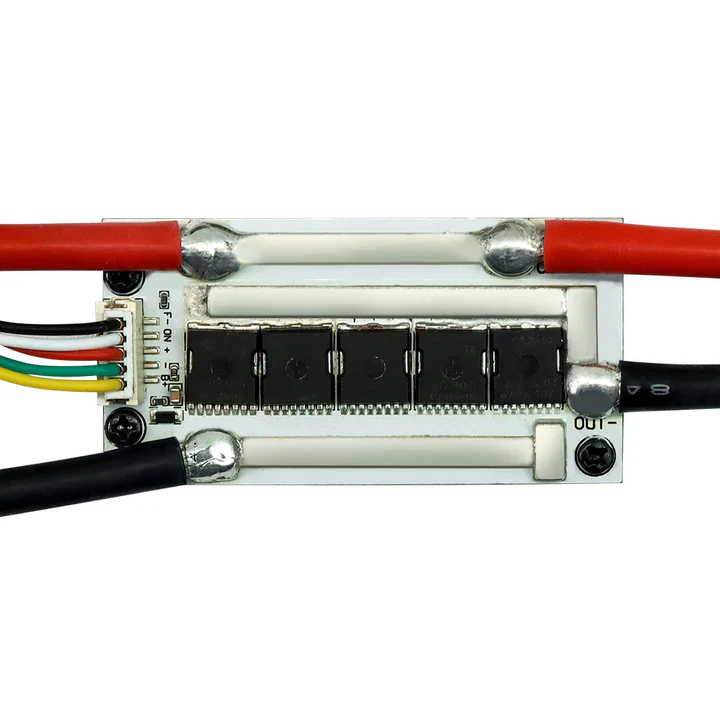

- With Aluminum PCB V3.0 Dimensions:72mm*37mm*16.2mm
Reminder : the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.Make sure the switch is off before applying power.
Select Variant
From $49.74
Flipsky Antispark Switch Pro V3.0 280A—
$49.74
Description
- V3.0
- Mosfets:HYG015N10NS1TA
- LED button diameter: 16mm
- Voltage range:3S-14S (12V-60V)
- Max current:280A
- Continuous current:80A
- Burst current 800A(theoretical current)
- PCB thickness: 6 layer*3oz copper=18oz copper
- Pro V3.0 Dimensions(with heatsink and heat shrink): 42.2mm*33mm*26.6mm
- With Aluminum PCB V3.0 Dimensions:72mm*37mm*16.2mm
Reminder : the LED button is defaultly inserted in the switch in shipping status, DO NOT power on switch without the LED button connected.Make sure the switch is off before applying power.
