F450 Quadcopter Frame

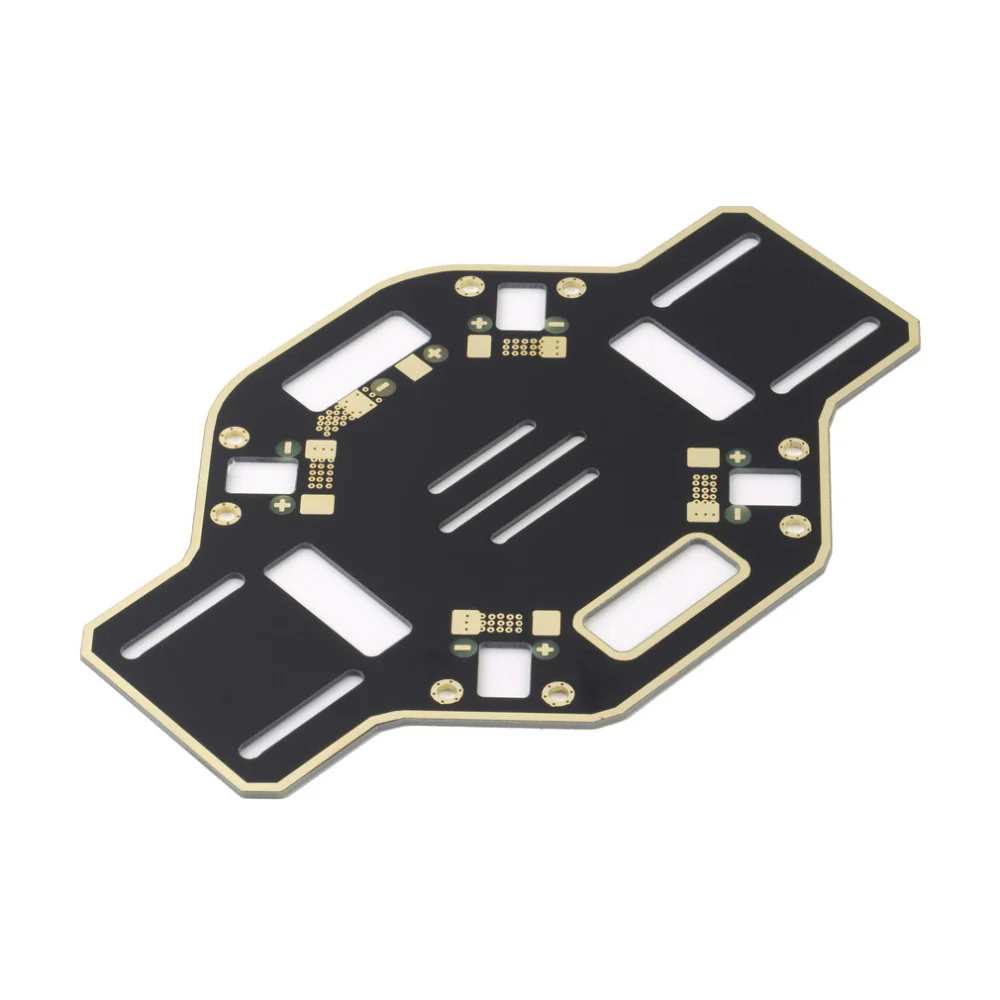

This F450 Quadcopter Frame PCB Board is a well thought out 450mm quad frame built from quality materials. The Board is made of glass fiber. This board provides integrated PCB connections for direct soldering of your ESCs. New design PCB board version fit for standard 50mm controller board such as MK, KK, FF, MWC;
This eliminates the need for a power distribution board or messy multi-connectors keeping your electronics layout very tidy. It also comes with stronger moulded construction so no more board breakage at the hard landing.

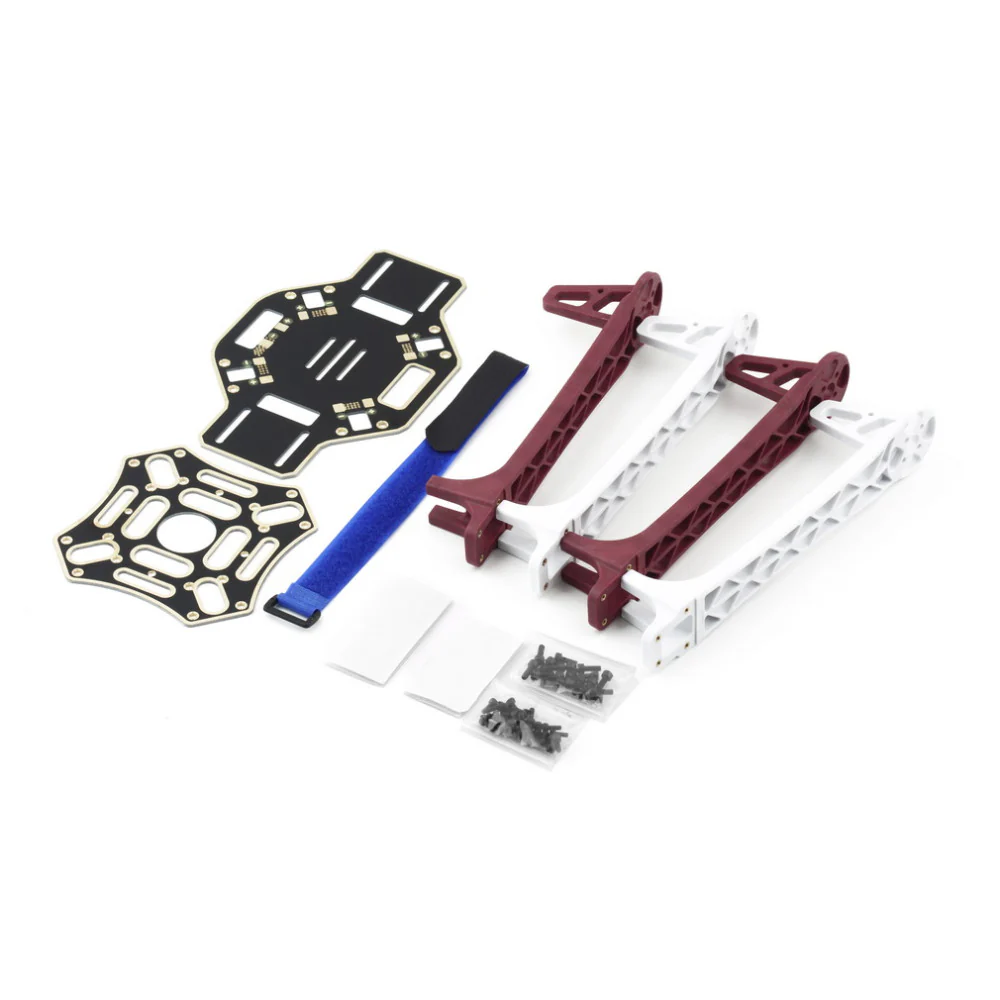

Package included

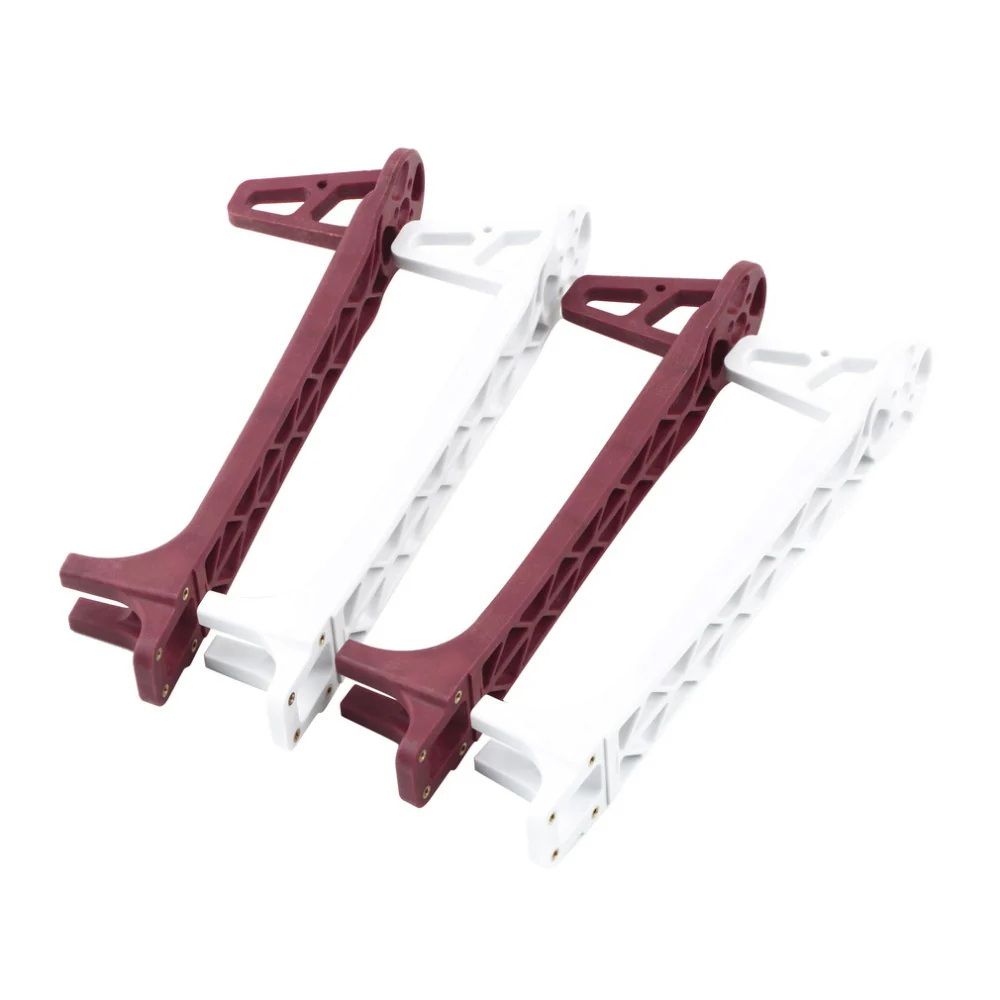

- 6 x Flame Wheel(2 Red,2 White)
- 1 x F450 TOP Plate

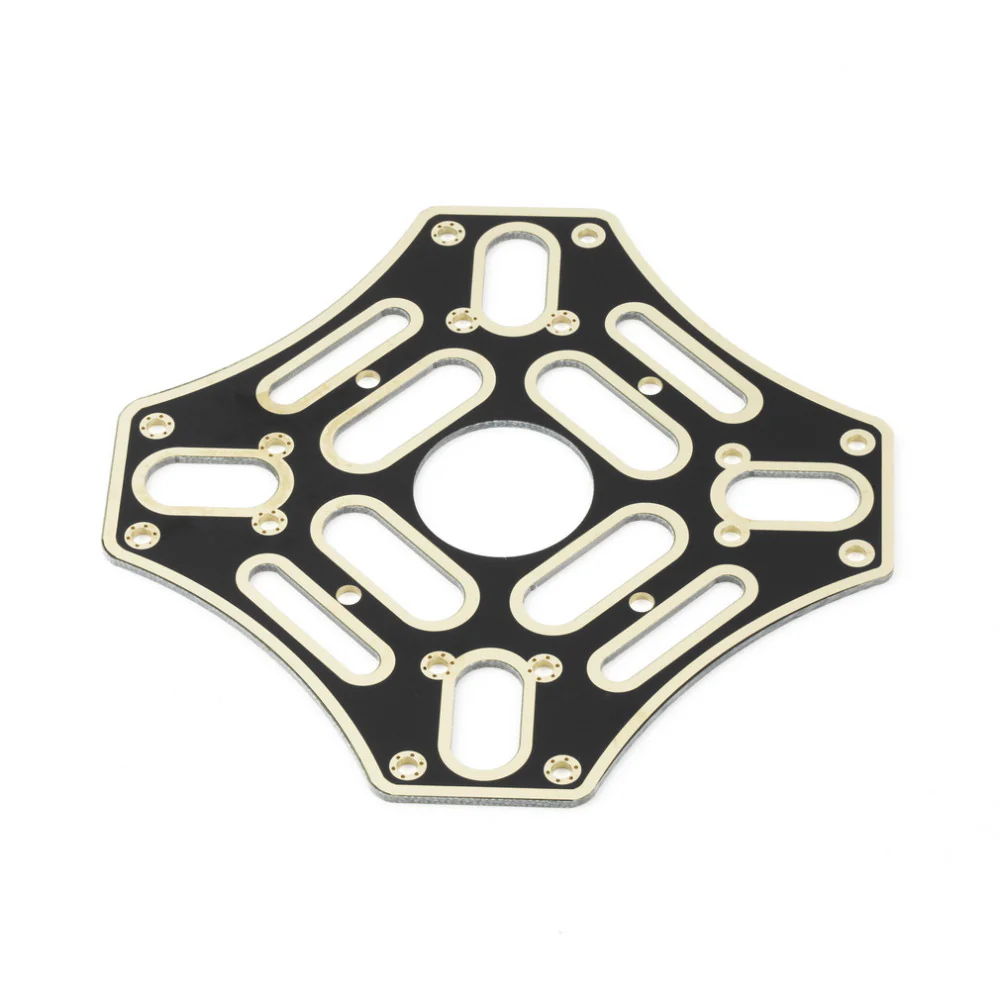

- 1 x F450 BOTTOM Plate
- 16 x F-M3*8 Screws
- 24 x F-M2.5*8 Screws
Specification
- Color: White & Red

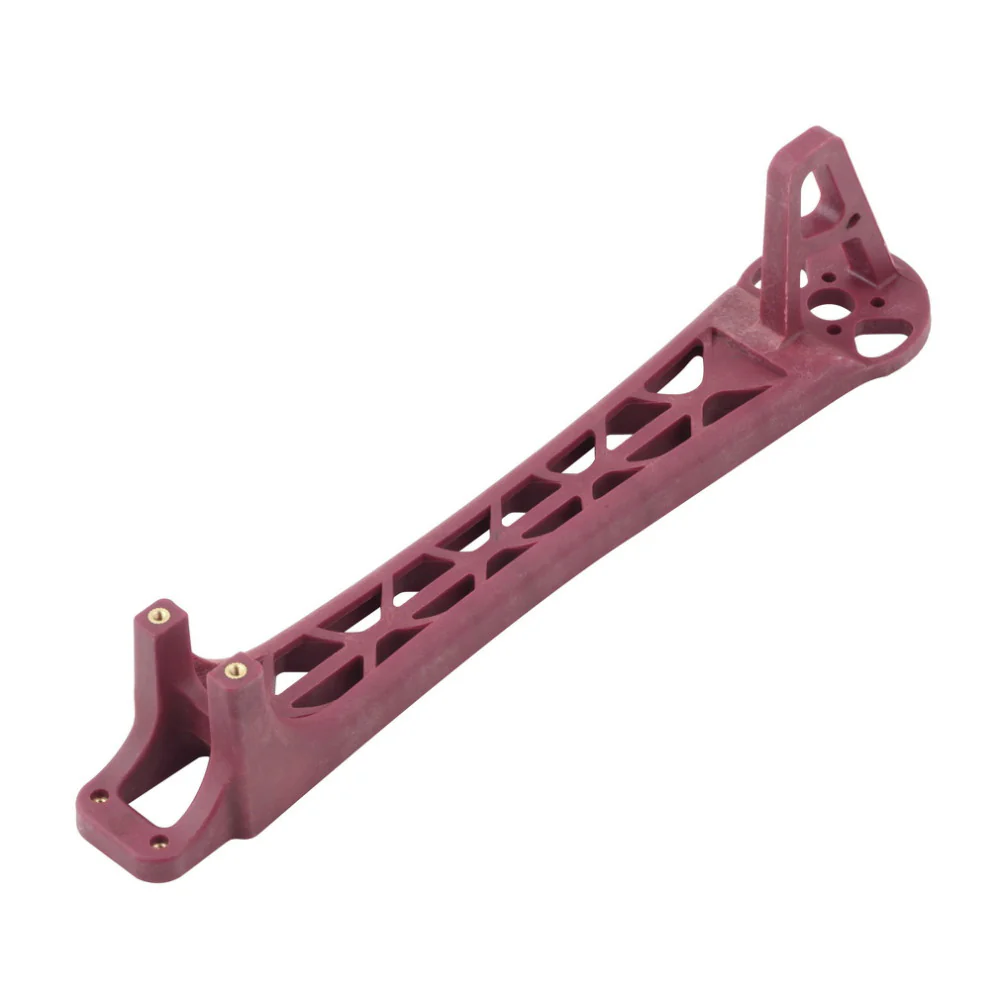

- Frame arm size: 21.5 * 3.8 * 5cm / 8.5 * 1.6 * 2.0inch
- Weight: 43g(Single)
- Weight: 250g / 4pcs
- Colour: Black Plate
- Material: Glass Fiber
Resources
CAD Files
Tutorials
Original: $22.22
-70%$22.22
$6.67
