DIY HDMI FFC Cable
HDMI Adapter
For DIY HDMI Cable
Multi-Type Adapters Are Available For Different Applications
NOTE: If you are looking for different HDMI ports at each end, please send us an email at [email protected] after placing your order.
Parameters Comparison
| MODEL | VERSION | INTERFACE | DIMENSIONS(MM) |
|---|---|---|---|
|
|

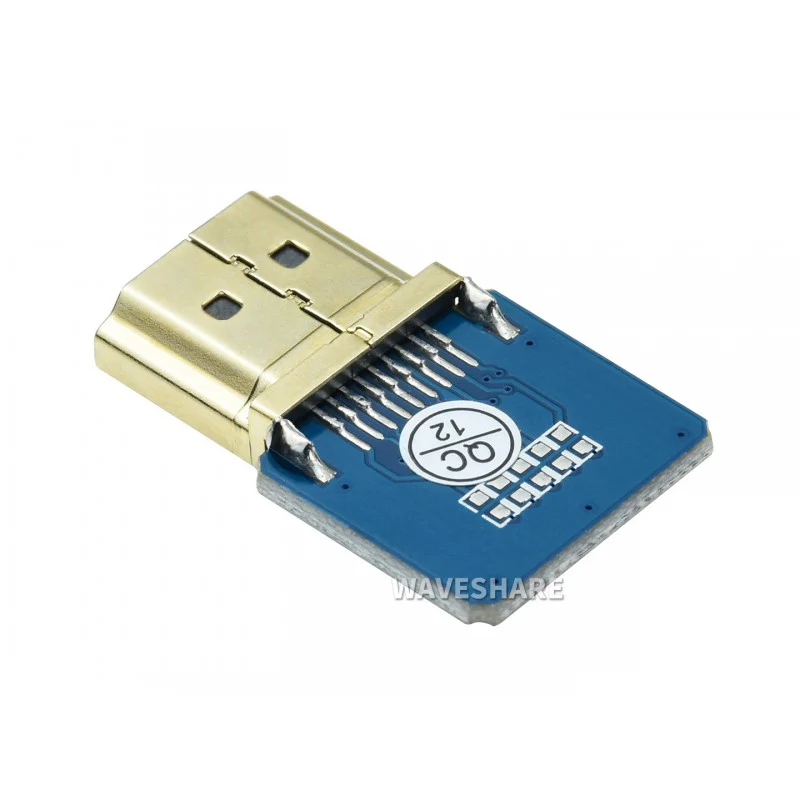

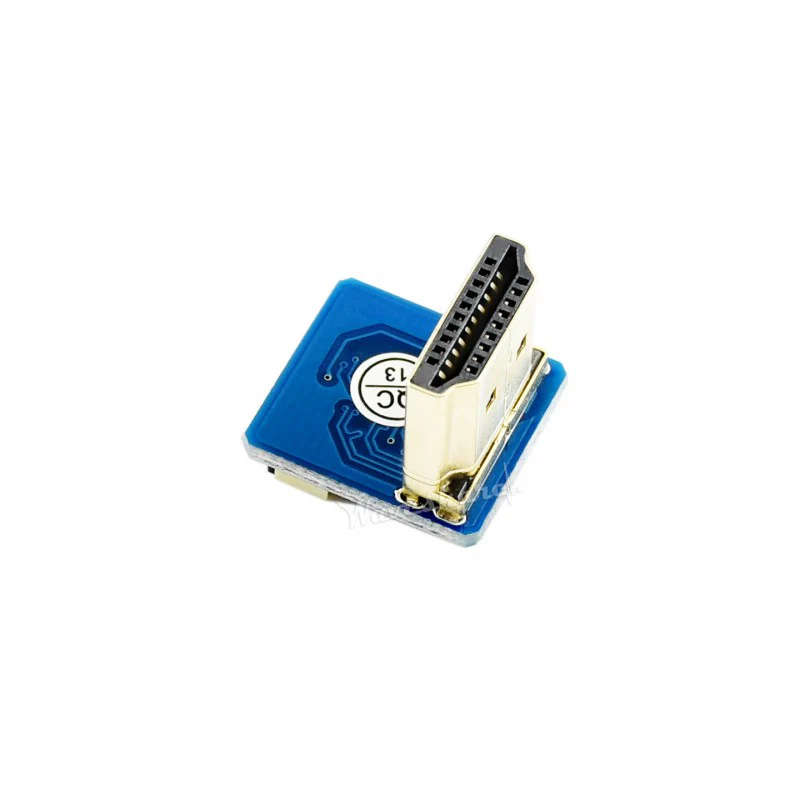

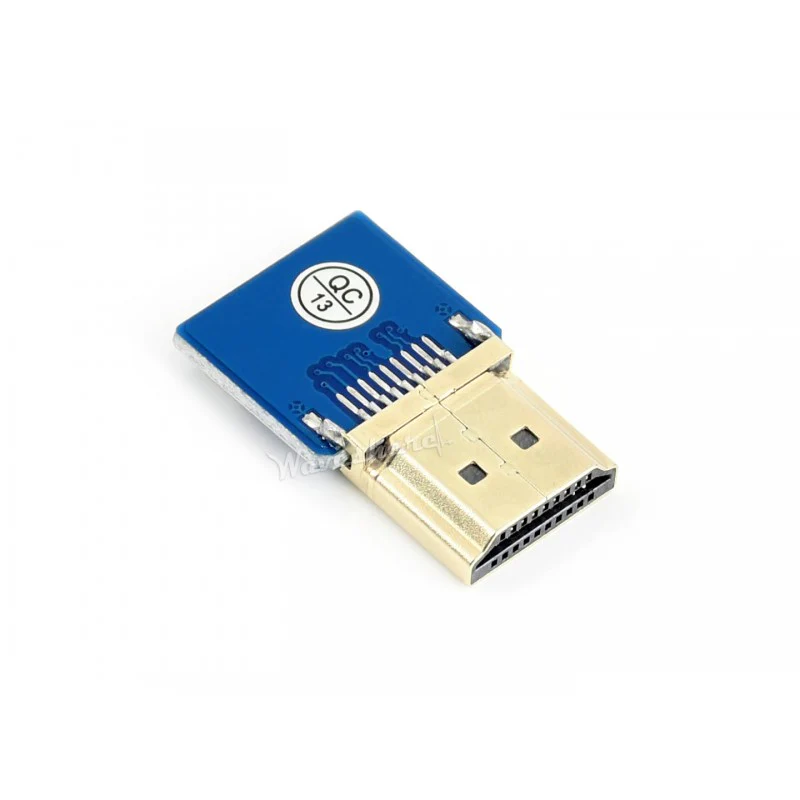

HDMI Vertical | HDMI Male Plug To Female Connector | 18.0 × 16.5 × 16.5 |

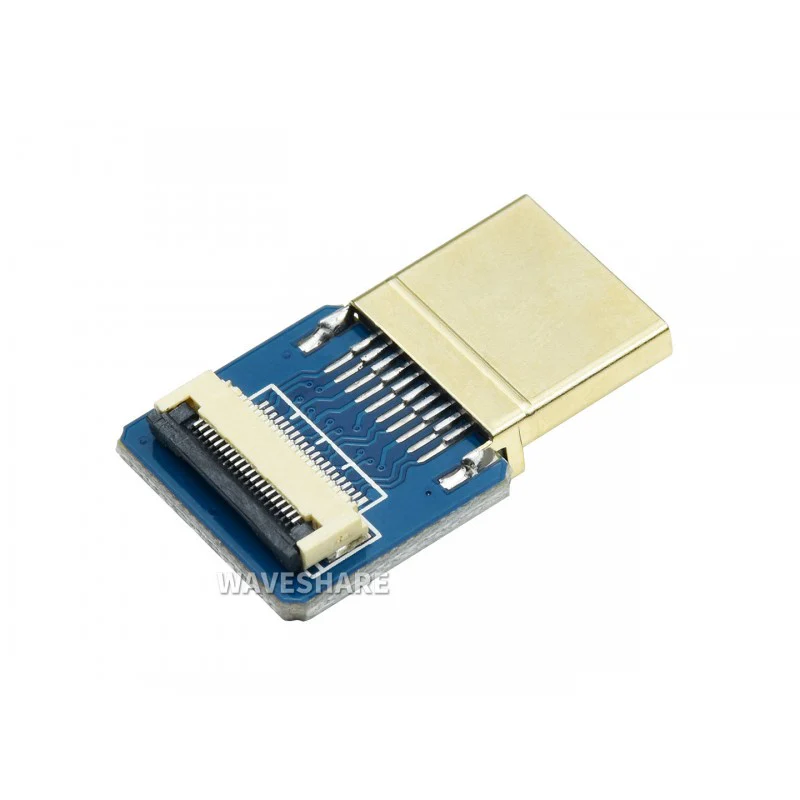

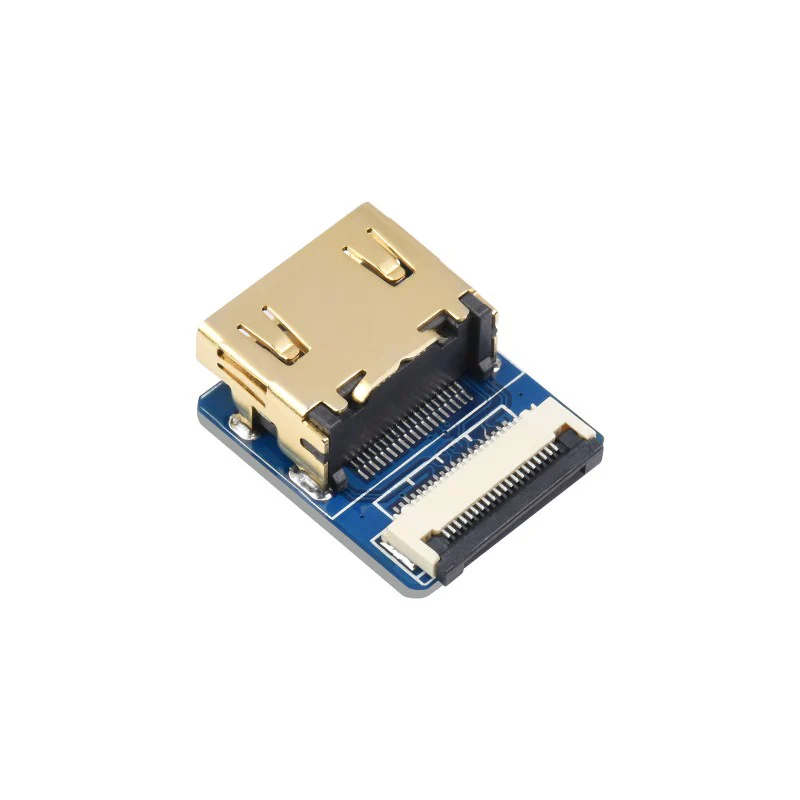

 HDMI Adapter Horizontal ELC7069 |
HDMI Horizontal | HDMI Male Plug To Female Connector | 29.5 × 18.0 × 4.5 |

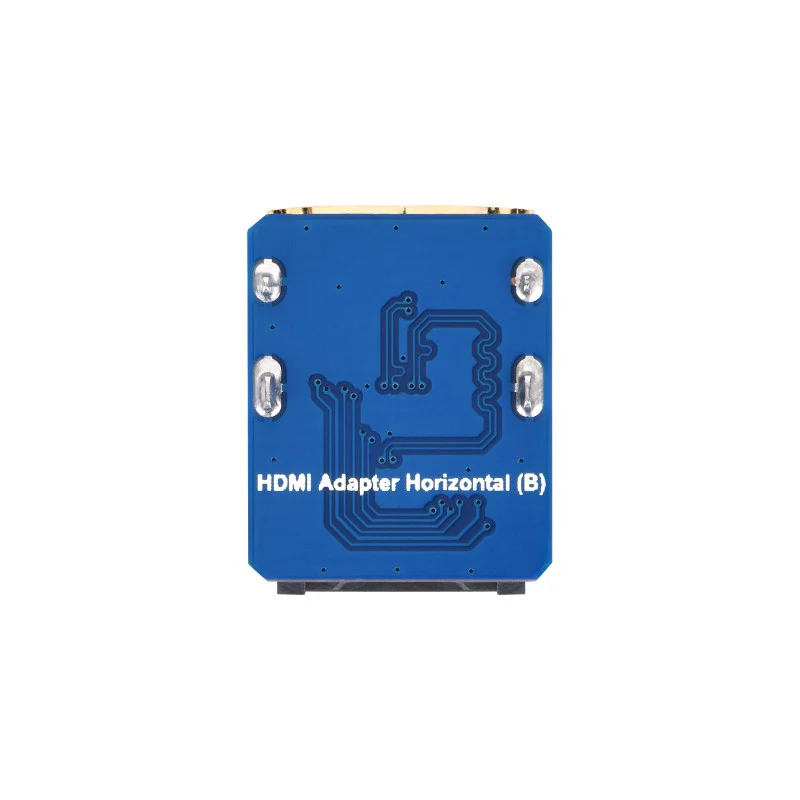

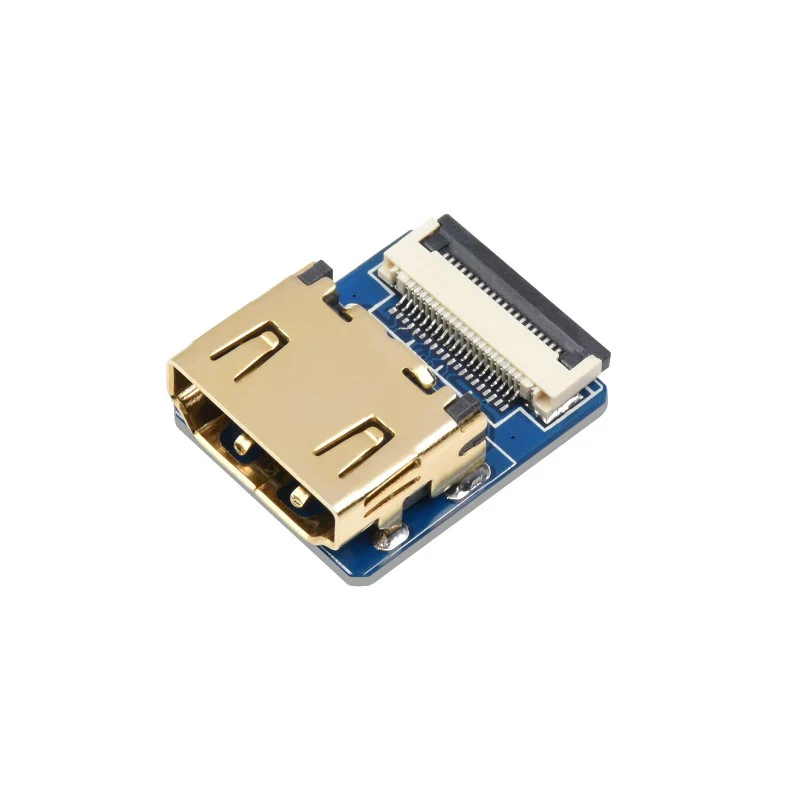

 HDMI Adapter Horizontal (B) ELC7083 |

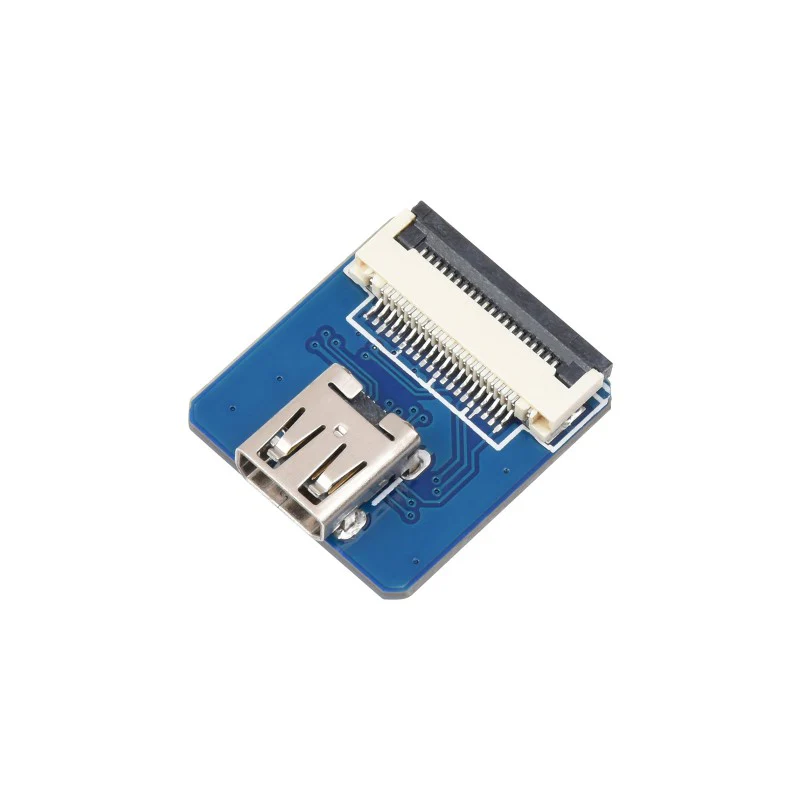

HDMI Horizontal B | HDMI Female To Female Connector | 20.5 × 17.0 |

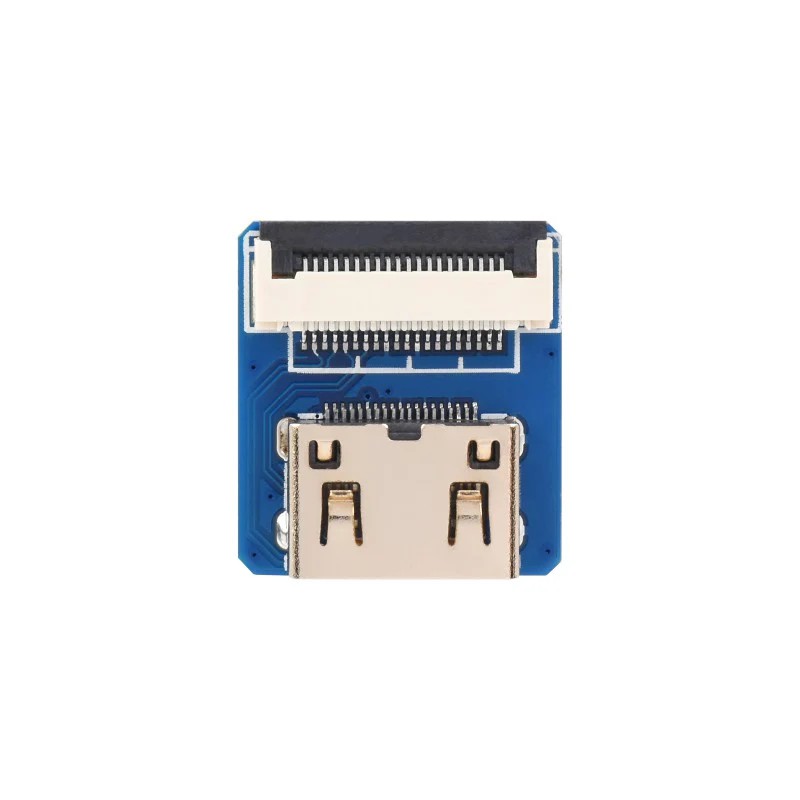

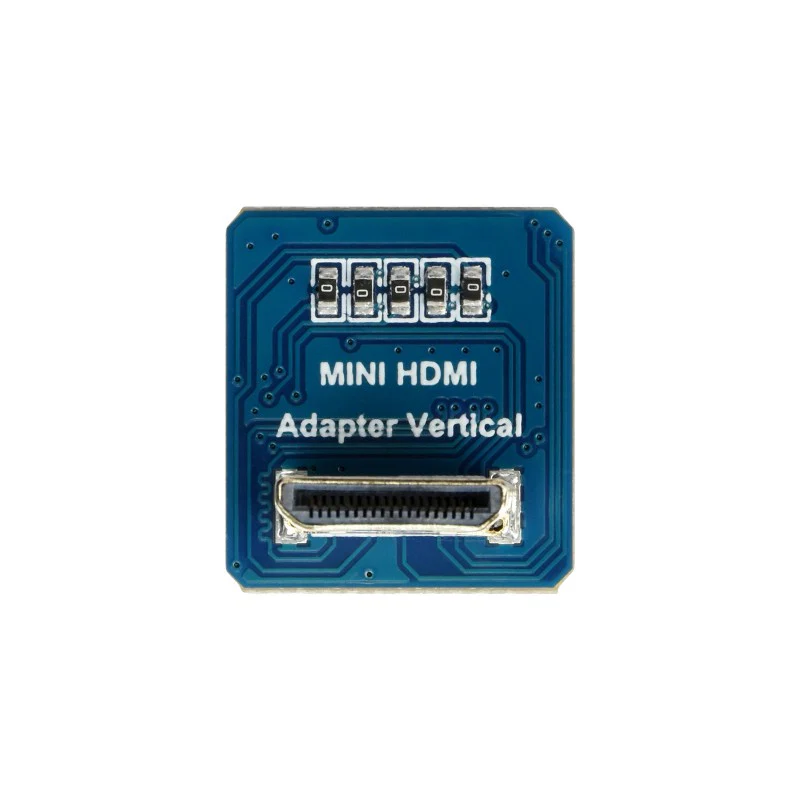

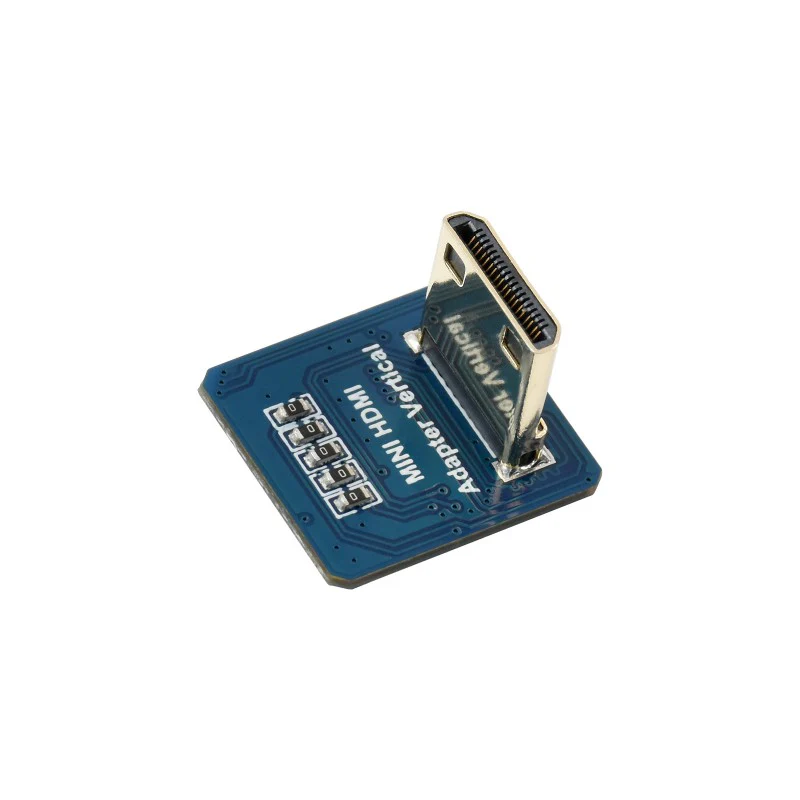

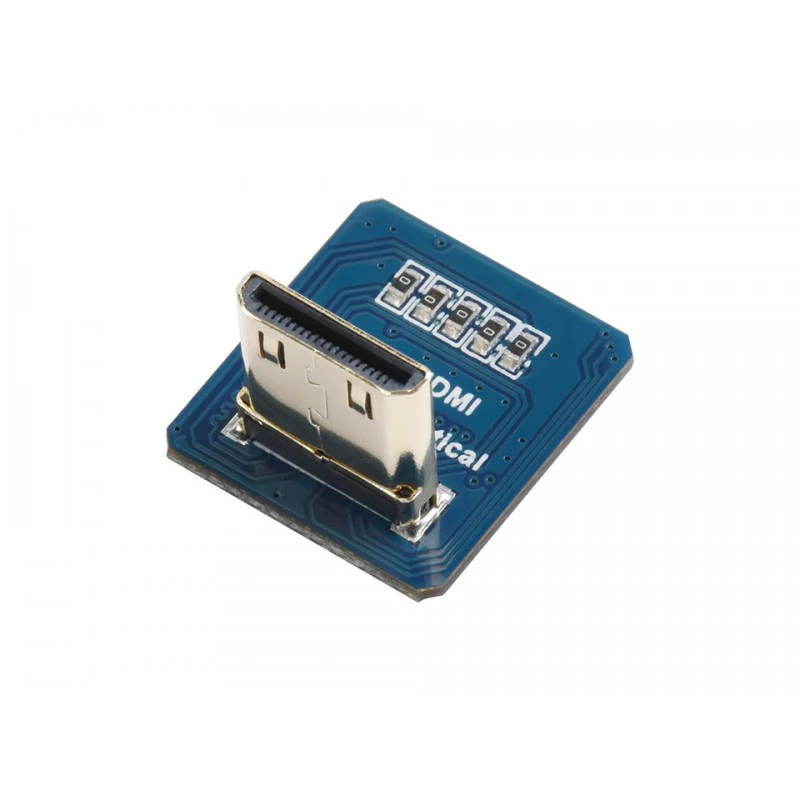

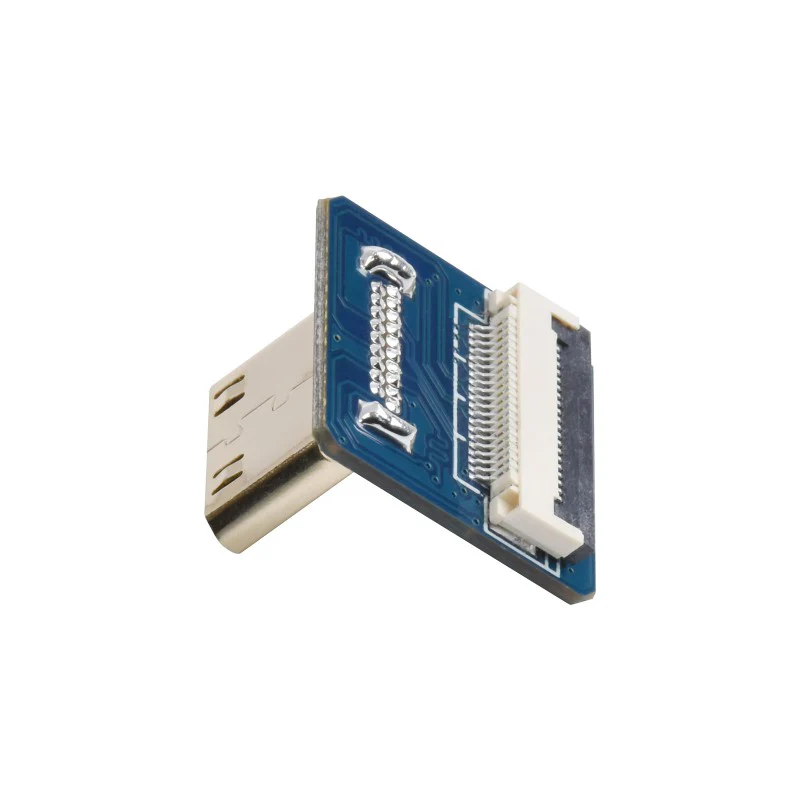

 MINI HDMI Adapter Vertical ELC7079 |

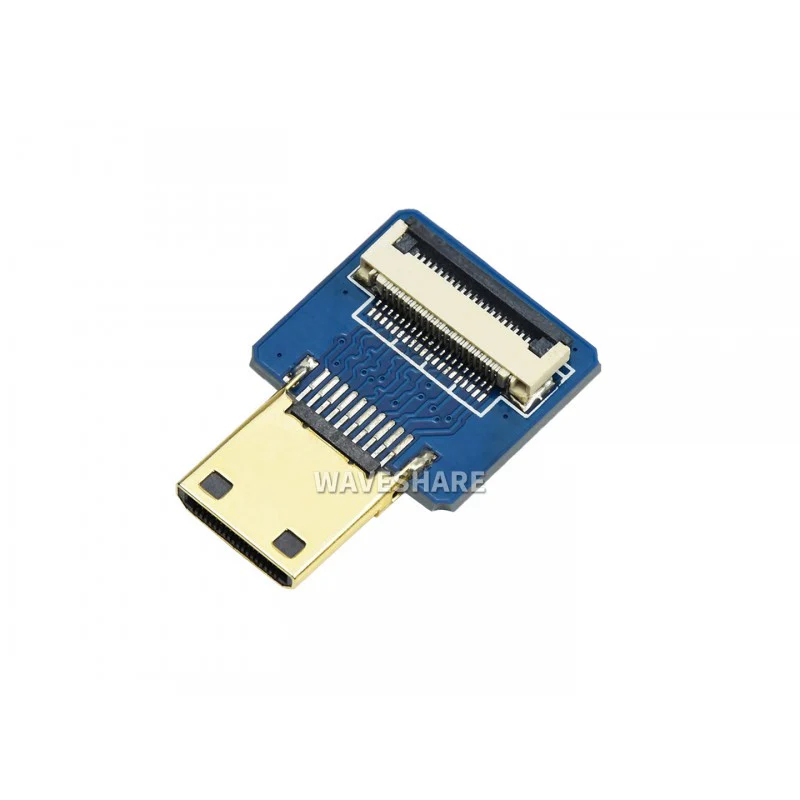

Mini HDMI Vertical | Mini HDMI Male Plug To Female Connector | 17.5 × 16.0 × 12.0 |

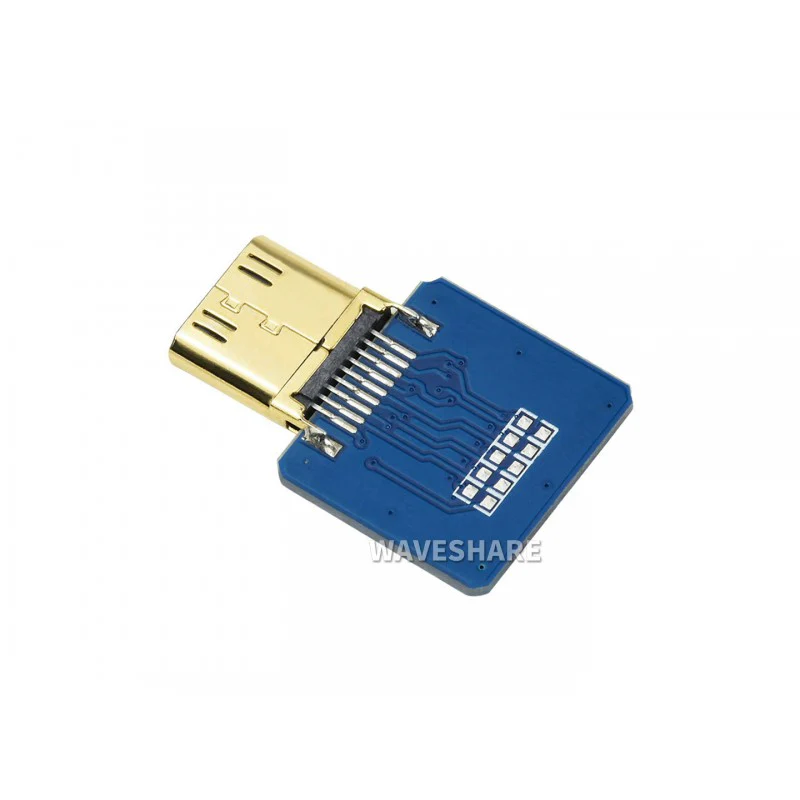

 Mini HDMI Adapter Horizontal ELC7075 |
Mini HDMI Horizontal | Mini HDMI Male Plug To Female Connector | 26.4 × 18.0 × 4.5 |

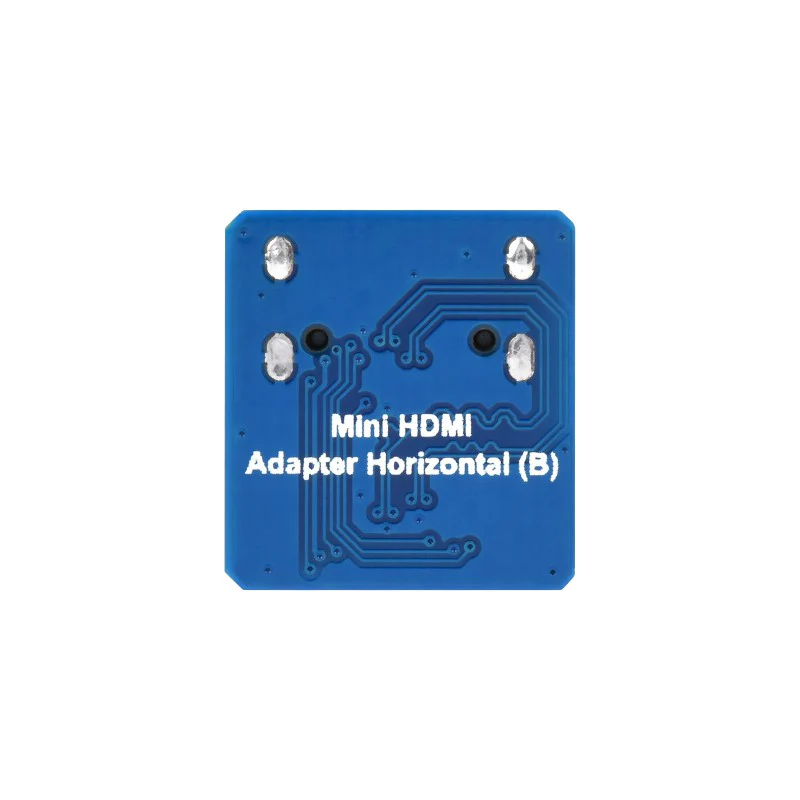

 Mini HDMI Adapter Horizontal (B) ELC7082 |

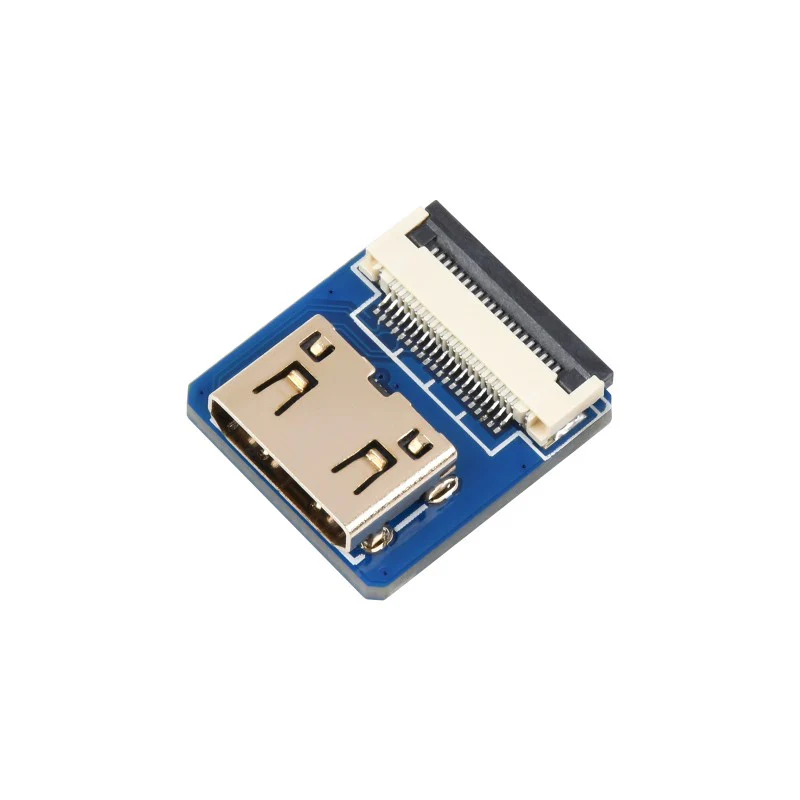

Mini HDMI Horizontal B | Mini HDMI Female To Female Connector | 17.5 × 16.0 |

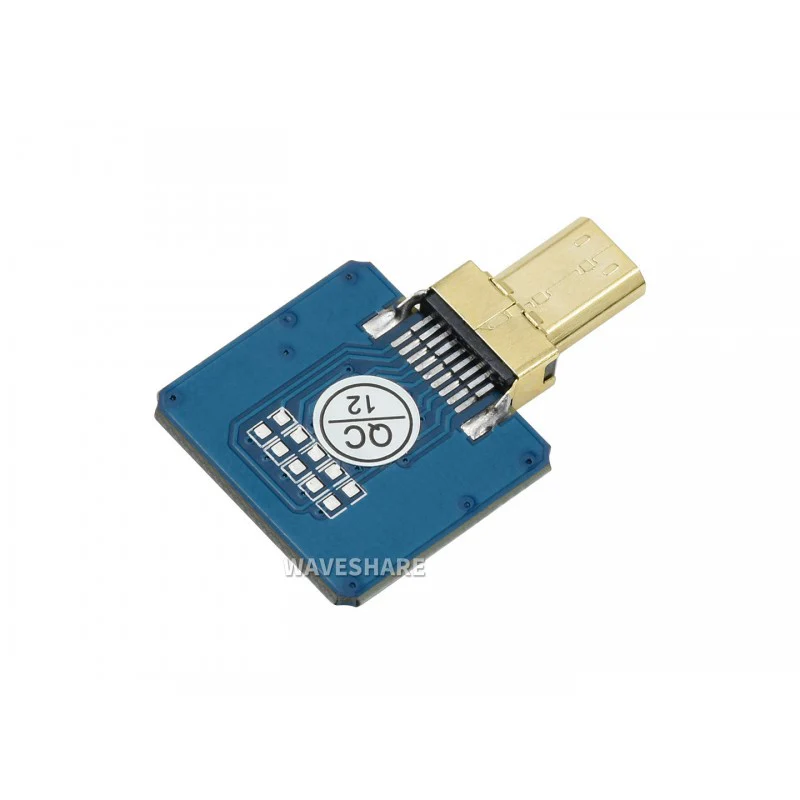

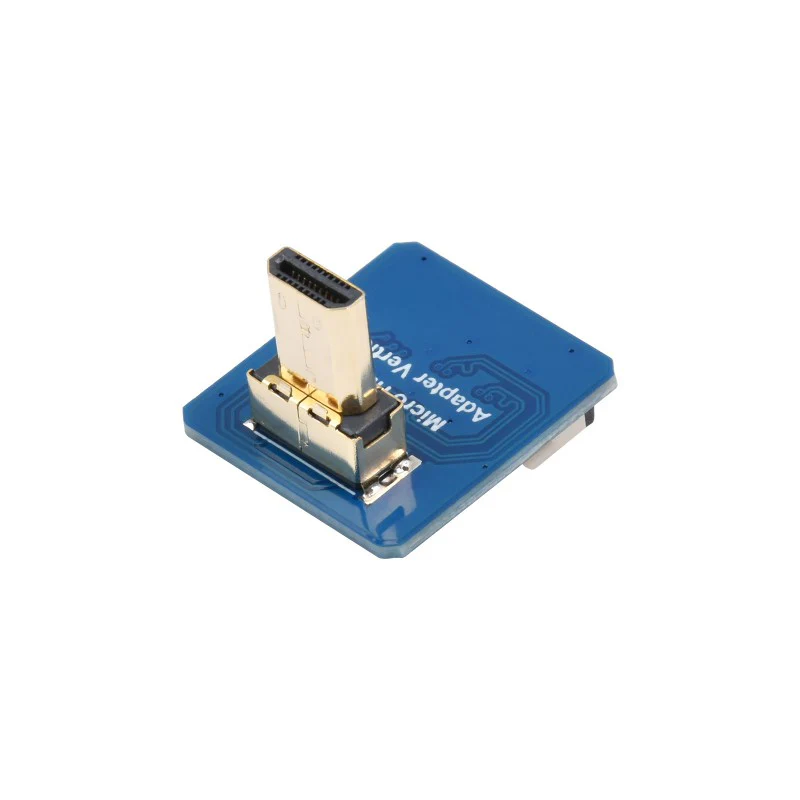

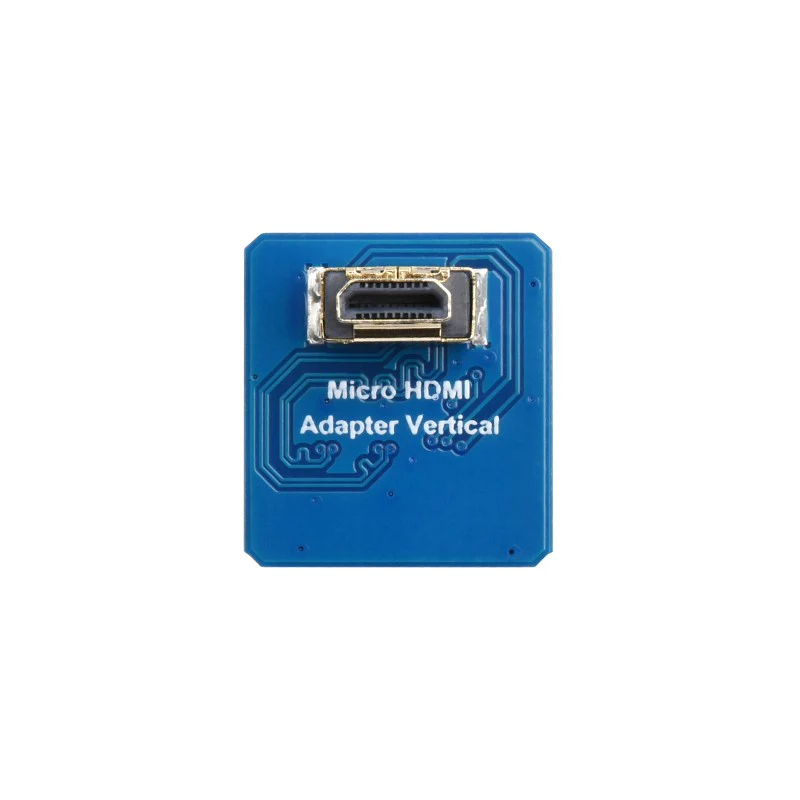

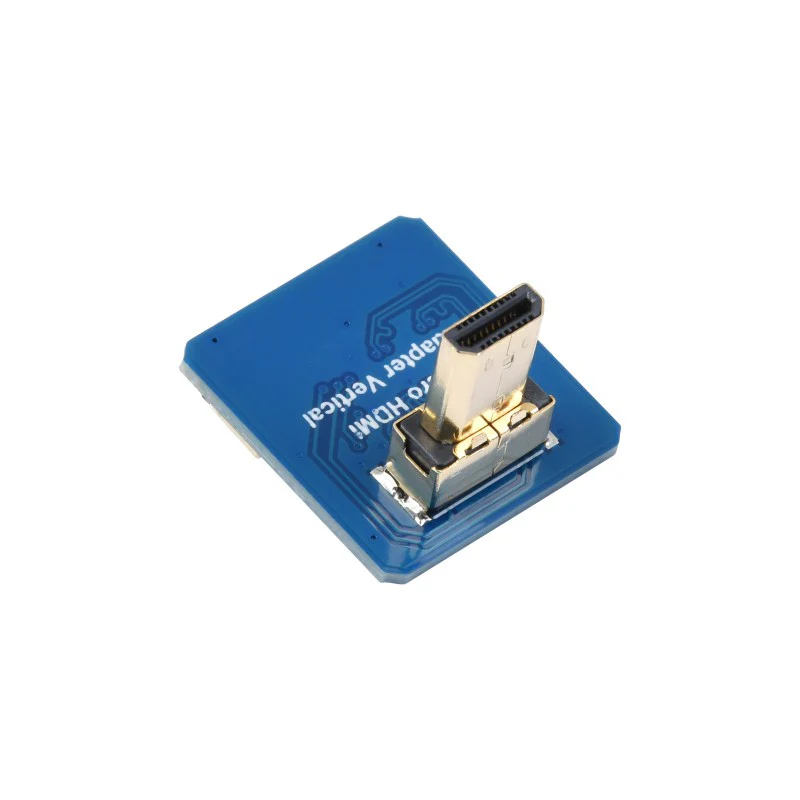

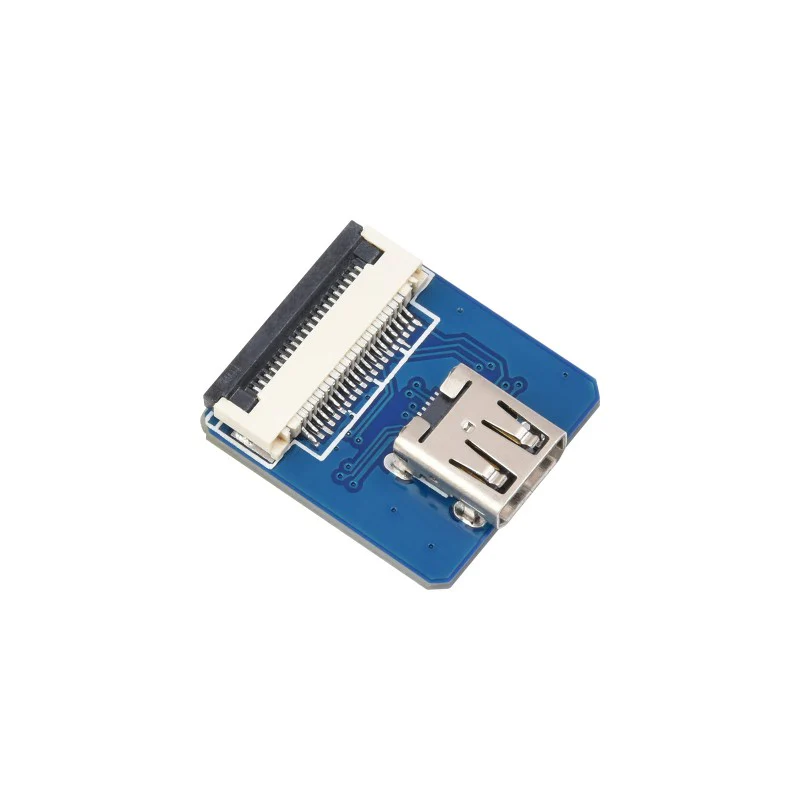

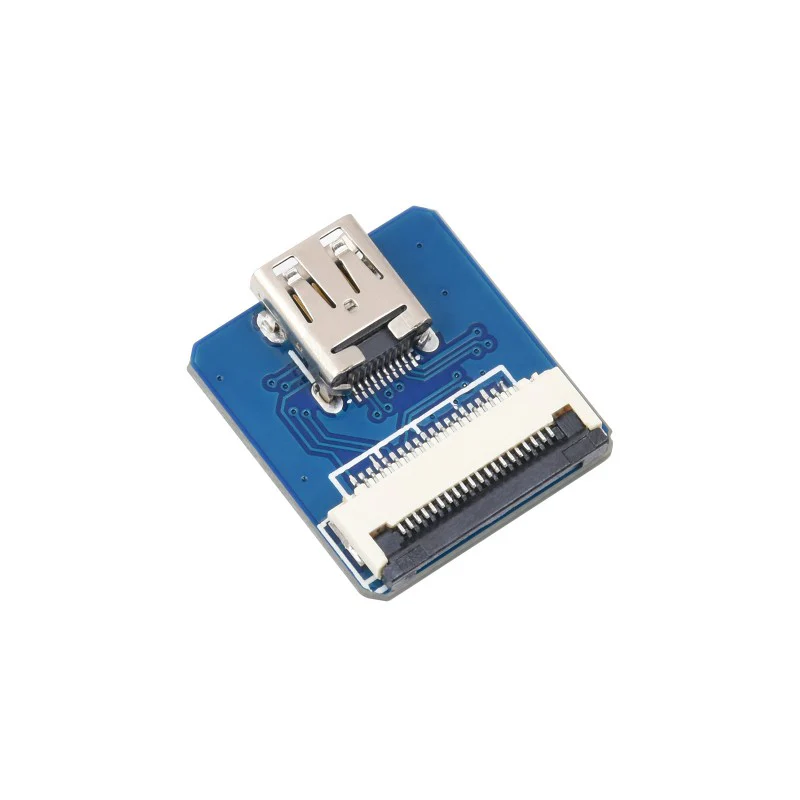

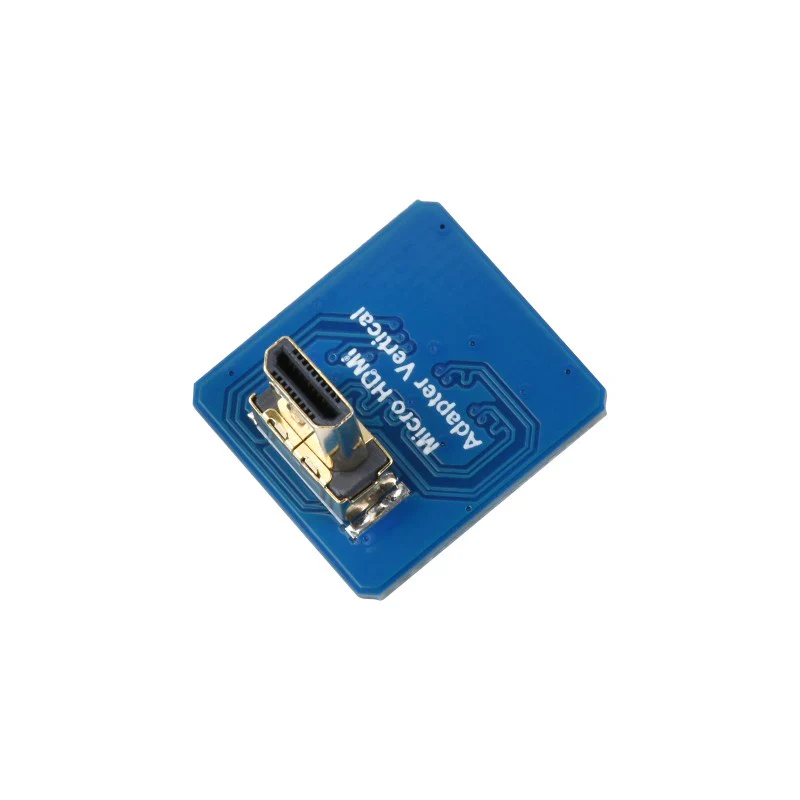

 Micro HDMI Adapter Vertical ELC7080 |
Micro HDMI Vertical | Micro HDMI Male Plug To Female Connector | 17.5 × 16.0 |
 Micro HDMI Adapter Horizontal ELC7071 |

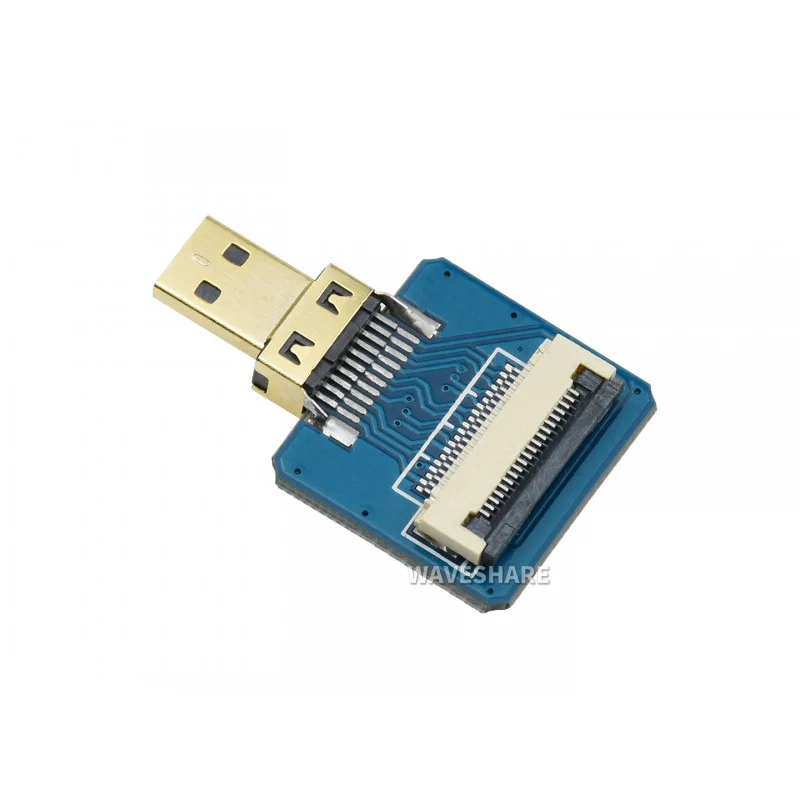

Micro HDMI Horizontal | Micro HDMI Male Plug To Female Connector | 27.6 × 18.0 × 4.5 |

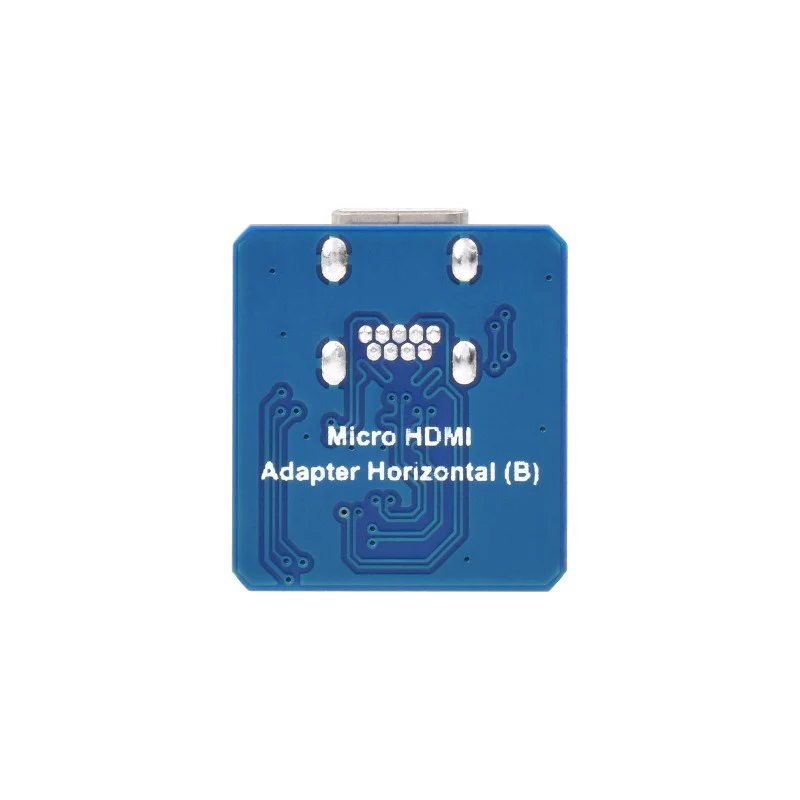

 Micro HDMI Adapter Horizontal (B) ELC7081 |
Micro HDMI Horizontal B | Micro HDMI Female To Female Connector | 17.5 × 16.0 |
Usage Example
- To DIY an HDMI cable, 2 adapters and 1 FFC are required, there are different options for each part
- Adapter: HDMI Vertical /HDMI Horizontal / HDMI Horizontal (B) / Mini HDMI Vertical / Mini HDMI Horizontal / Mini HDMI Horizontal (B) / Micro HDMI Vertical / Micro HDMI Horizontal / Micro HDMI Horizontal (B)
- FFC: 0.2m / 0.5m / 1m
Outline Dimensions
Select HDMI Connectors
Select FFC Cable Length
From $1.43
Original: $4.76
-70%DIY HDMI FFC Cable—
$4.76
$1.43
