Cooling fan Heat Sink for Jetson Nano
Dedicated Cooling Fan For Jetson Nano
Compatible With Jetson Nano, Built-In Speed-Adjustable Fan,
With Elastic Bracket And Height-Limited Screws
Specifications
| MODULE SUPPORT | NVIDIA Jetson Nano module |
|---|---|
| POWER SUPPLY | DC 5V input |
| STRUCTURE | Embedded fan, aluminum alloy enclosure |
| ELECTRICAL PARAMETER | 0.65W (5V/0.13A) |
| CABLE LENGTH | 37±3mm |
| FAN | PWM speed-adjustable, 5500±10%RPM |
Reserved Silicone Grease
please don't touch the silicone grease when opening the package

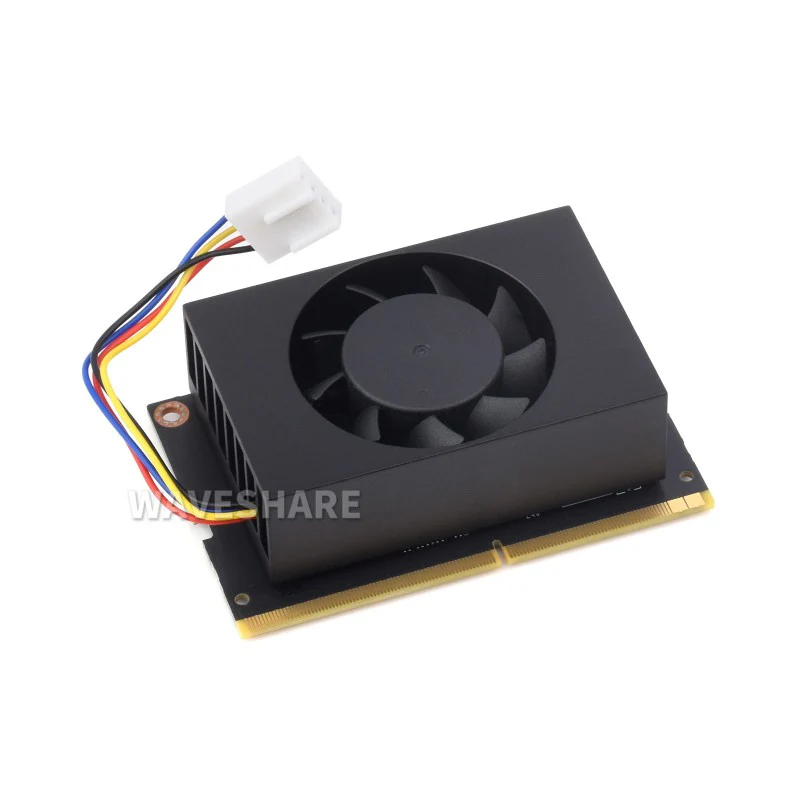

Application Examples
* for reference only, the Jetson Nano Module, JETSON-IO-BASE-A base board, and JETSON NANO MINI kit are NOT included

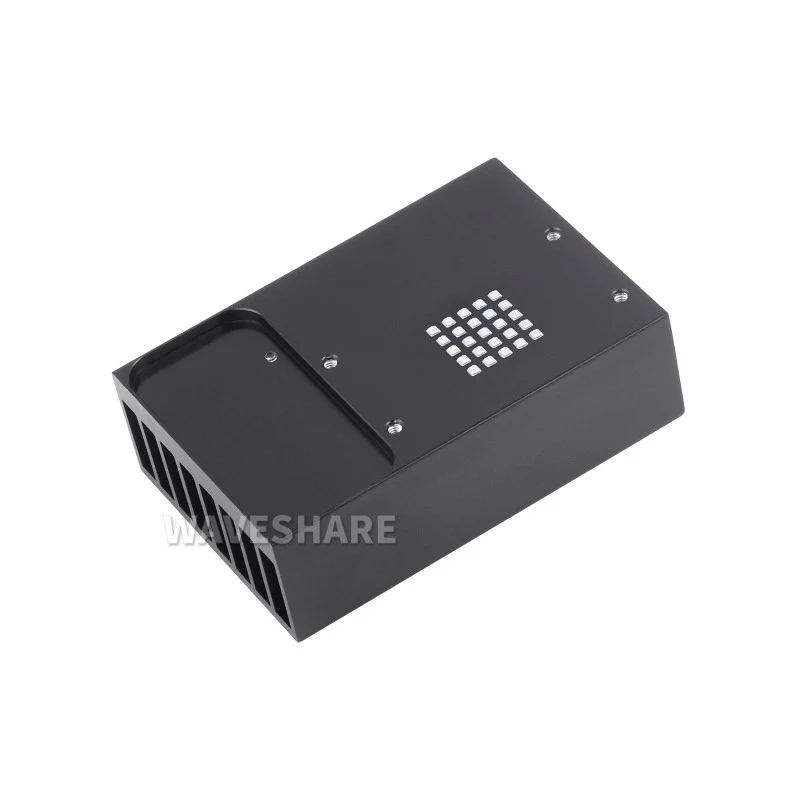

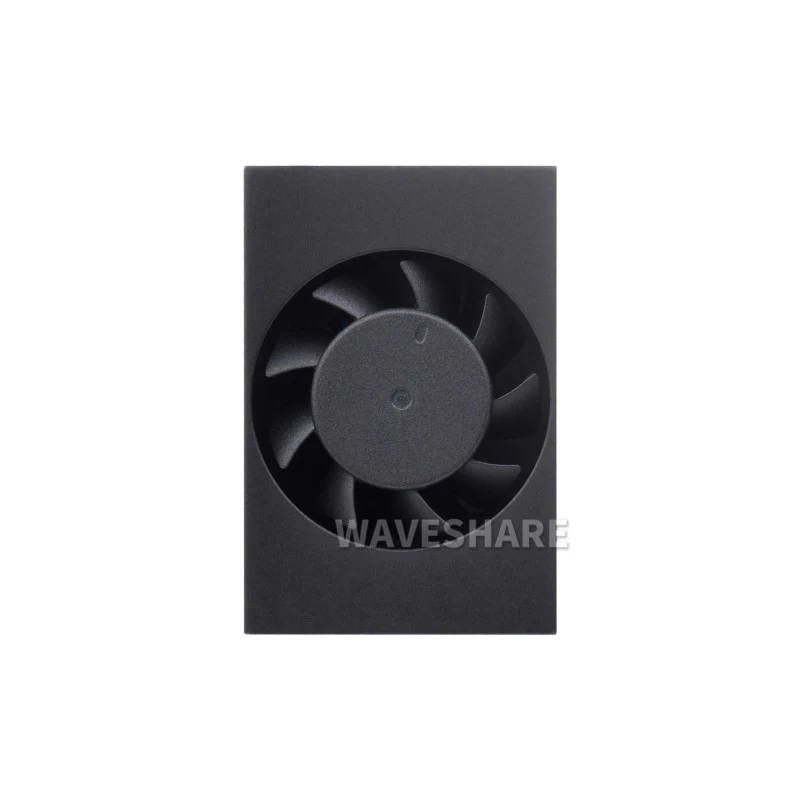

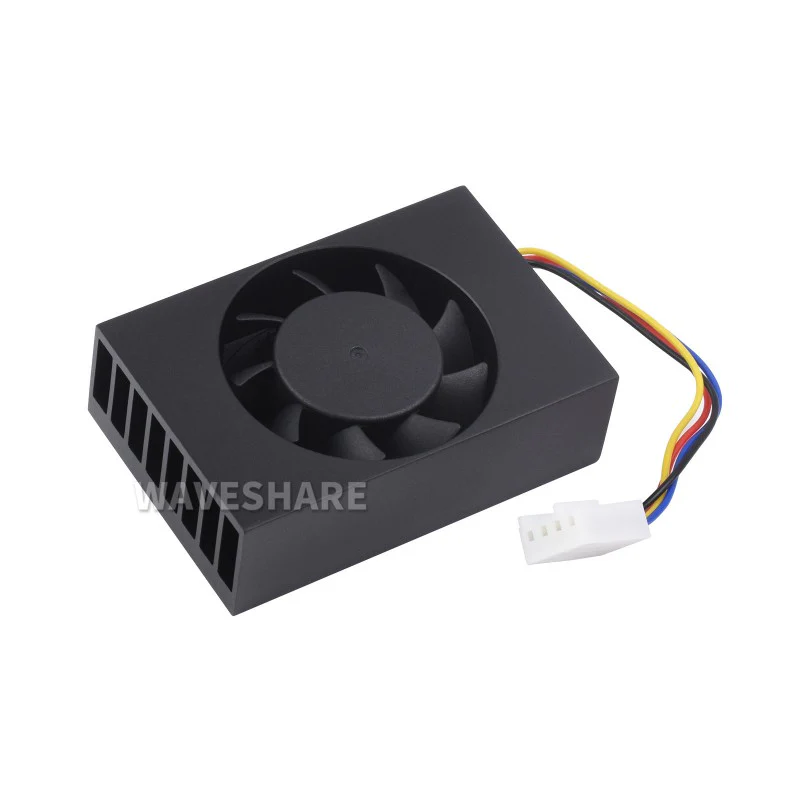

Product Show
Outline Dimensions
Packing List
Weight: 0.071 kg
- NANO-FAN-PWM x1
- Elastic bracket and height-limited screws x1
1
2
2
$13.76
Cooling fan Heat Sink for Jetson Nano—
$13.76
Description
Dedicated Cooling Fan For Jetson Nano
Compatible With Jetson Nano, Built-In Speed-Adjustable Fan,
With Elastic Bracket And Height-Limited Screws
Specifications
| MODULE SUPPORT | NVIDIA Jetson Nano module |
|---|---|
| POWER SUPPLY | DC 5V input |
| STRUCTURE | Embedded fan, aluminum alloy enclosure |
| ELECTRICAL PARAMETER | 0.65W (5V/0.13A) |
| CABLE LENGTH | 37±3mm |
| FAN | PWM speed-adjustable, 5500±10%RPM |
Reserved Silicone Grease
please don't touch the silicone grease when opening the package
Application Examples
* for reference only, the Jetson Nano Module, JETSON-IO-BASE-A base board, and JETSON NANO MINI kit are NOT included
Product Show
Outline Dimensions
Packing List
Weight: 0.071 kg
- NANO-FAN-PWM x1
- Elastic bracket and height-limited screws x1
