Cooling Fan Expansion Board For RDK X3 Development Board

Cooling Fan Expansion Board For RDK X3

Aluminium heatsink + Cooling fan

Dual cooling design, stackable with other expansion boards



Specifications

Supported	RDK X3 Development Board
Power supply	DC 5V input
Rated speed	5000 ± 10% RPM

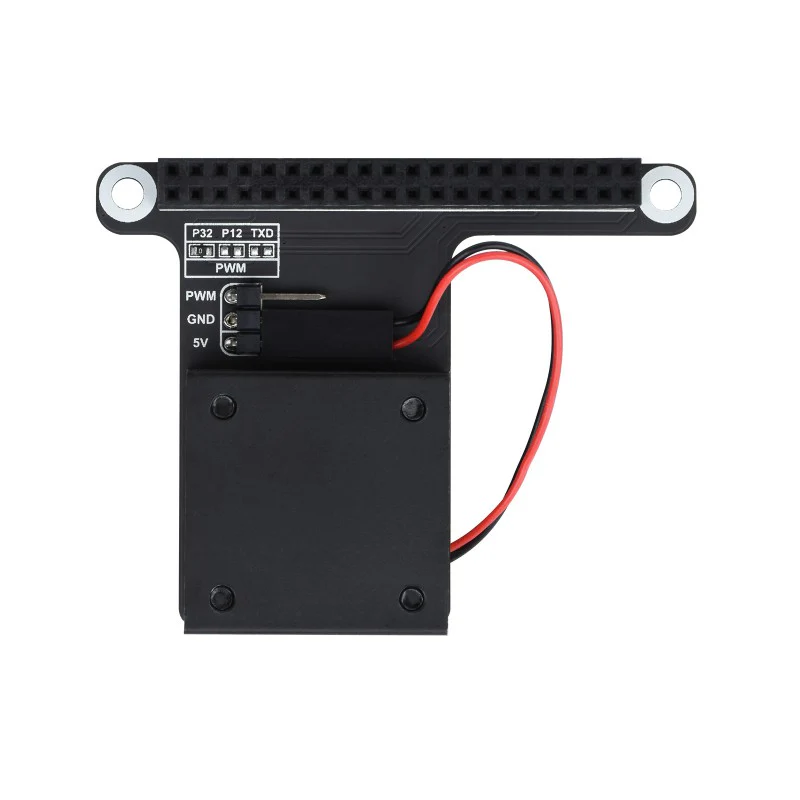

General	Reserved IO control interface
Interface	2.54 mm pitch header
Dimensions	65.00 × 49.90 mm

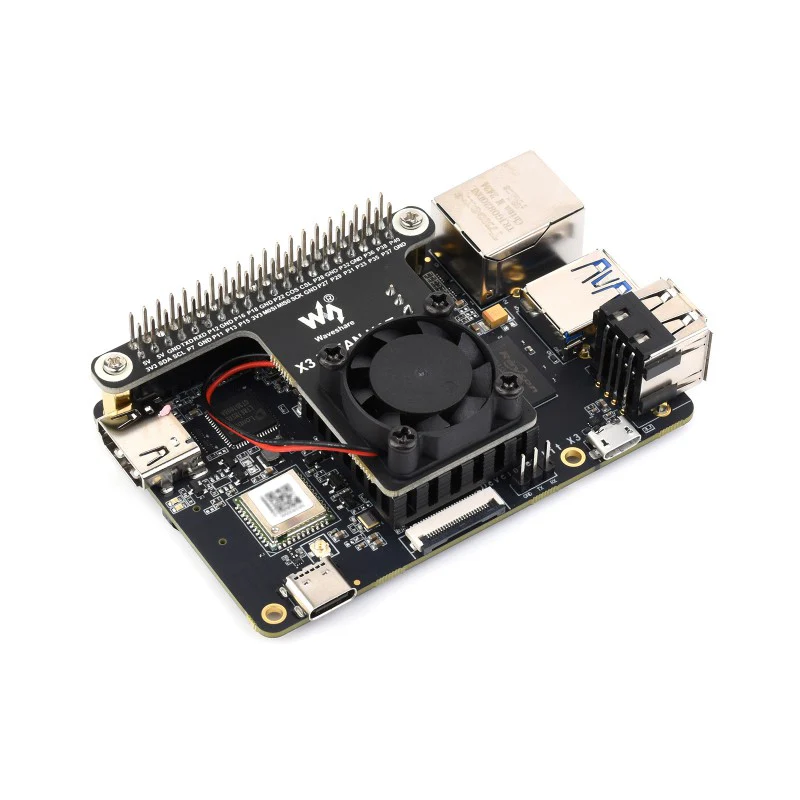

Designed for RDK X3 Development Board

Perfectly matches the dimensions and mounting holes of RDK X3, easy to use



Dual Cooling Design

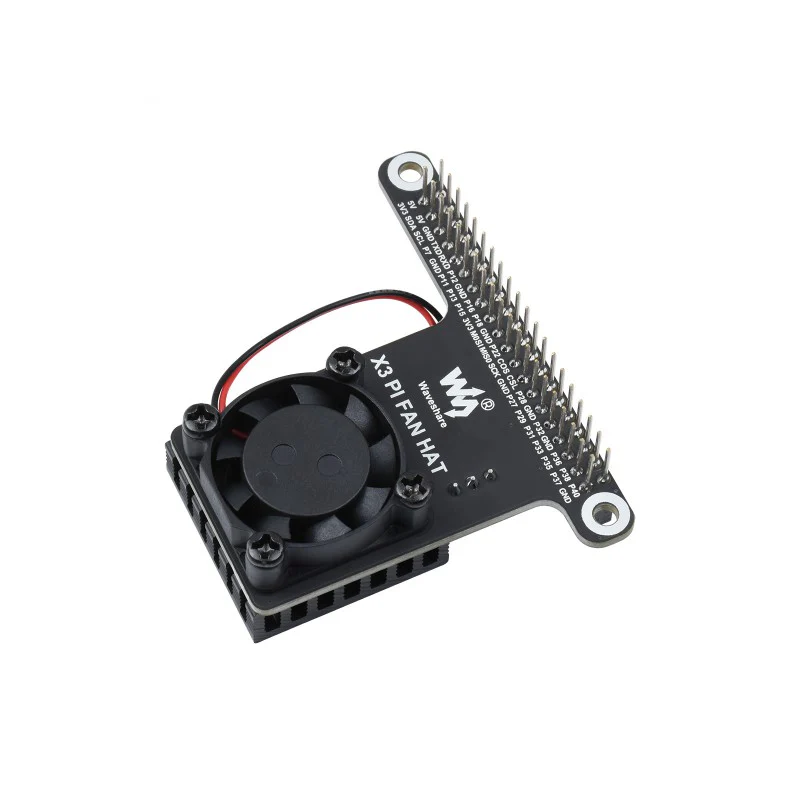

Adopts Aluminium heatsink + Cooling fan design for better Heat Dissipation



With Thermal Silicone Pad



Cooling Solution Comparing



Easy to Stack External Expansion Boards

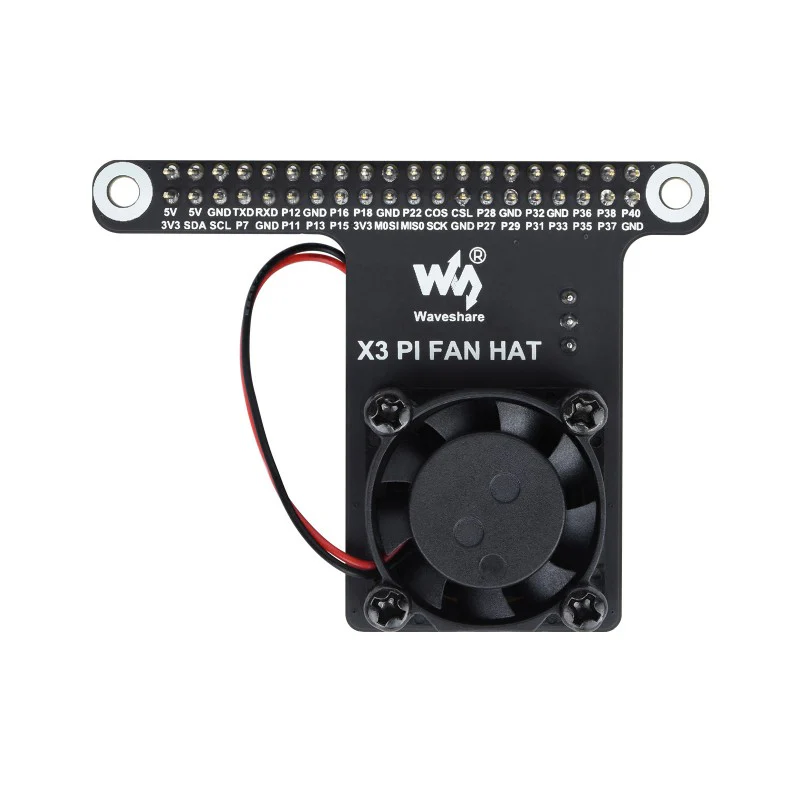

Standard 40PIN GPIO stackable header, with clear silkscreen labels for easier wiring and peripheral expansion

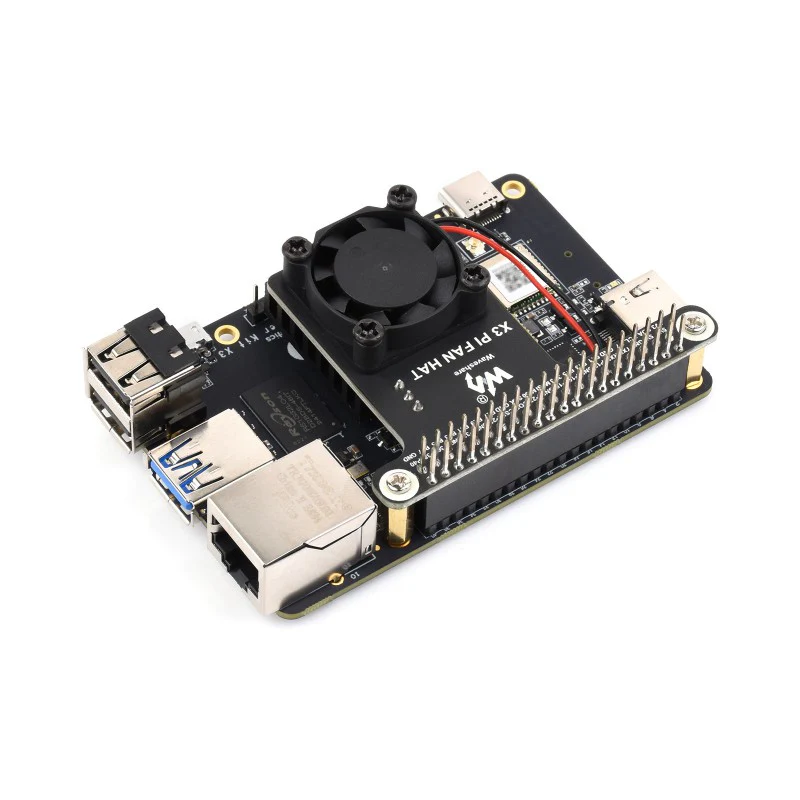

Product Show



Outline Dimensions



Package Content

Weight: 0.03 kg

X3 PI FAN HAT x1
