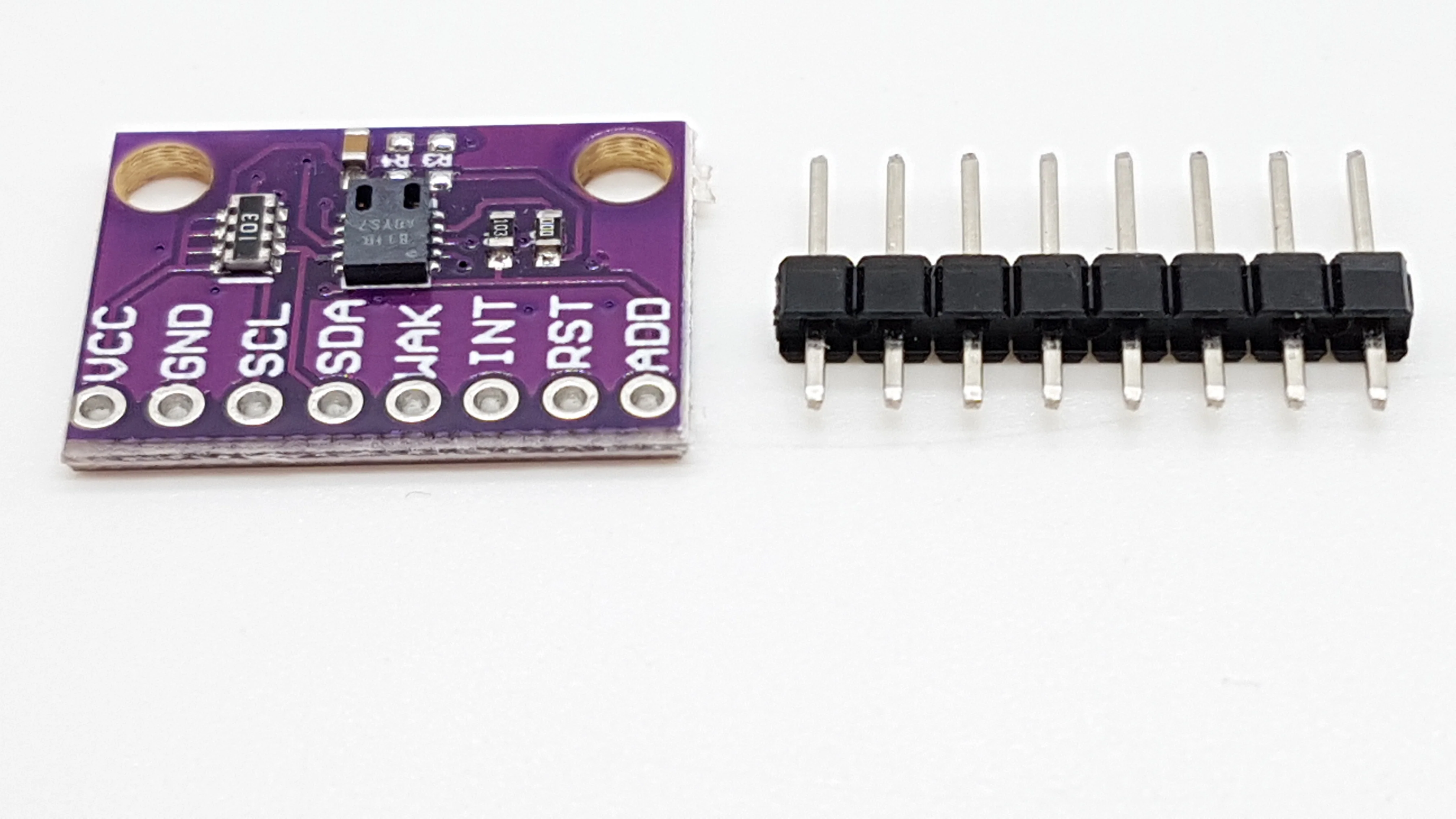

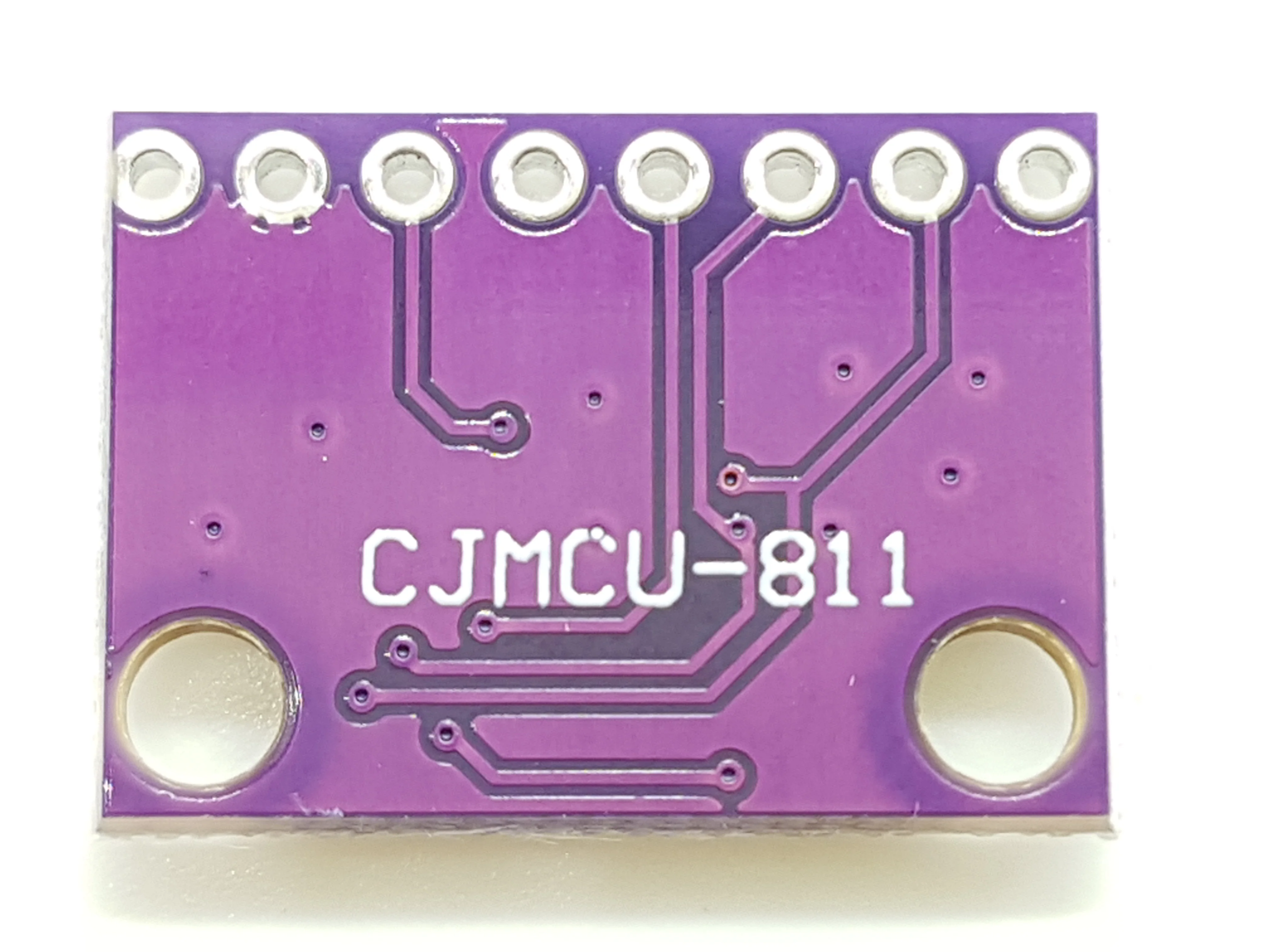

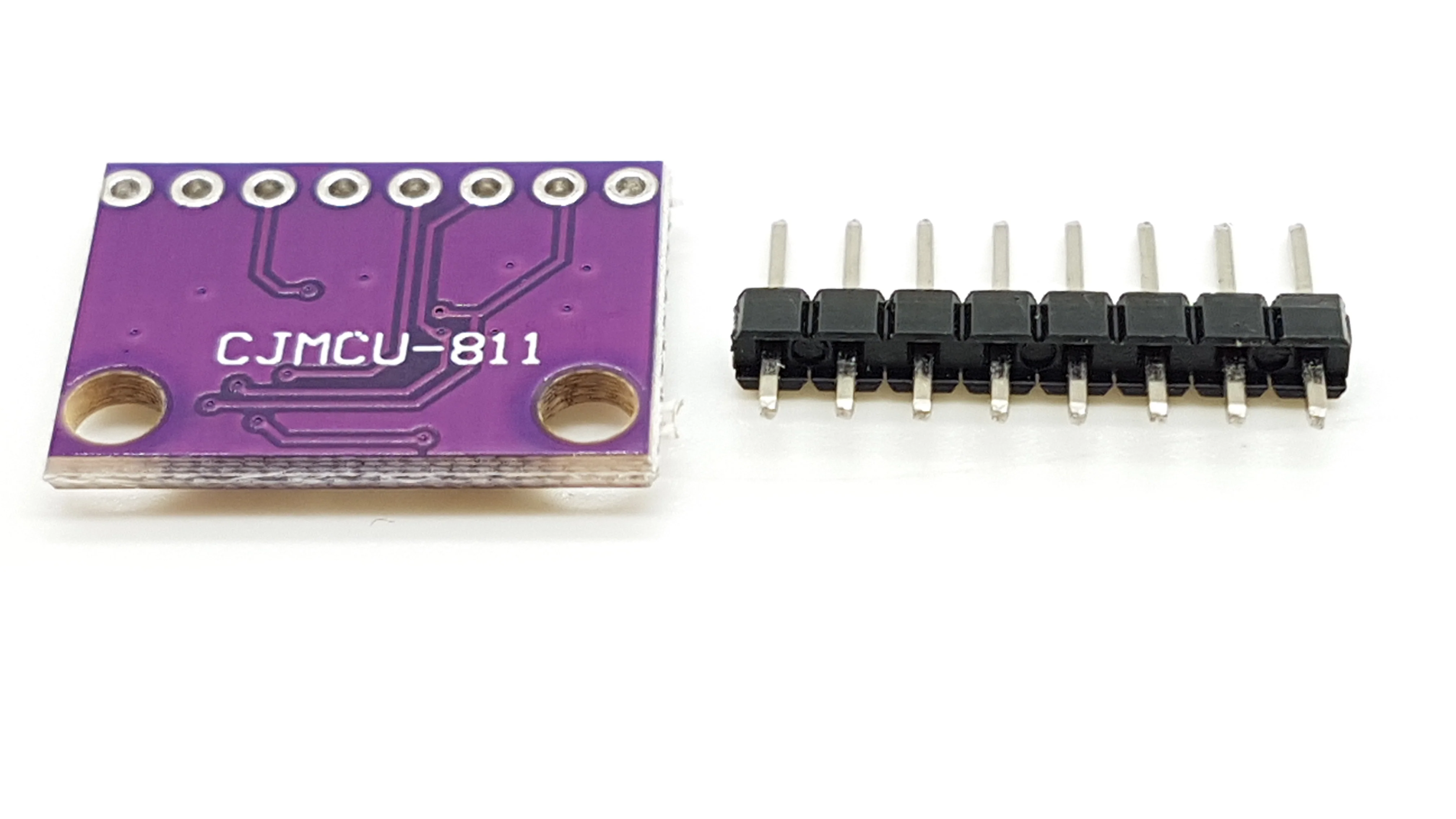

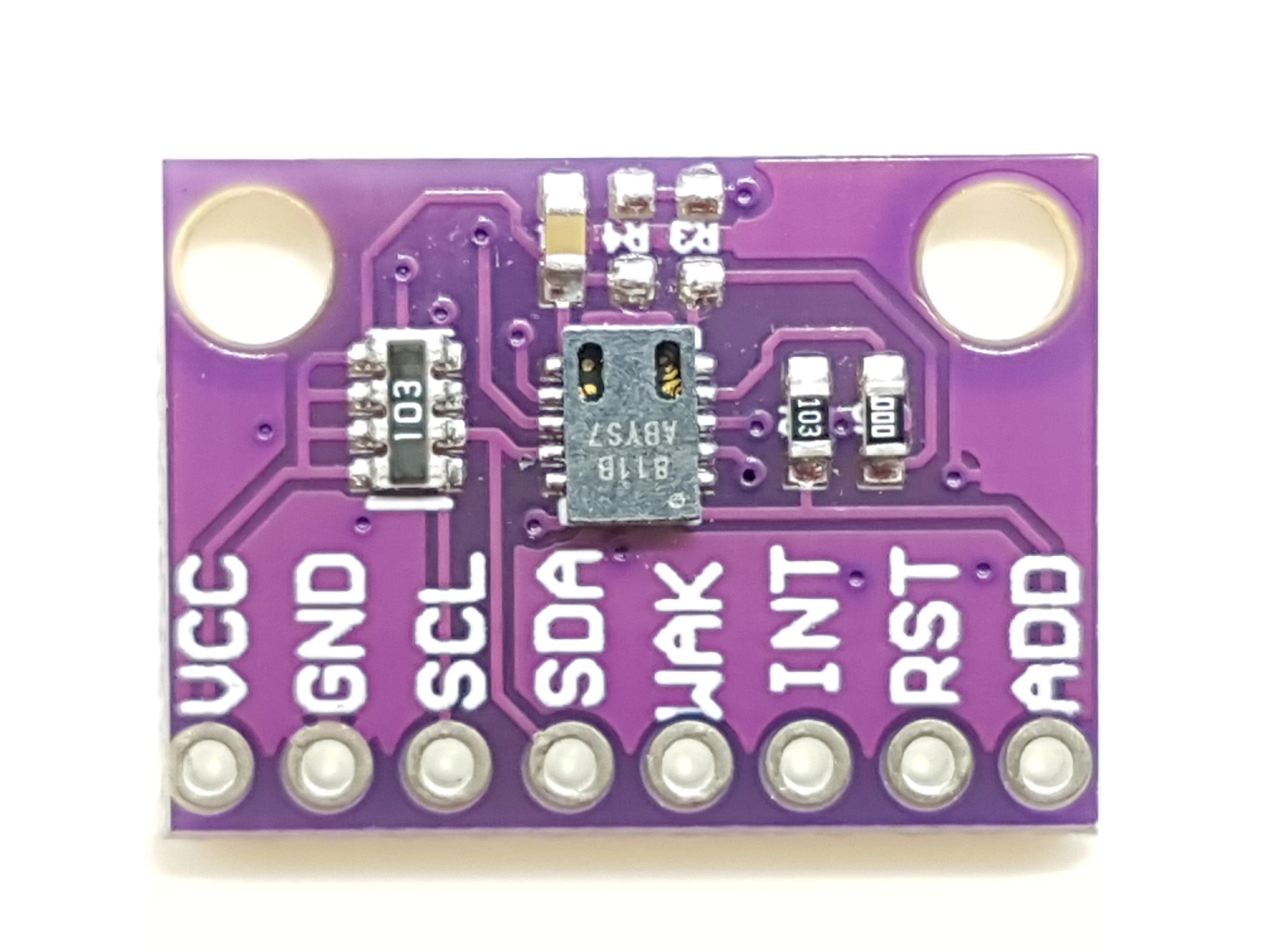

CCS811 Carbon Monoxide Gas Sensor
Description:
The CJMCU-811 is an ultra-low-power digital gas sensor that integrates a sensor and a CCS801-bit MCU with an analog-digital converter (ADC) for detecting indoor air quality, including carbon monoxide (CO) and a wide range of Volatile Organic compounds (VOCs).
Feature:
- Ultra-low power consumption can be used in battery powered equipment
- High sensitivity, fast heating
- Intelligent algorithm calculates TVOC / eCO2 values
- I2C signal output, direct communication with the main system
Characteristics:
- Metal oxide (MOX) sensors to monitor indoor air quality
- A-bit MCU is integrated to perform the 'first-level algorithm
- Adc built in for sensor readings and digitized conversions
- I2C slave interface can be connected directly to the master control system
- Reset / interrupt control
Specifications
Resources
Datasheet
Library
Sample Code
Tutorial
Select Soldered
From $5.71
Original: $19.05
-70%CCS811 Carbon Monoxide Gas Sensor—
$19.05
$5.71
Description
Description:
The CJMCU-811 is an ultra-low-power digital gas sensor that integrates a sensor and a CCS801-bit MCU with an analog-digital converter (ADC) for detecting indoor air quality, including carbon monoxide (CO) and a wide range of Volatile Organic compounds (VOCs).
Feature:
- Ultra-low power consumption can be used in battery powered equipment
- High sensitivity, fast heating
- Intelligent algorithm calculates TVOC / eCO2 values
- I2C signal output, direct communication with the main system
Characteristics:
- Metal oxide (MOX) sensors to monitor indoor air quality
- A-bit MCU is integrated to perform the 'first-level algorithm
- Adc built in for sensor readings and digitized conversions
- I2C slave interface can be connected directly to the master control system
- Reset / interrupt control
Specifications
Resources
Datasheet
Library
Sample Code
Tutorial
