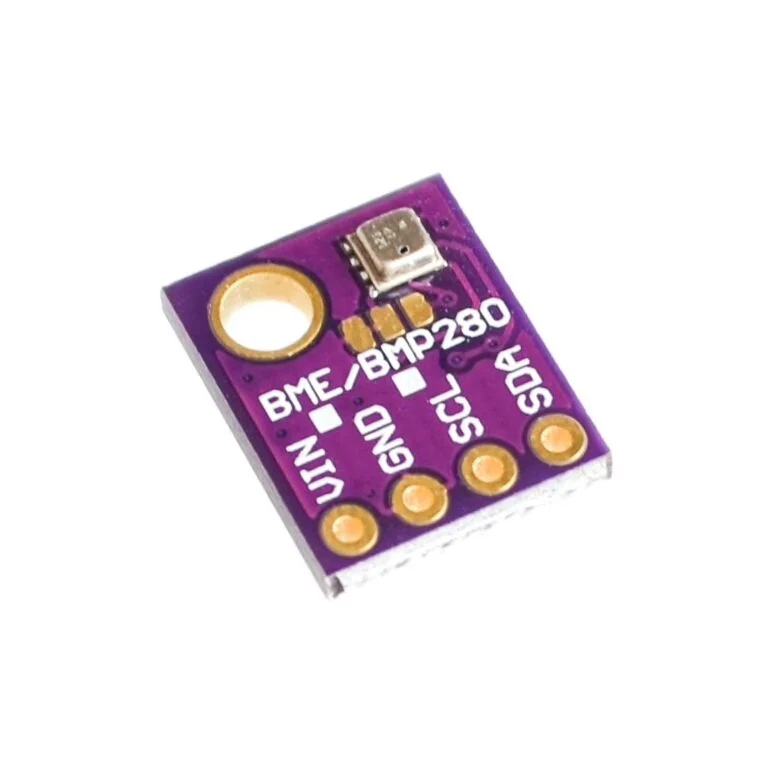

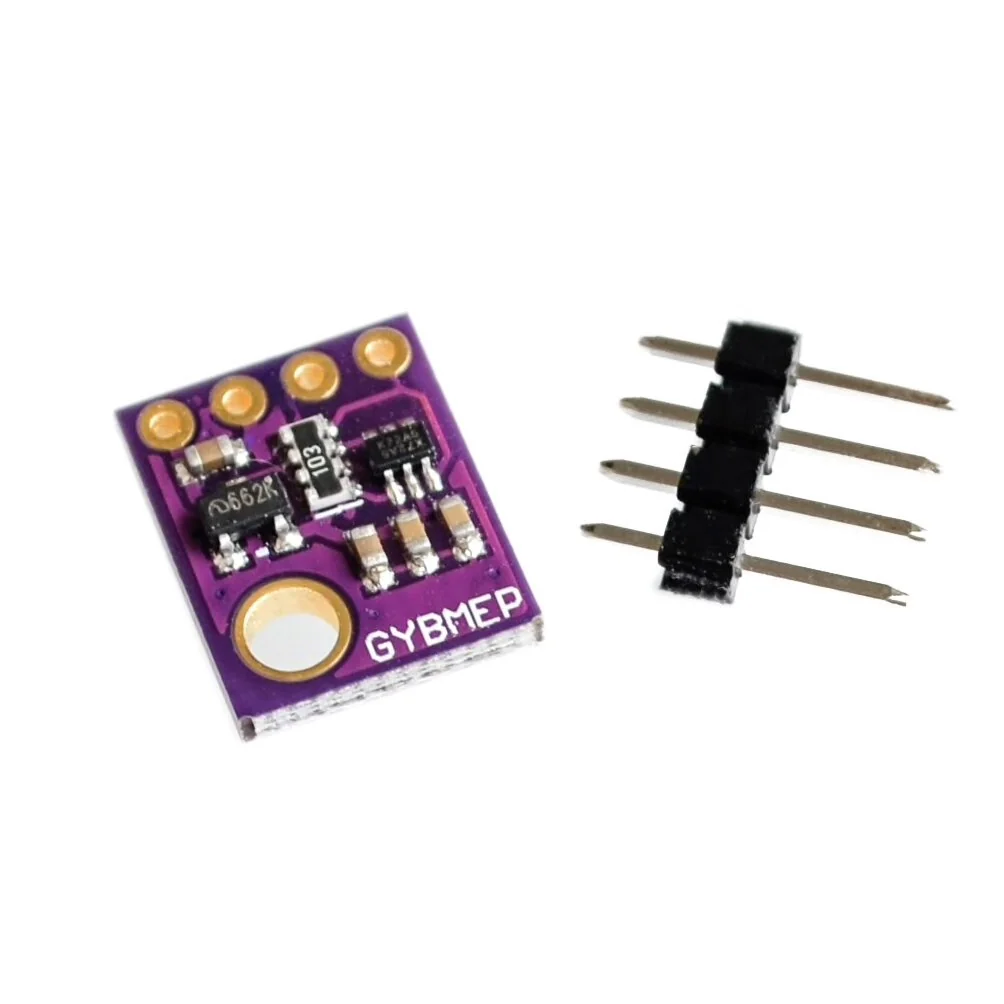

BME280 I2C Temperature Humidity Pressure Sensor Breakout (5V)

BME280 sensor, an environmental sensor with temperature, barometric pressure and humidity! This sensor is great for all sorts of weather/environmental sensing and can even be used in I2C.

This precision sensor from Bosch is the best low-cost sensing solution for measuring humidity with ±3% accuracy, barometric pressure with ±1 hPa absolute accuraccy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter or better accuracy!

The BME280 is the next-generation of sensors from Bosch and is the upgrade to the BMP085/BMP180/BMP183 - with a low altitude noise of 0.25m and the same fast conversion time. For simple easy wiring, go with I2C.

Supply Voltage: 1.8 - 5V DC

• Interface: I2C (up to 3.4MHz)
• Operational Range:
• Temperature: -40 to +85°C
• Humidity: 0-100%
• Pressure: 300-1100 hPa
• Resolution:
• Temperature: 0.01°C
• Humidity: 0.008%
• Pressure: 0.18Pa
• Accuracy:
• Temperature: +-1°C
• Humidity: +-3%
• Pressure: +-1Pa
• I2C address
• SDO LOW : 0x76
• SDO HIGH: 0x77
