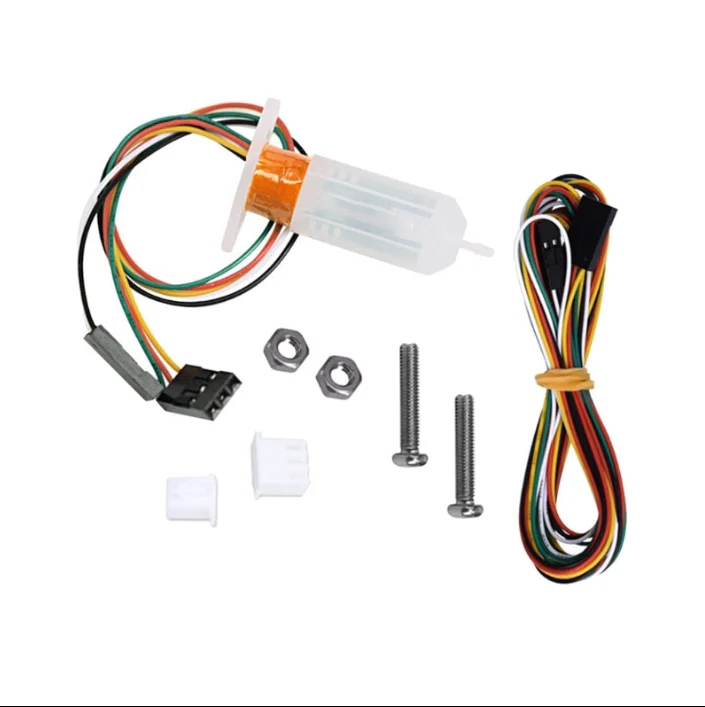

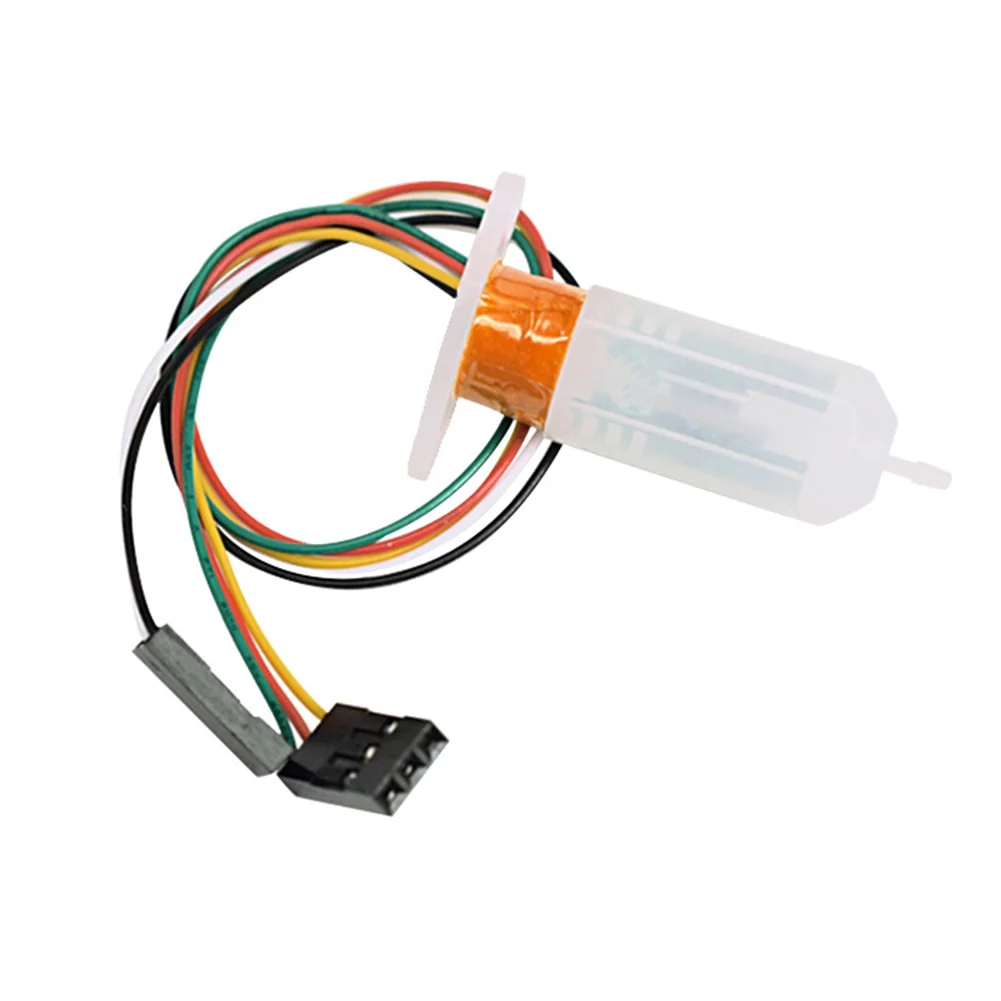

BL Touch Automatic Bed Leveling Sensor
BL Touch Precision Auto Bed Leveling Sensor Kit
- 3D Touch is an auto leveling sensor for 3D Printers that can precisely measure the tilt of your print surface. It greatly improves the printing precision of your 3D Printer.
- Works with almost any kind of bed material - glass, wood, metal, etc.
- Using progressively designed solenoids and Hall sensors, high precision is integrated in this simple mechanism.
- Suitable for Ender-3 / Ender-3s / Ender-3 Pro / Ender 5 / CR-10 / CR-10S / CR 10S4 / CR 10S5 / CR-20 / CR-20 Pro / Ultimaker 2/ Kossel / BLV / Voron / Anycubic mega and other 3D printers.
Specification:
- Color: White translucent
- Voltage: 5V
- Current: 15mA
- Maximum current (crest value): 300mA
- Shell material: PC
- Cable length: Short line: 200mm; long line: 1000mm
- Wiring:
- 3pin: Green: -GND; red: +5V; orange: signal wire
- 2pin: Black: -GND; white: Zmin
- Weight: 50g
$3.49
Original: $11.64
-70%BL Touch Automatic Bed Leveling Sensor—
$11.64
$3.49
Description
BL Touch Precision Auto Bed Leveling Sensor Kit
- 3D Touch is an auto leveling sensor for 3D Printers that can precisely measure the tilt of your print surface. It greatly improves the printing precision of your 3D Printer.
- Works with almost any kind of bed material - glass, wood, metal, etc.
- Using progressively designed solenoids and Hall sensors, high precision is integrated in this simple mechanism.
- Suitable for Ender-3 / Ender-3s / Ender-3 Pro / Ender 5 / CR-10 / CR-10S / CR 10S4 / CR 10S5 / CR-20 / CR-20 Pro / Ultimaker 2/ Kossel / BLV / Voron / Anycubic mega and other 3D printers.
Specification:
- Color: White translucent
- Voltage: 5V
- Current: 15mA
- Maximum current (crest value): 300mA
- Shell material: PC
- Cable length: Short line: 200mm; long line: 1000mm
- Wiring:
- 3pin: Green: -GND; red: +5V; orange: signal wire
- 2pin: Black: -GND; white: Zmin
- Weight: 50g
