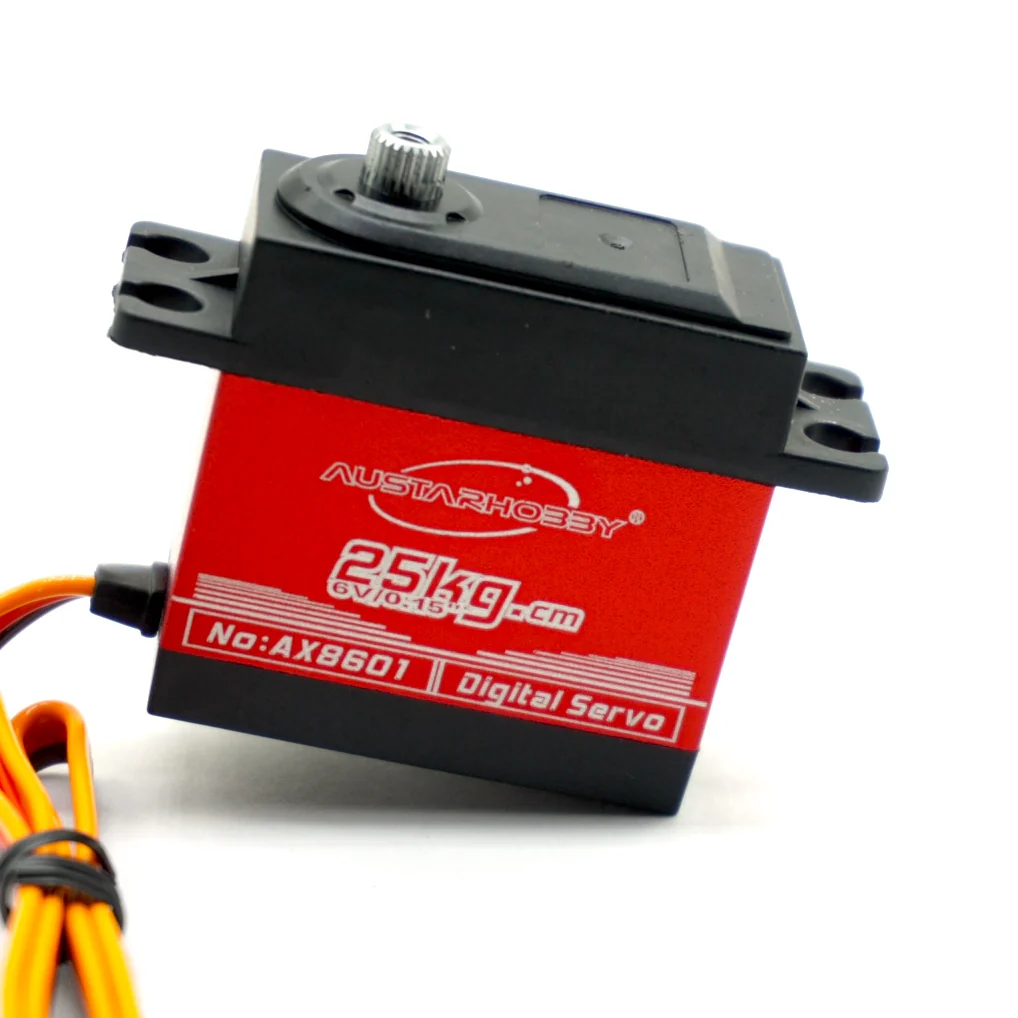

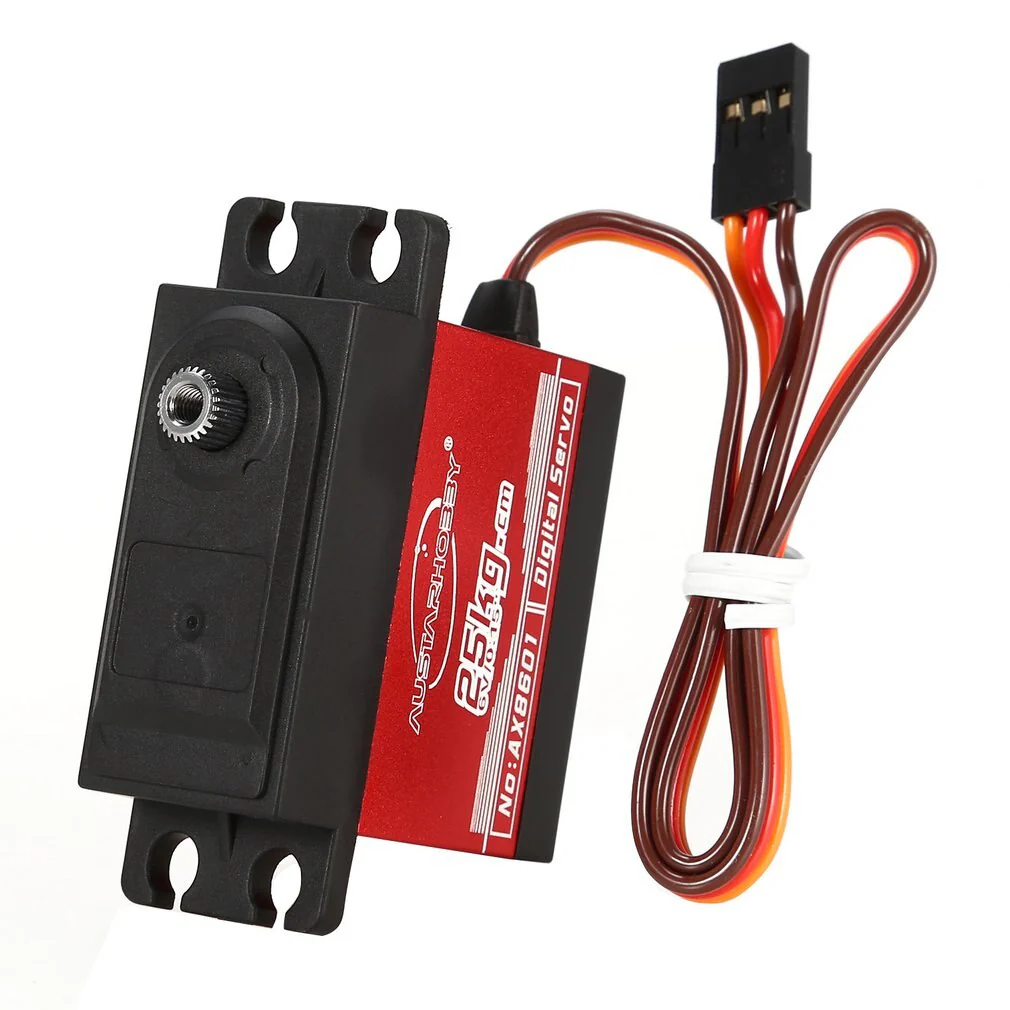

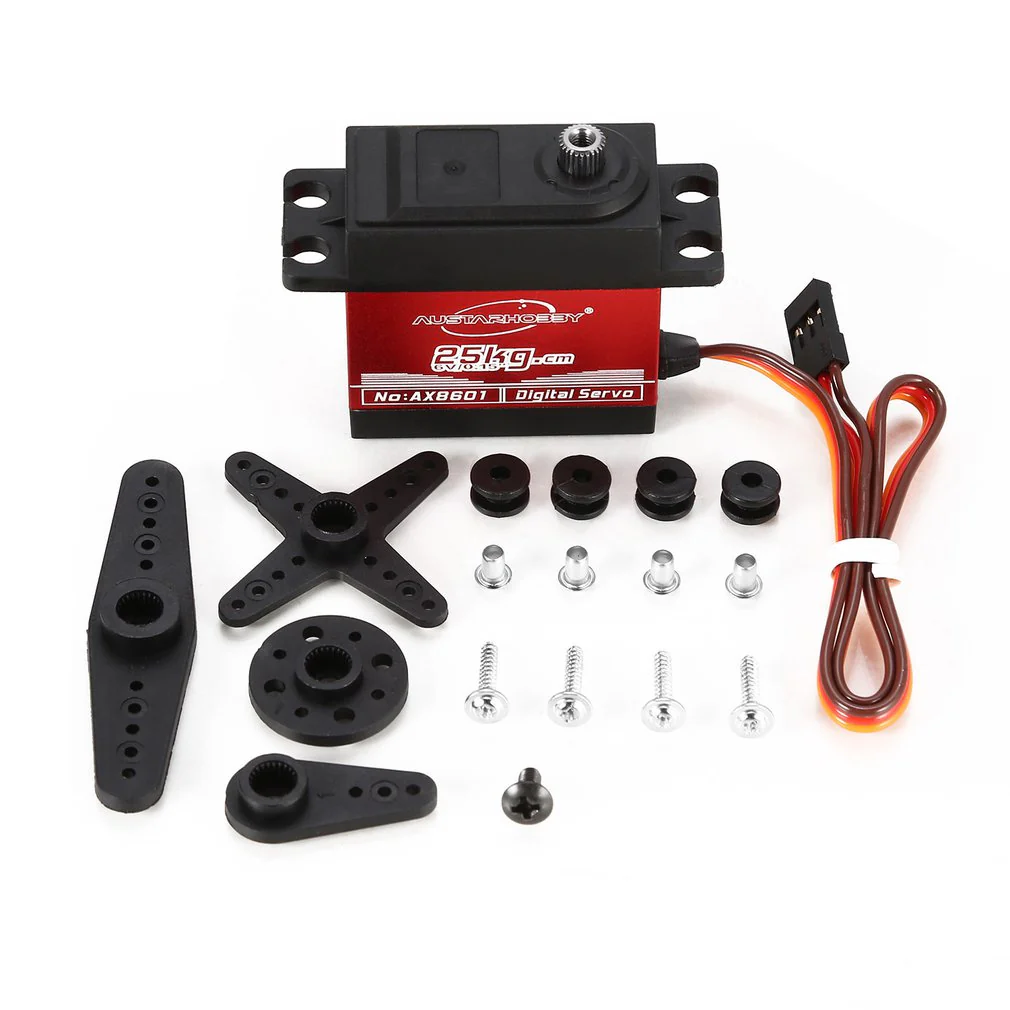

AUSTARHOBBY AX8601 25KG Waterproof High Torque High Speed Full Metal Gear Digital Servo

The AUSTARHOBBY AX8601 25KG Digital Servo features high torque, metal gear, fast heat dissipation, high sensitivity and responsiveness. It is tailored for RC hobbyists and intense applications.

Features:

• Large torque - 25kg. cm ( 6.0V )
• Waterproof IP66
• High-precision metal gear with hard anodizing for better accuracy and longer service life
• CNC aluminium shell enhances heat dissipation
• Common applications are in robots, mechanical arms, climbing cars and remote controlled vehicles.

Specifications:

• Brand: AUSTARHOBBY
• Item name: AX8601
• Digital Servo Operating voltage: 4.8 - 6.0V
• Operating speed ( 6.0V ): 0.15 sec / 60 degree
• Stall torque ( 6.0V ): 25kg/cm
• Dead band: 4µs
• Neutral position: 1500µs / 330hz
• Connector wire: About 270mm
• Gear type: Metal
• Angle: 130-160
• Motor Type: Core motor
• Size: 40 * 40 * 20mm
• Weight: 60g
• Size: 11.1 * 5.6 * 2.4 cm / 4.31 * 2.15 * 0.95 in
