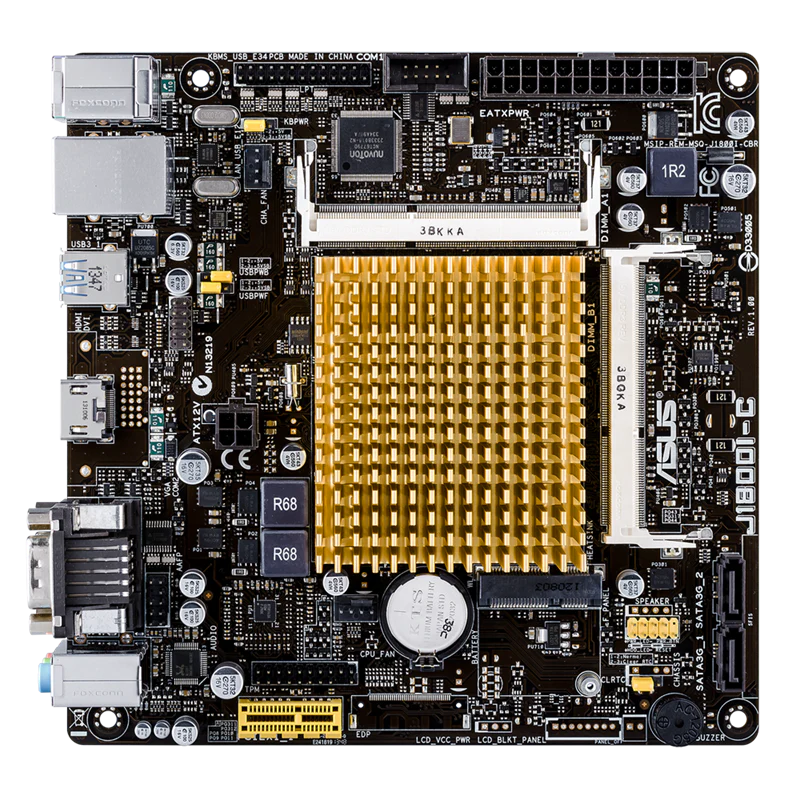

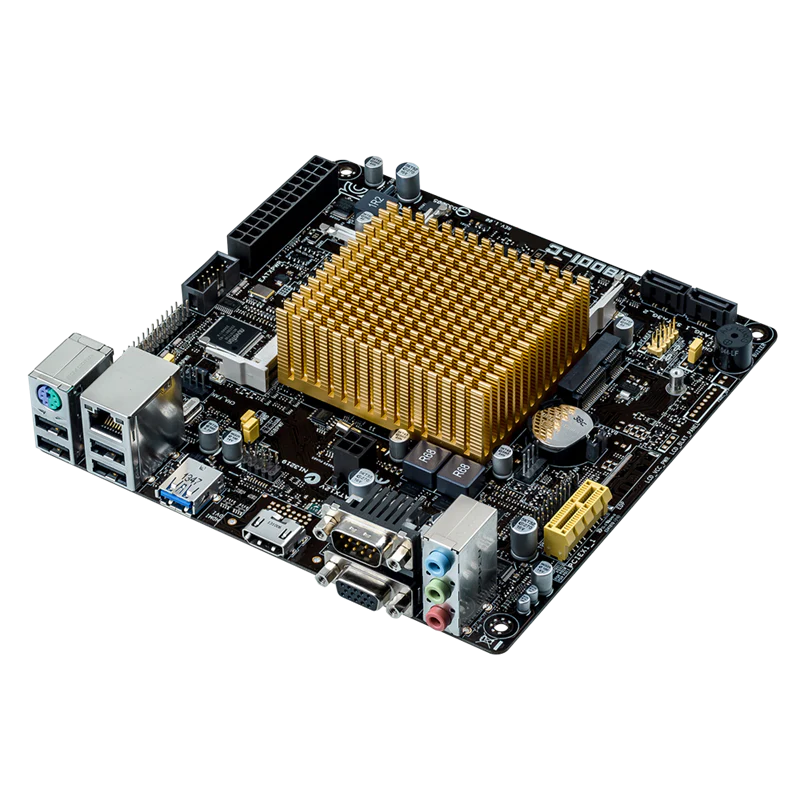

Asus J1800I-C | Intel Celeron J1800 SoC CPU board

Compact and great value Intel Celeron J1800 SoC CPU board with HDMI and USB 3.0

New UEFI BIOS and EZ Mode	Friendlier, easier, and more intuitive with helpful info added
USB 3.0 BOOST (UASP Support)	170% faster transfer speeds than traditional USB 3.0
Network iControl	Real-time network bandwidth management
CrashFree BIOS 3	Restore corrupted BIOS data from USB storage
AI Suite 3	One-stop access to innovative ASUS features





CPU and Chipset Features

Power efficiency plus high-resolution graphics, thanks to the integrated Intel Celeron Dual-Core SoC Processor J1800 with HD Graphics support.

This motherboard features an integrated Intel Celeron® Dual-Core Processor J1800 and Intel HD Graphics. This revolutionary 22nm ultra-low voltage SoC (System on a Chip) combines superb processing power and advanced HD graphics support in one small, energy efficient design. Despite minimal power requirements, it still has the processing power to display the latest DirectX® 11 HD graphics. It features support for dual independent displays with resolutions up to 2500x1600 and also has integrated USB 3.0 support.



Intel Smart Connect Technology
Auto application refresh and shorter wait times

Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience.



New UEFI BIOS

New UEFI BIOS – friendlier and more intuitive
Exclusive EZ Mode adds useful info to become even easier

Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.



Fast Clock Adjustment	Easily change the time and date in EZ Mode using the mouse.
EZ XMP Settings	Quickly apply XMP settings in UEFI BIOS EZ Mode, achieving better DRAM performance.
EZ Fan Settings	As demanded by the community, detailed fan controls come to EZ Mode so you can switch fan profiles for quick cooling and noise-level supervision.
SATA Information	Displays each SATA port details for you to easily recognize devices.



Performance Optimization

USB 3.0 Boost (UASP Support)
170% faster transfer speeds than traditional USB 3.0

ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.

- World’s 1st USB 3.0 UASP support – instantly 170% faster.

- Complete USB 3.0 solution – performance boost under Turbo Mode or UASP Mode for most USB devices.

- Simple plug and boost – auto detection design ensures best performance.

Stainless Steel Back I/O

3X more durable corrosion-resistant coating

ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a usage life three times longer compared to ordinary panels.



Specifications

CPU	Intel® Celeron® dual-core J1800 Processor
Memory	2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz, Non-ECC, Un-buffered
Graphics	Dual Channel Memory Architecture Integrated Graphics Processor Multi-VGA output support (HDMI/RGB ports) - HDMI max. resolution: 1920 x 1080 @ 60 Hz - RGB max. resolution: 2560 x 1600 @ 60 Hz Max shared memory: 512MB Supports DirectX 11
Expansion Slots	1 x PCIe 2.0 x1 1 x mini-PCIe
Storage	2 x SATA 3Gb/s ports (dark brown) Supports Intel® Smart Connect Technology
LAN	Realtek® RTL8111G, 1 x Gigabit LAN Controller
Audio	Realtek® ALC887-VD 8-Channel HD Audio CODEC Supports: Jack-detection, Front Panel Jack-retasking
USB Ports	1 x USB 3.0 port (back panel, blue) 6 x USB 2.0 ports (4 back panel, 2 mid-board)
ASUS Exclusive Features	AI Suite 3, Ai Charger, Anti-Surge ASUS UEFI BIOS EZ Mode with graphical interface Network iControl, USB 3.0 Boost
Cooling & DIY Features	ASUS Fan Xpert ASUS CrashFree BIOS 3 ASUS EZ Flash 2 ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors
OS Support	Windows® 8.1, Windows® 8, Windows® 7

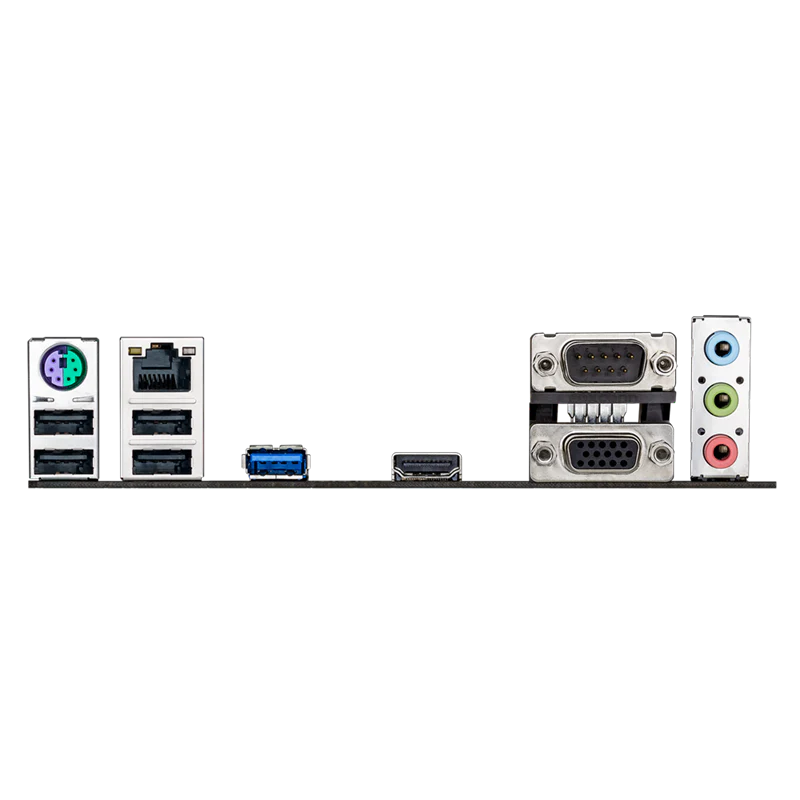

Back I/O Ports	1 x PS/2 keyboard/mouse combo port 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) 1 x USB 3.0 4 x USB 2.0 1 x COM port 3 x Audio jacks
Internal I/O Ports	1 x USB 2.0 header (supports 2 additional ports) 1 x TPM header 1 x LPT header 1 x COM header 2 x SATA 3Gb/s 1 x CPU fan connector 1 x Chassis fan connector 1 x 24-pin EATX Power connector 1 x 4-pin ATX 12V Power connector 1 x Front panel audio (AAFP) 1 x System panel 1 x Clear CMOS jumper 1 x Buzzer
BIOS	64 Mb Flash ROM, UEFI AMI BIOS Supports: PnP, DMI 2.0, WfM 2.0, SM BIOS 2.7, ACPI 2.0a Features: ASUS EZ Flash 2, CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 Screenshot, F3 Shortcut, DRAM SPD Info
Manageability	WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc	Drivers, ASUS Utilities, EZ Update, OEM Antivirus Software
Form Factor	Mini ITX (6.7 x 6.7 in / 17 x 17 cm)
Notes	*1: Use chassis with HD audio module for 8-channel audio support. *2: mini-PCIe slot does not support USB Bluetooth signals. *3: Update BIOS and drivers to support Windows 7.



Package Content

1x Asus J1800I-C
1x User's Manual
1x I/O Shield
2 x SATA 3Gb/s cable(s)
1x Support Disc: Drivers
