Arducam IMX219

Visible Light Fixed Focus Camera Module for Raspberry Pi



No less than the Raspberry Pi official camera V2, this camera module is also equipped with a high-definition IMX219 8MP sensor for shooting HD video and still images. It is excellent in image quality, color fidelity, and low light.

For beginners, this is a very easy camera module to get started; for advanced players, this camera module has more knowledge that you should explore and DIY.



Applications

• Unmanned Aerial Vehicles (UAVs)
• Building Drones
• Autonomous Robotic Systems
• Mobile Medical Imaging
• Intelligent Video Analytics (IVA)



Features

• 8MP HD Camera: Designed for Raspberry Pi, based on Sony 8MP IMX219 Sensor.
• Higher quality: Compared with the official Raspberry Pi Camera v1, not only the resolution is improved, but its image quality, color fidelity, and low light performance are all upgraded by leap.
• 1080P High resolution: Supports 3280 ¡Á 2464 pixel still images, and still captures.
• Easy to setup: Simply use the 15pin ribbon cable to attach the CSI port on the Raspberry Pi, then make a simple configuration and you are ready to use the camera.
• Easy to use for beginners, and for advanced gamers, it offers more to explore.
• Wide Application: Perfect for time-lapse, slow motion, home security applications, monitoring Octoprint 3D Printer, and wildlife camera trap applications.



Specifications

Camera

Image Sensor	IMX219
Still Resolution	8 Megapixels
Video Modes	1080p47, 1640 × 1232p41 and 640 × 480p206
Sensor Resolution	3280 × 2464 pixels
Sensor image area	3.68 x 2.76 mm (4.6 mm diagonal)
Pixel Size	1.12 µm x 1.12 µm
Optical Size	1/4"
IR Sensitivity	Integral IR-cut Filter, visible light only



Lens

Focus Type	Fixed Focus
Focal Length	3.04mm
F.NO	F2.0
Field of View(FOV)	62.2 °(H) x 48.8 °(V)
Lens Type	Stock Lens
Focus Distance	200mm to infinity



Electrical & Mechanical

Camera Board Size	25 x 24mm
Peaking Current	300mA

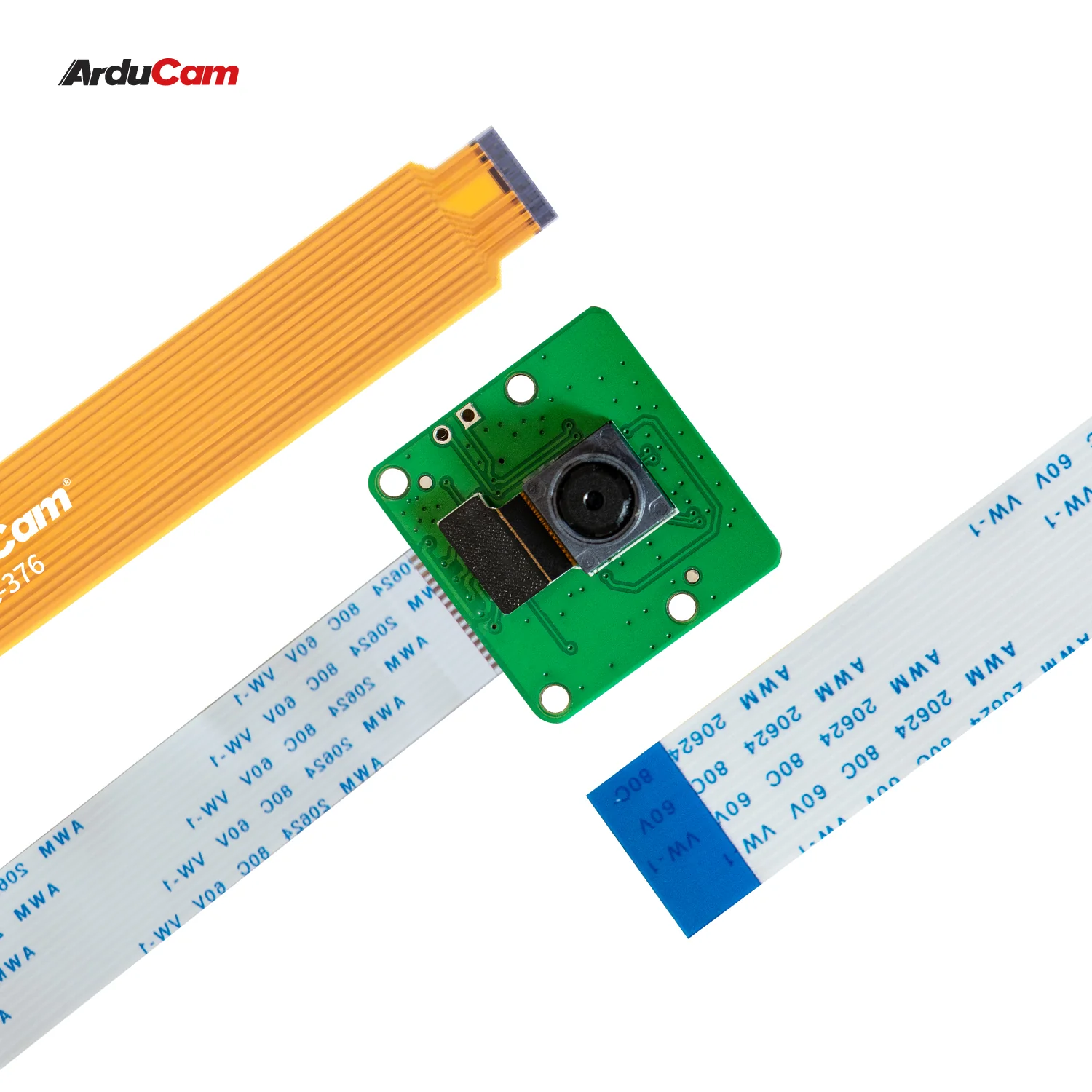

Package Including

• 1 x Arducam IMX219 Visible Light Fixed Focus Camera Module
• 1 x 15cm 15pin FPC cable
• 1 x 15cm 15pin to 22pin FPC cable
• 1 x 50cm 15pin FPC cable



Note

• Raspberry Pi board is not included in the package
• This camera module supports the latest Raspberry Pi OS Bullseye (January 28, 2022 and later) and libcamera apps and is not available for users of previous Raspberry Pi OS (Legacy).



Documentations

• Sensor Datasheet Sony IMX219
• Manual
• User Guide
