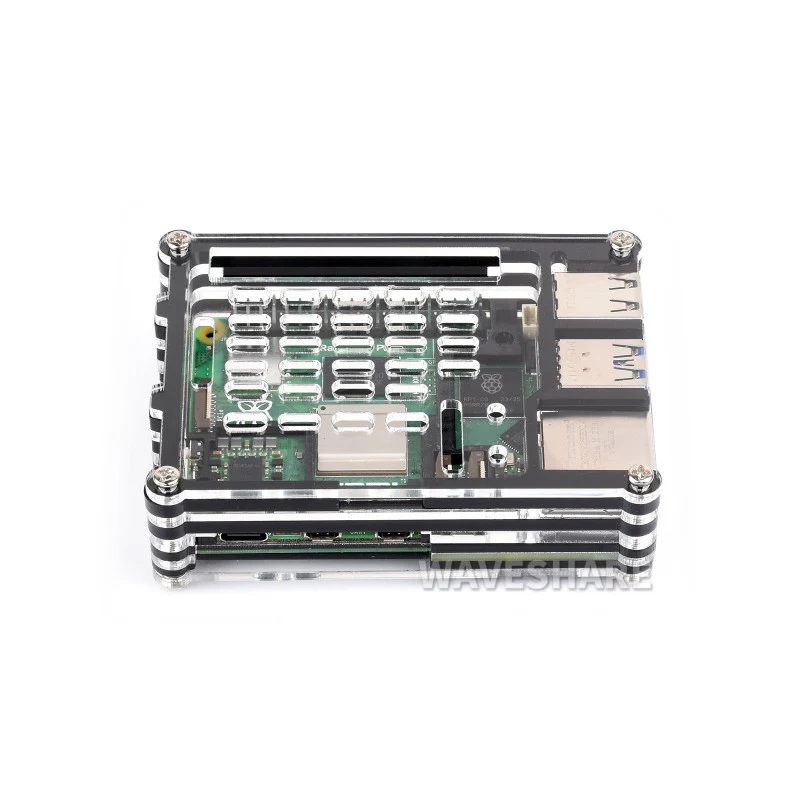

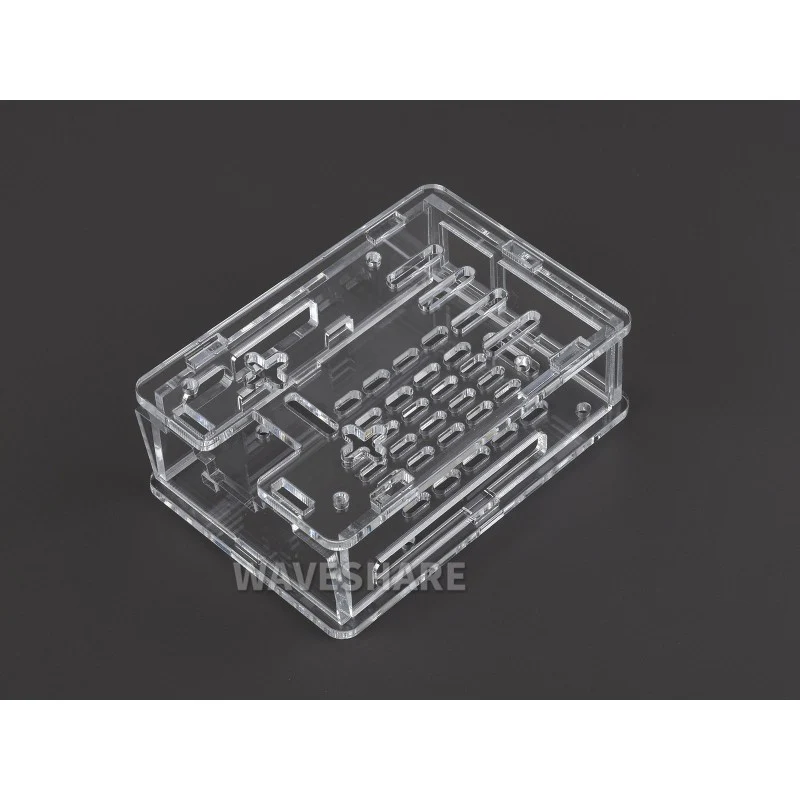

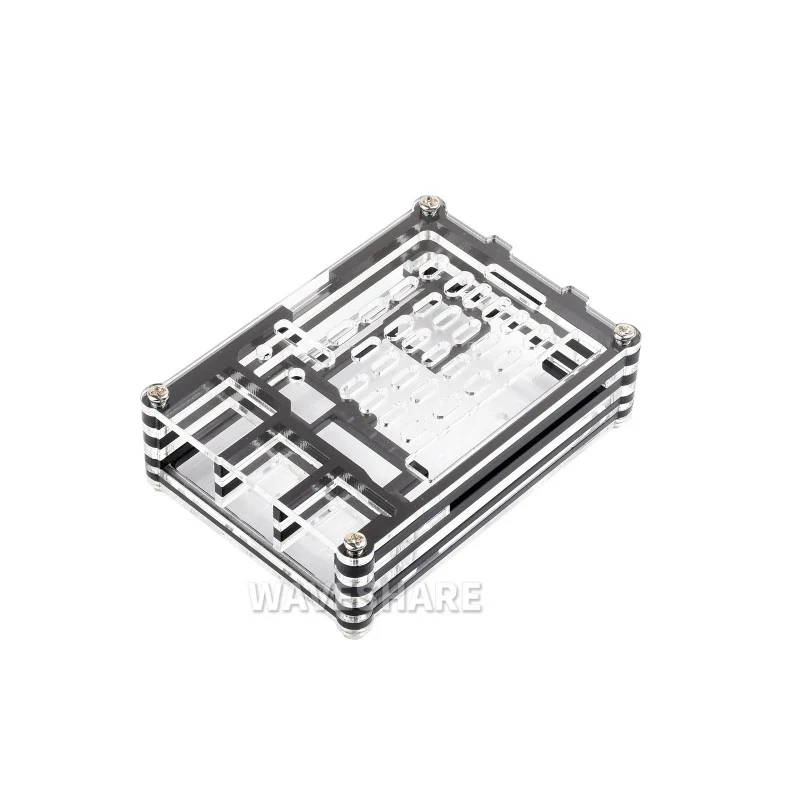

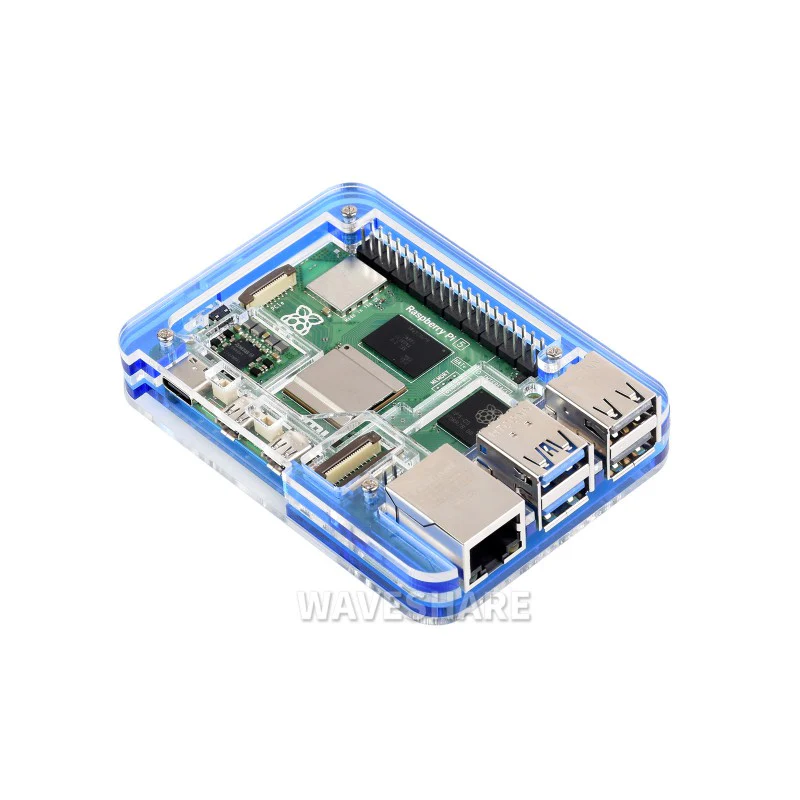

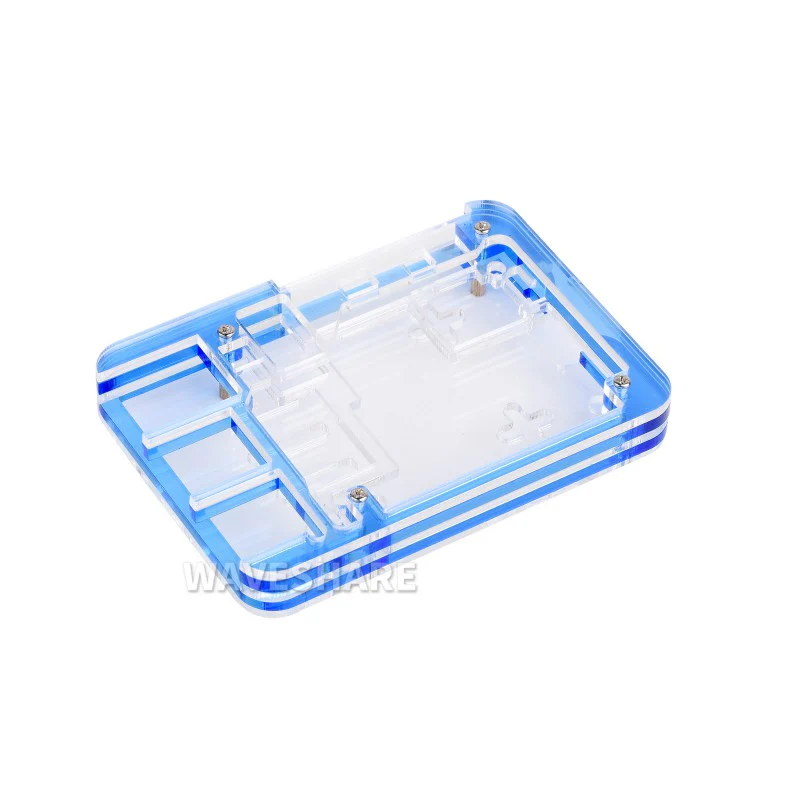

Transparent Acrylic Case For Raspberry Pi 5

* for reference only, the Raspberry Pi 5 is NOT included

Based On Raspberry Pi 5

Precise Openings For Sorts Of Connectors, Supports Installing Official Active Cooler (Not Included)



More Details

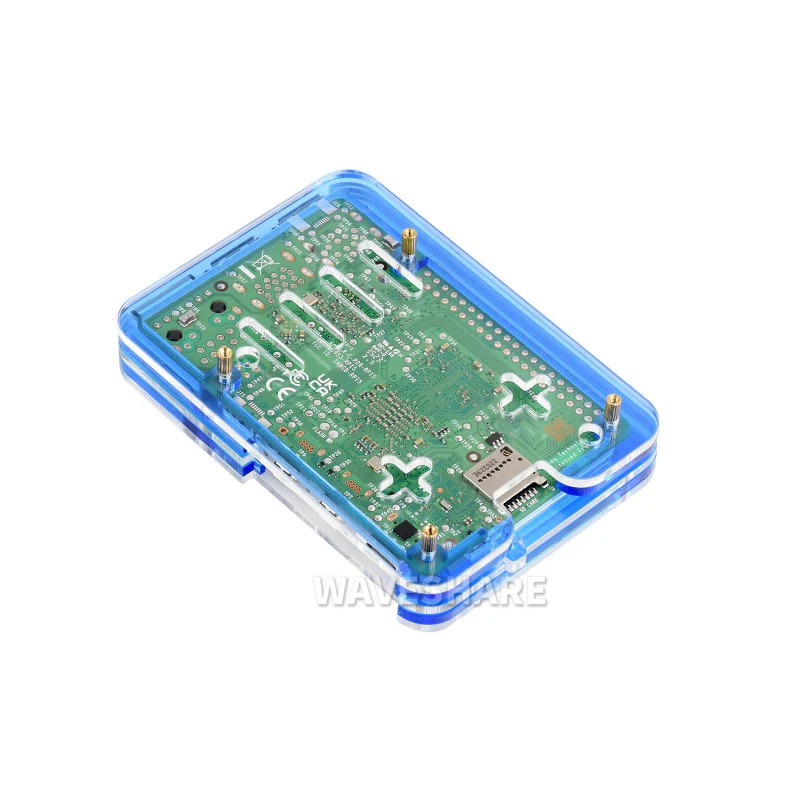

Openings For 40PIN GPIO, PCIe, DSI/CSI Interfaces And Airflow Vents On The Top And For RTC Battery Connector/UART Header On The Side, With Power On/Off Button. Easy To Pull & Plug TF Card On The Bottom



How To Install

The Case Consists Of 9 Layers Of Acrylic Panels, Please Install According To The Following Steps

1. Place the 1st, 2nd, and 3rd acrylic panels in order as shown, then place the Raspberry Pi 5 board.	2. Place the 4th acrylic panels on the Raspberry Pi 5, then install the power button.
3. Install the active cooler on the Raspberry Pi 5.	4. Place the 5th to 9th acrylic panels in order and fix them via screws, then install the nonskid rubber pads to the bottom.

* for reference only, the Raspberry Pi 5 and active cooler are NOT included.
if you need to install peripherals such as a camera and DSI display, please connect the peripheral cables first before installing the 9th acrylic panel.



Package Contents:

Weight: 0.063 kg
