3.5inch Capacitive Touch Display Module, 320×480 Resolution, Embedded with ST7796S Display Driver and FT6336U Capacitive Touch Controller
3.5inch Capacitive Touch Display Module, 320×480 Resolution, Embedded with ST7796S Display Driver and FT6336U Capacitive Touch Controller
3.5inch Capacitive Touch LCD Module
Embedded ST7796S Driver And FT6336U Capacitive Touch Control Chip
Comes with examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino
Features
> 320×480 resolution, 262K colors, clear and colorful displaying effect
> High touch screen transmittance, fast response and long lifetime
> Embedded with ST7796S driver chip and FT6336U capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
> Onboard TF card slot for storing more pictures, videos, music, etc.
> Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
> Onboard voltage translator, compatible with 3.3V / 5V operating voltage
> Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 320 × 480 pixels |
|---|---|---|---|
| DISPLAY DRIVER | ST7796S | TOUCH DRIVER | FT6336U |
| DISPLAY INTERFACE | 4-wire SPI | TOUCH INTERFACE | I2C |
| DISPLAY PANEL | IPS | TOUCH TYPE | Capacitive |
| PIXEL PITCH | 0.051 × 0.153 (mm) | TOUCH POINTS | Two-point touch |
| DISPLAY SIZE | 48.96 × 73.44 (mm) | MODULE SIZE | 61.00 × 92.44 (mm) |
3.5inch Touch Display
Embedded With ST7796S Driver Chip
And FT6336U Capacitive Touch Control Chip

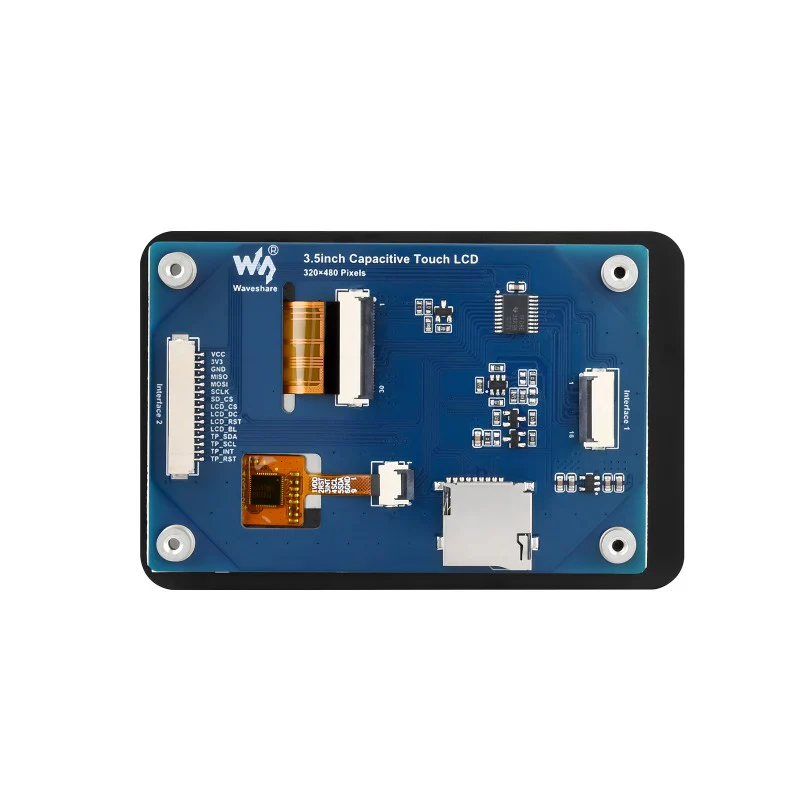

Onboard Voltage Translator
Compatible With 3.3V / 5V Operating Voltage
Onboard TF Card Slot
For Storing More Pictures Or Files
Suitable For Multiple Programming Platforms
Comes With Demos And Manuals For
Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino
More Convenient For Development And Integration, With High Expansibility
 Raspberry Pi |
 Raspberry Pi Pico 2 |
 ESP32 |
 Arduino Boards |
SPI And I2C Control Interfaces
Options For 15PIN Connector Or 18PIN FPC Slot
For Connecting The LCD To The Host Board
| PIN | DESCRIPTION | 15PIN PIN NO. |
18PIN PIN NO. |
|---|---|---|---|
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| 3V3 | Power (3.3V input) | 2 | NC |
| GND | Ground | 3 | 3 |
| MISO | SPI MISO pin | 4 | 6 |
| MOSI | SPI MOSI pin | 5 | 5 |
| SCLK | SPI CLK pin | 6 | 4 |
| SD_CS | TF card chip selection, low active | 7 | 10 |
| LCD_CS | LCD chip selection, low active | 8 | 9 |
| LCD_DC | LCD data/command selection (high for data, low for command) | 9 | 7 |
| LCD_RST | LCD reset pin, low active | 10 | 8 |
| LCD_BL | LCD backlight pin | 11 | 2 |
| TP_SDA | Touch panel data pin | 12 | 14 |
| TP_SCL | Touch panel clock pin | 13 | 13 |
| TP_INT | Touch panel interrupt pin | 14 | 15 |
| TP_RST | Touch panel reset pin, low active | 15 | 12 |
Hardware Connection
Connecting with Raspberry Pi 5
Connecting with ESP32-S3
* for reference only, the Raspberry Pi 5 and ESP32-S3 driver board are NOT included, please check the Package Content for the detailed part list.
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/3.5inch_Capacitive_Touch_LCD
Package Contents:
Weight: 0.051 kg
3.5inch Capacitive Touch LCD x1
GH1.25 15Pin cable x1
FPC cable x1
