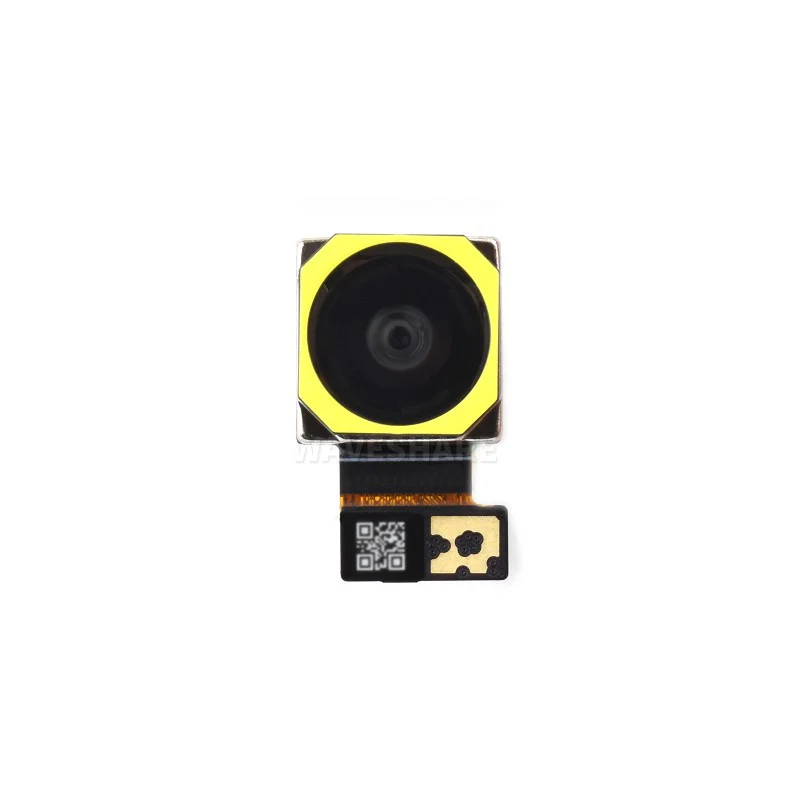

Raspberry Pi Camera Module 3 Sensor Assembly

Designed By Raspberry Pi

Version Options

Camera Module 3 Sensor Assembly Basic Standard version, 75° FOV	Camera Module 3 Sensor Assembly NoIR Basic NoIR version, 75° FOV, night vision support
Camera Module 3 Sensor Assembly Wide Wide Standard version, 120° FOV	Camera Module 3 Sensor Assembly Wide NoIR Wide NoIR version, 120° FOV, night vision support

Variants

Parameters	Basic	Basic NoIR	Wide	Wide NoIR
Focus Range	10cm ~ ∞	10cm ~ ∞	5cm ~ ∞	5cm ~ ∞
Focal Length	4.74mm	4.74mm	2.75mm	2.75mm
Diagonal FOV	75°	75°	120°	120°
Horizontal FOV	66°	66°	102°	102°
Vertical FOV	41°	41°	67°	67°
Focal Ratio (F-stop)	F1.8	F1.8	F2.2	F2.2
Infrared-Sensitive	No	Yes	No	Yes

Features

The Raspberry Pi Camera Module 3 Sensor Assembly contains the same sensor and autofocus functionalities as Raspberry Pi Camera Module 3 AF (autofocus), enabling you to integrate the features of Camera Module 3 into a more diverse range of form factors. This assembly provides a low-cost way to add imaging capability to smaller devices, reducing manufacturing complexity and time to market.

As with Raspberry Pi Camera Module 3, the sensor assembly’s operation is fully supported by the libcamera library and the libcamera-based Picamera2 and rpicam-apps libraries, including its rapid autofocus feature; this provides a robust software environment to support the development of advanced features while making essential functionality simple to provide.

Specifications

Parameter	Details
Sensor	IMX708
Sensor Features	Dynamic Defect Pixel Correction (DPC) QBC re-mosaic function High dynamic range (HDR) support
Resolution	11.9MP (4608 × 2592)
Sensor Size	7.4 mm sensor diagonal
Pixel Size	1.4 μm × 1.4 μm
IR Cut Filter	Integrated in standard variants; not present in NoIR variants
Autofocus System	Phase Detection Autofocus
Operating Temperature	0°C ~ 50°C

Outline Dimensions

Standard version

Wide version

Resources & Services

Wiki: www.waveshare.com/wiki/Camera_Module_3_Sensor_Assembly

Package Content

Weight: 0.001 kg

Camera Module 3 Sensor Assembly

OPTIONS Camera Module 3 Sensor Assembly x1

Camera Module 3 Sensor Assembly Wide

OPTIONS Camera Module 3 Sensor Assembly Wide x1
