PCM5122 HIFI I2S DAC Audio Board for Raspberry Pi

Supports Stereo Encoding / Decoding And High-quality Audio Playback

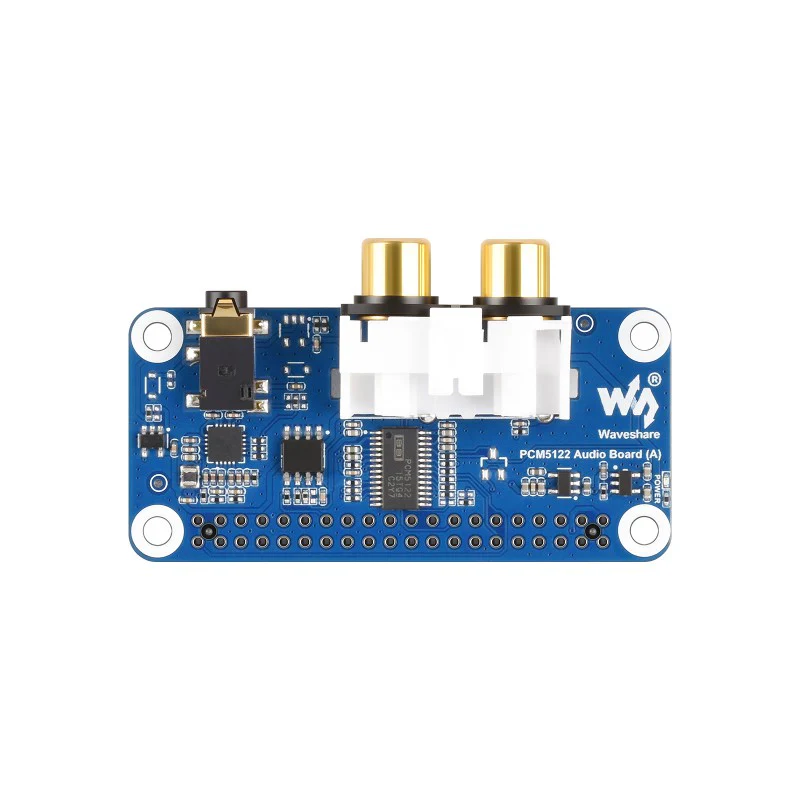

PCM5122-Audio-Board-A, front view

Features

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards

Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface

Onboard standard 3.5mm headphone jack, supports audio playback via external headphones

Built-in RCA connector for use with speaker and other devices in a variety of scenarios

Supports sampling frequency up to 384kHz

Supports up to 32-bit resolution audio data

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards

PCM5122-Audio-Board-A, based on Raspberry Pi 40PIN GPIO header

* for reference only, please refer to the package content for detailed part list.

Stereo decoder, controlled through I2C, with audio transmitted via I2S

PCM5122-Audio-Board-AM, onboard PCM5122 Audio Chip

Onboard standard 3.5mm headphone jack, supports audio playback via external headphones,
and features RCA connector for connecting external speaker

PCM5122-Audio-Board-A, Onboard Headphone & RCA connector

Used for automatic driver loading in Raspberry Pi OS

PCM5122-Audio-Board-A, onboard EEPROM Firmware

PCM5122-Audio-Board-A, pin definition

PCM5122-Audio-Board-A, outline dimensions

WIKI: www.waveshare.com/wiki/PCM5122-Audio-Board-A

Weight: 0.008 kg

PCM5122 Audio Board (A) x1
2*20pin header x1
Screws pack x1
