Portenta H7 is Arduino Iot Cloud compatible

Portenta H7 simultaneously runs high level code along with real time tasks. The design includes two processors that can run tasks in parallel. For example, is possible to execute Arduino compiled code along with MicroPython one, and have both cores to communicate with one another. The Portenta functionality is two-fold, it can either be running like any other embedded microcontroller board, or as the main processor of an embedded computer.

Portenta can easily run processes created with TensorFlow™ Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other could be making low-level operations like controlling a motor, or acting as a user interface.

Use Portenta when performance is key, among other cases, we envision it to be part of:

High-end industrial machinery
Laboratory equipment
Computer vision
PLCs
Industry-ready user interfaces
Robotics controller
Mission-critical devices
Dedicated stationary computer
High-speed booting computation (ms)

Two Parallel Cores

H7's main processor is the dual core STM32H747 including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Both processors share all the in-chip peripherals and can run:

Arduino sketches on top of the Arm® Mbed™ OS
Native Mbed™ applications
MicroPython / JavaScript via an interpreter
TensorFlow™ Lite

Graphics Accelerator

Probably one of the most exciting features of the Portenta H7 is the possibility of connecting an external monitor to build your own dedicated embedded computer with a user interface. This is possible thanks to the STM32H747 processor's on-chip GPU, the Chrom-ART Accelerator™. Besides the GPU, the chip includes a dedicated JPEG encoder and decoder.

A new standard for pinouts

The Portenta family adds two 80 pin high density connectors at the bottom of the board. This ensures scalability for a wide range of applications by simply upgrading your Portenta board to the one suiting your needs.

On-board Connectivity

The onboard wireless module allows to simultaneously manage WiFi and Bluetooth® connectivity. The WiFi interface can be operated as an Access Point, as a Station or as a dual mode simultaneous AP/STA and can handle up to 65 Mbps transfer rate. Bluetooth® interface supports Bluetooth Classic and Bluetooth® Low Energy. It is also possible to expose a series of different wired interfaces like UART, SPI, or I2C, both through some of the MKR styled connectors, or through the new Arduino industrial 80 pin connector pair. The 80-pin connector pair provides additional features including Ethernet.

USB-C Multipurpose Connector

The board's programming connector is a USB-C port that can also be used to power the board, as a USB Hub, to connect a DisplayPort monitor, or to deliver power to OTG connected devices.

Multiple options in one board

Order the default Arduino Portenta H7 (codename H7-15EUNWAD) that comes with:

STM32H747 dual-core processor with graphics engine
8MB SDRAM
16MB NOR Flash
10/100 Ethernet Phy
USB HS
NXP SE050C2 Crypto
WiFi/BT Module
External Antenna
DisplayPort over USB-C

If you need more memory, Portenta H7 can host up to 64 MByte of SDRAM, and 128 MByte of QSPI Flash. Decide between crypto-chips from Microchip® and NXP. The board is highly customizable in volumes, ask our sales representatives for options.

The basic configurations you can consider to get the board to accommodate to your needs and budget are:

Option	Description	Option Codes
SDRAM	external SDRAM memory	0 - None 1 - 8 MByte 2 - 16 MByte 3 - 32 MByte 4 - 64 MByte
FLASH	external QSPI Flash Memory	0 - None 1 - 2 MByte (NOR) 5 - 16 MByte (NOR) 8 - 128 MByte (NAND)
Ethernet	10/100 Ethernet PHY	0 - None E - Fitted
HS USB	High Speed USB PHY	0 - None U - Fitted
Crypto	Crypto Chip	0 - None M - ATECC608A N - SE050C2
Wireless	Wireless Module	0 - None W - Fitted
Antenna	Antenna option	0 - None C - UFL connector
Video	Displayport output over USB-C	0 - None D - Fitted

Arduino IoT Cloud

Use your Portenta board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.

TRY THE ARDUINO IOT CLOUD FOR FREE

Need Help?

Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. Need any help with your board please get in touch with the official Arduino User Support as explained in our Contact Us page.

Warranty

You can find here your board warranty information.

Technical Specifications

The Arduino Portenta H7 is based on the STM32H747 microcontroller, XI series.

Microcontroller	STM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)
Radio module	Murata 1DX dual WiFi 802.11b/g/n 65 Mbps and Bluetooth® (Bluetooth® Low Energy. 5 via Cordio stack, Bluetooth® Low Energy 4.2 via Arduino Stack) (datasheet)
Secure Element (default)	NXP SE0502 (datasheet)
Board Power Supply (USB/VIN)	5V
Supported Battery	Li-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
Circuit Operating Voltage	3.3V
Display Connector	MIPI DSI host & MIPI D-PHY to interface with low-pin count large display
GPU	Chrom-ART graphical hardware Accelerator™
Timers	22x timers and watchdogs
UART	4x ports (2 with flow control)
Ethernet PHY	10 / 100 Mbps (through expansion port only)
SD Card	Interface for SD Card connector (through expansion port only)
Operational Temperature	-40 °C to +85 °C
MKR Headers	Use any of the existing industrial MKR shields on it
High-density Connectors	Two 80 pin connectors will expose all of the board's peripherals to other devices
Camera Interface	8-bit, up to 80 MHz
ADC	3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
DAC	2× 12-bit DAC (1 MHz)
USB-C	Host / Device, DisplayPort out, High / Full Speed, Power delivery

Pinout Diagram

The Portenta H7 follows the Arduino MKR form factor, but enhanced with the Portenta family 80 pin high-density connector. Learn more about the board's pinout by reading the board's pinout documentation.

Download the full pinout diagram as PDF here.

Additional I2C Port

The Portenta H7 has an additional connector meant as an extension of the I2C bus. It's a small form factor 5-pin connector with 1.0 mm pitch. The mechanical details of the connector can be found in the connector's datasheet.

The I2C port, also referred to as the Eslov self-identification port within Arduino, comes with: SDA, SCL, GND, +5V, and an extra digital pin meant to send an alarm to the otherwise plain I2C devices connected to it. The pinout is shown in the following image:

If you are interested in designing your own modules for Arduino boards with this expansion port, the connector we suggest using is code: SHR-05V-S-B, also in the picture.

FAQ

Special Configuration Request

The Portenta H7 is a highly configurable design, it is possible to order boards with different configurations of memory, crypto chip, antenna, etc. These request will be channelled through Arduino's sales team and will require a minimum amount order. We recommend you try the default H7 configuration and if you need specific features for your solution, then contact us to discuss the terms.

Batteries, Pins and board LEDs

Battery capacity: Rechargeable Li-Ion, or Li-Po. Please make sure the battery connector suits your battery.
Vin: This pin can be used to power the board with a regulated 5V source. If the power is fed through this pin, the USB power source is disconnected. This is the only way you can supply 5v (range is 5V to maximum 6V) to the board not using USB. This pin is an INPUT.
5V: This pin outputs 5V from the board when powered from the USB connector or from the VIN pin of the board. It is unregulated and the voltage is taken directly from the inputs.

Arduino Professional Series

Arduino Portenta X8

Arduino Portenta H7 Lite Connected

Arduino Portenta CAT.M1/NB IOT GNSS Shield

Arduino Portenta Breakout

Arduino Edge Control

Arduino NICLA SENSE ME

Arduino Portenta H7 Lite

Arduino Portenta H7

Arduino® Protenta Vision Shield - LoRa®

Arduino Protenta Vision Shield Ethernet

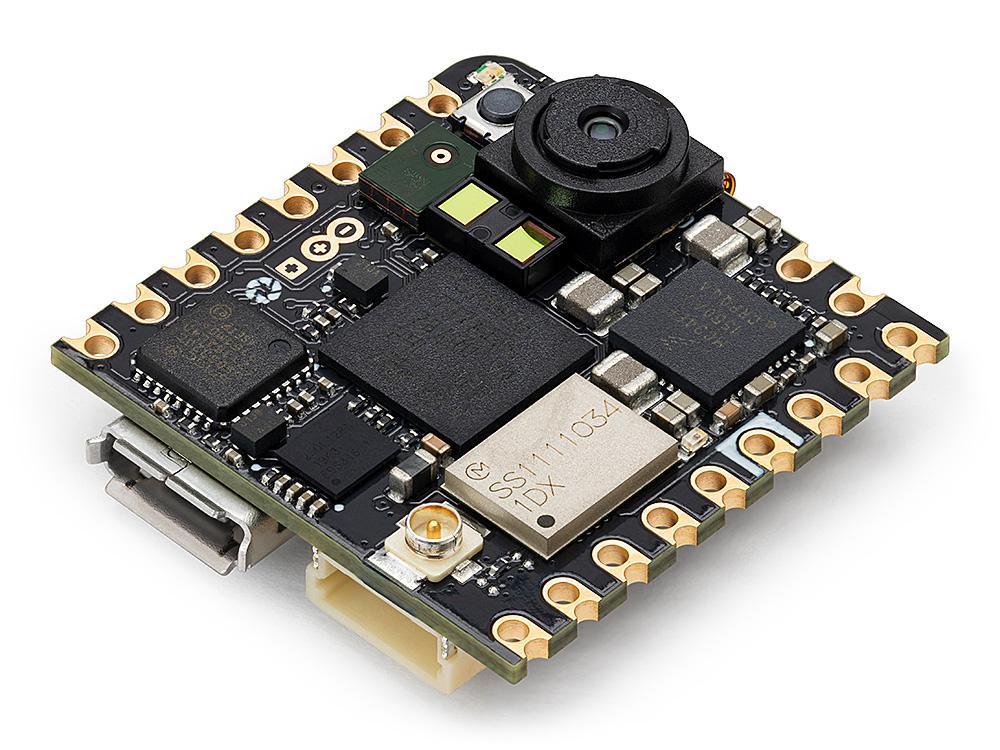

Arduino Nicla Vision (ABX00051)
